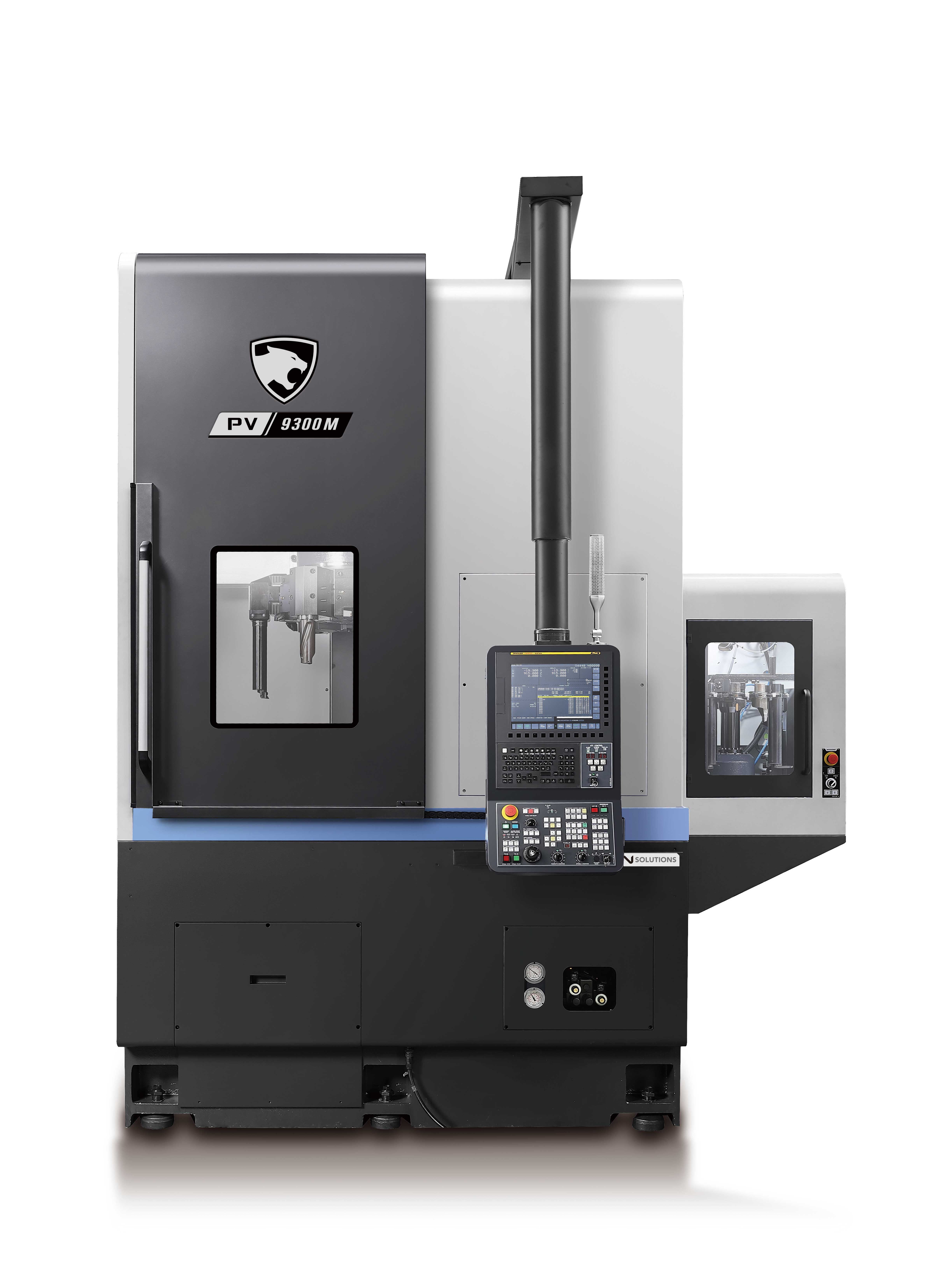

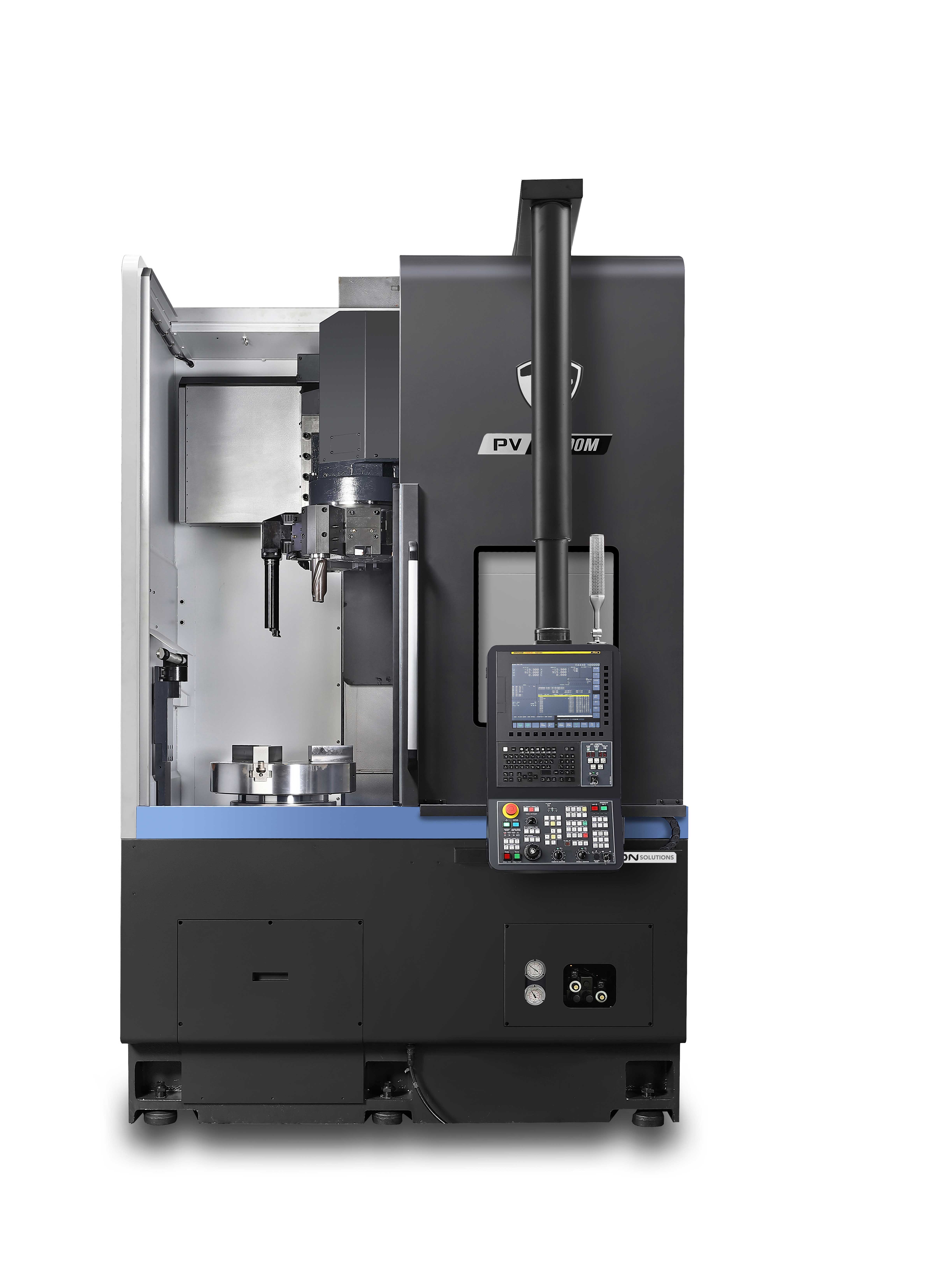

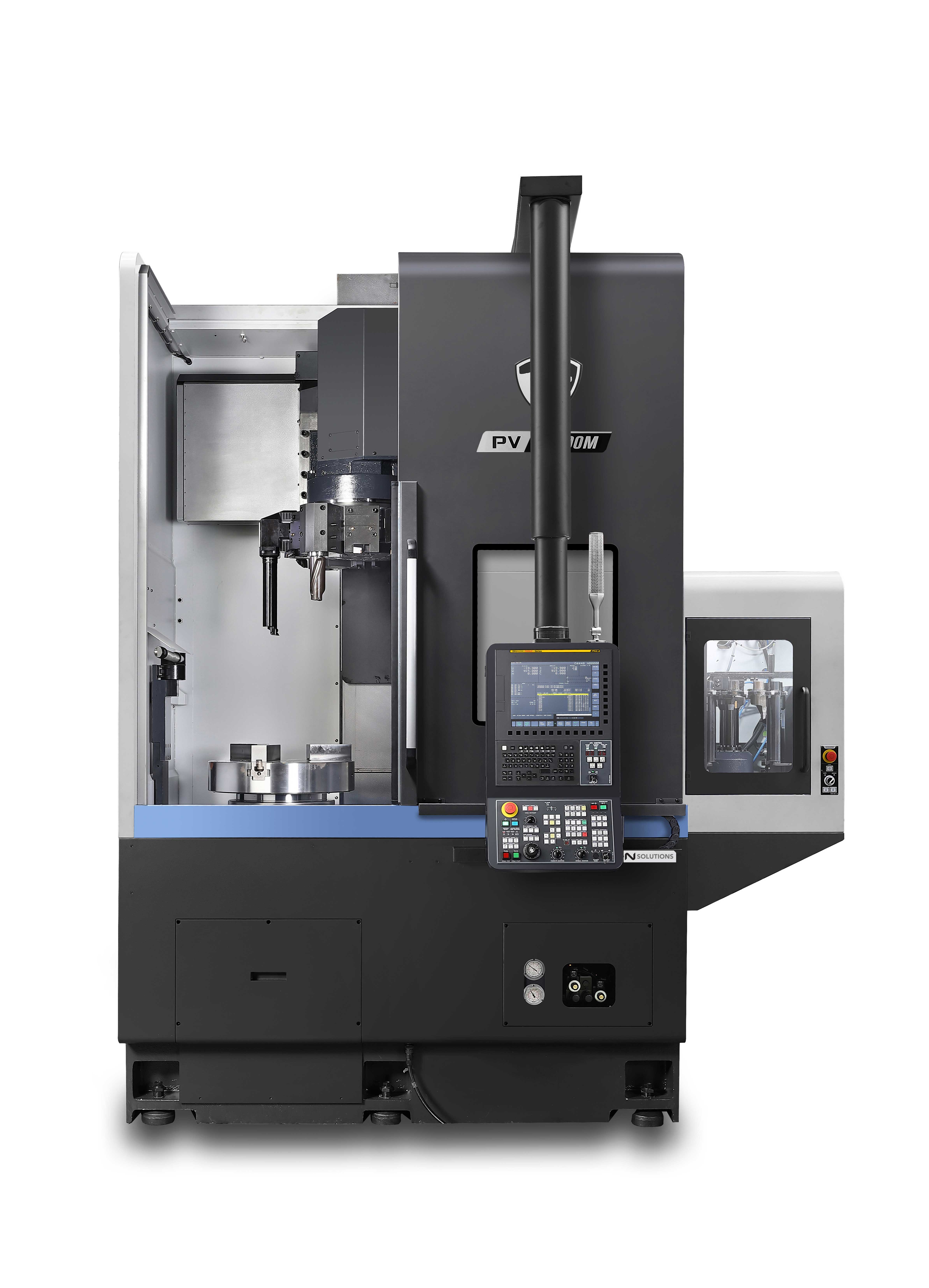

    PV 9300MR

    • Exceptional Stability and Rigidity: Both models feature robust construction with integral box guideways and reinforced bed frames, ensuring high stability and precision in heavy-duty machining.
    • Enhanced Productivity: The PUMA V8300/9300 Series offers the largest turning capacity in its class, significantly boosting productivity and profitability.
    • Compact Efficiency: The PUMA V400's compact footprint allows for efficient space utilization without compromising on performance and accuracy.

    Highlights

    • Travels - X Axis Travel distance (mm): 485
    • Travels - Y Axis Travel distance (mm):
    • Travels - Z Axis Travel distance (mm): 890
    • Chuck size (mm): 609
    • Max. Turning Diameter (mm): 930
    • Max. Turning Length (mm): 801

    Control System

      Fanuc

    Series description

    The PUMA V400 and PUMA V8300/9300 Series are high-performance vertical turning centers designed for heavy-duty machining. The compact PUMA V400 offers powerful spindle drives, Meehanite casting, and integral box guideway construction for exceptional stability and accuracy. The PUMA V8300/9300 Series, with 15" to 32" chuck sizes, features a column-integrated box guideway and reinforced bed frame, providing robust structure and the largest turning capacity in its class for enhanced productivity and profitability.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 485
    Travels - Y Axis Travel distance (mm)
    Travels - Z Axis Travel distance (mm) 890
    Travels - X Axis Rapid Traverse (m/min) 20
    Travels - Z Axis Rapid Traverse (m/min) 20

    Feed rates

    Feed rate - Y Axis Rapid Traverse

    Table

    Table Length (mm)
    Table Width (mm)
    Max. Workpiece weight (kg)
    Pallet Size (mm)
    Rotary Table Diameter (mm)
    Max. Table weight (kg)

    Workpiece capacity

    Max. Workpiece Diameter (mm)
    Max. Workpiece Height (mm)
    Max. Workpiece weight (kg)

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 609
    Max. Turning Diameter (mm) 930
    Max. Turning Length (mm) 801
    Bar Capacity (mm) n/a
    Table to spindle nose

    Main spindle

    Main Spindle Max. Speed 1800
    Main Spindle Max. Power 45
    Main Spindle Max. Torque 4443
    Tool Taper (ISO)

    Turret

    Rotary Tool (r/min) 4000

    Dimensions

    Length (mm) 2144
    Height (mm) 3650
    Width (mm) 3065
    Weight (kg) 11500

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
