Multi-Tasking Turning Centers

30 products

Multi-Tasking Machines: The All-in-One Solution

For many companies, a CNC multi-tasking machine is an ideal choice, particularly for production processes requiring multiple machining tasks without the need for manual tool changes or moving workpieces between different machines.

A multi-tasking machine typically builds upon the capabilities of a horizontal lathe, enabling it to perform turning, milling, drilling, and more. Essentially, one machine can handle several processes that would otherwise require multiple setups on different machines.

This makes CNC multi-tasking machines an excellent option for businesses aiming to optimize and streamline production. These machines can complete complex part machining in a single operation, reducing labor costs and minimizing investment in additional equipment, leading to a lower cost per part produced.

Sort by

General

Control System

Series

Travels

Feed rates

Main spindle

Capacity

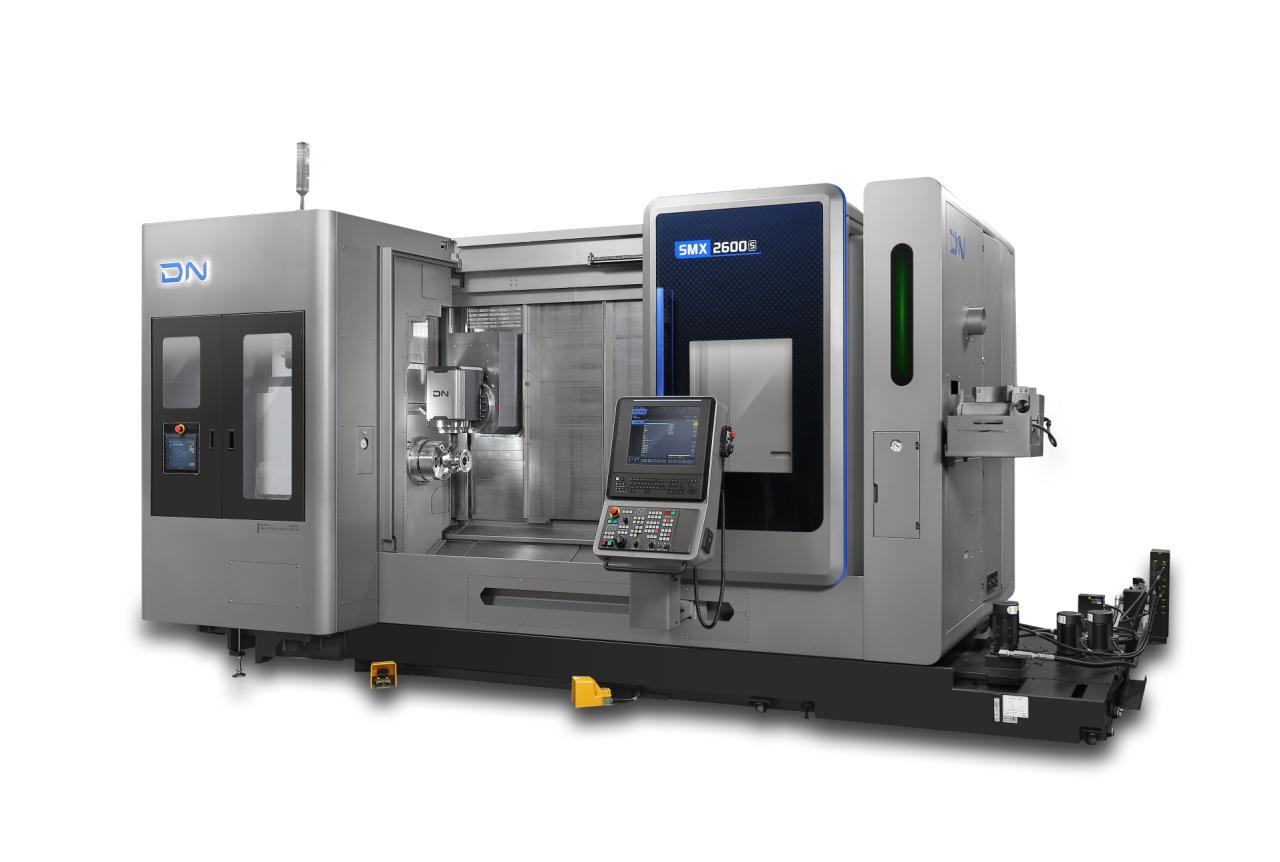

PUMA SMX2600
PUMA SMX2600

PUMA SMX2600

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX2600
PUMA SMX2600

PUMA SMX2600

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX2600S
PUMA SMX2600S

PUMA SMX2600S

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX2600S
PUMA SMX2600S

PUMA SMX2600S

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540

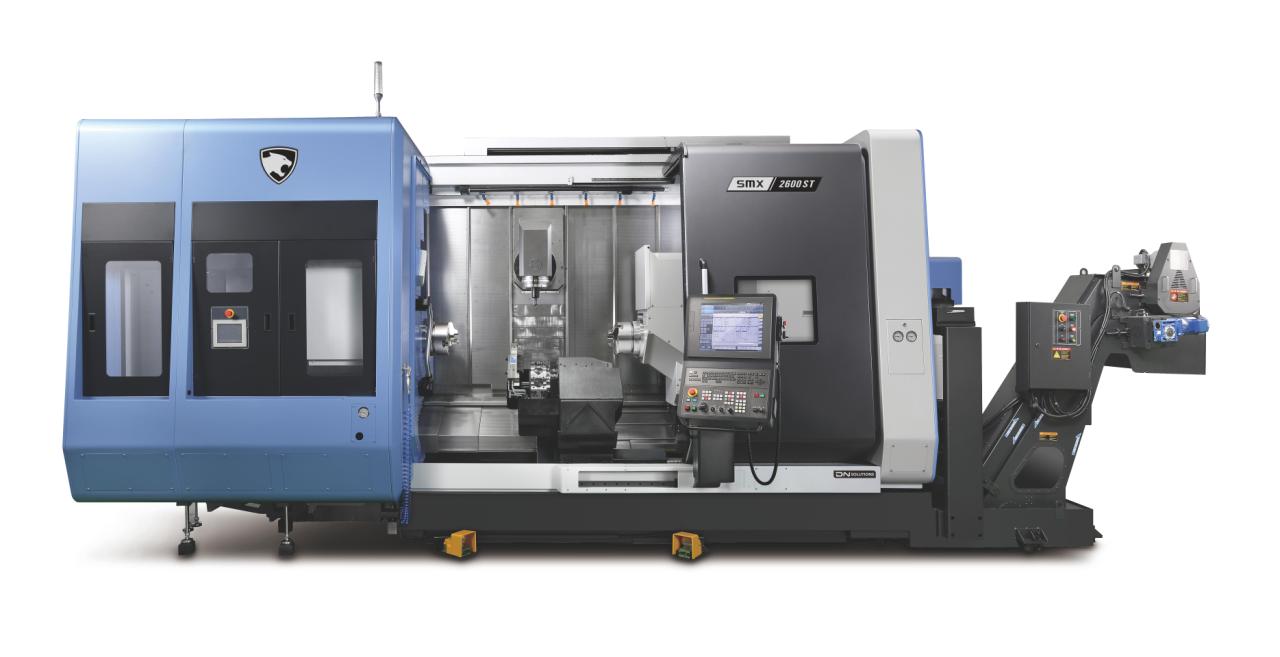

PUMA SMX2600ST
PUMA SMX2600ST

PUMA SMX2600ST

  • Travels - X Axis Travel distance (mm): 695
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX2600ST
PUMA SMX2600ST

PUMA SMX2600ST

  • Travels - X Axis Travel distance (mm): 695
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX3100
PUMA SMX3100

PUMA SMX3100

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX3100
PUMA SMX3100

PUMA SMX3100

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX3100L
PUMA SMX3100L

PUMA SMX3100L

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 2585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 2540
PUMA SMX3100LS
PUMA SMX3100LS

PUMA SMX3100LS

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 2585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 2540
PUMA SMX3100LS
PUMA SMX3100LS

PUMA SMX3100LS

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 2585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 2540
PUMA SMX3100S
PUMA SMX3100S

PUMA SMX3100S

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540
PUMA SMX3100S
PUMA SMX3100S

PUMA SMX3100S

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540

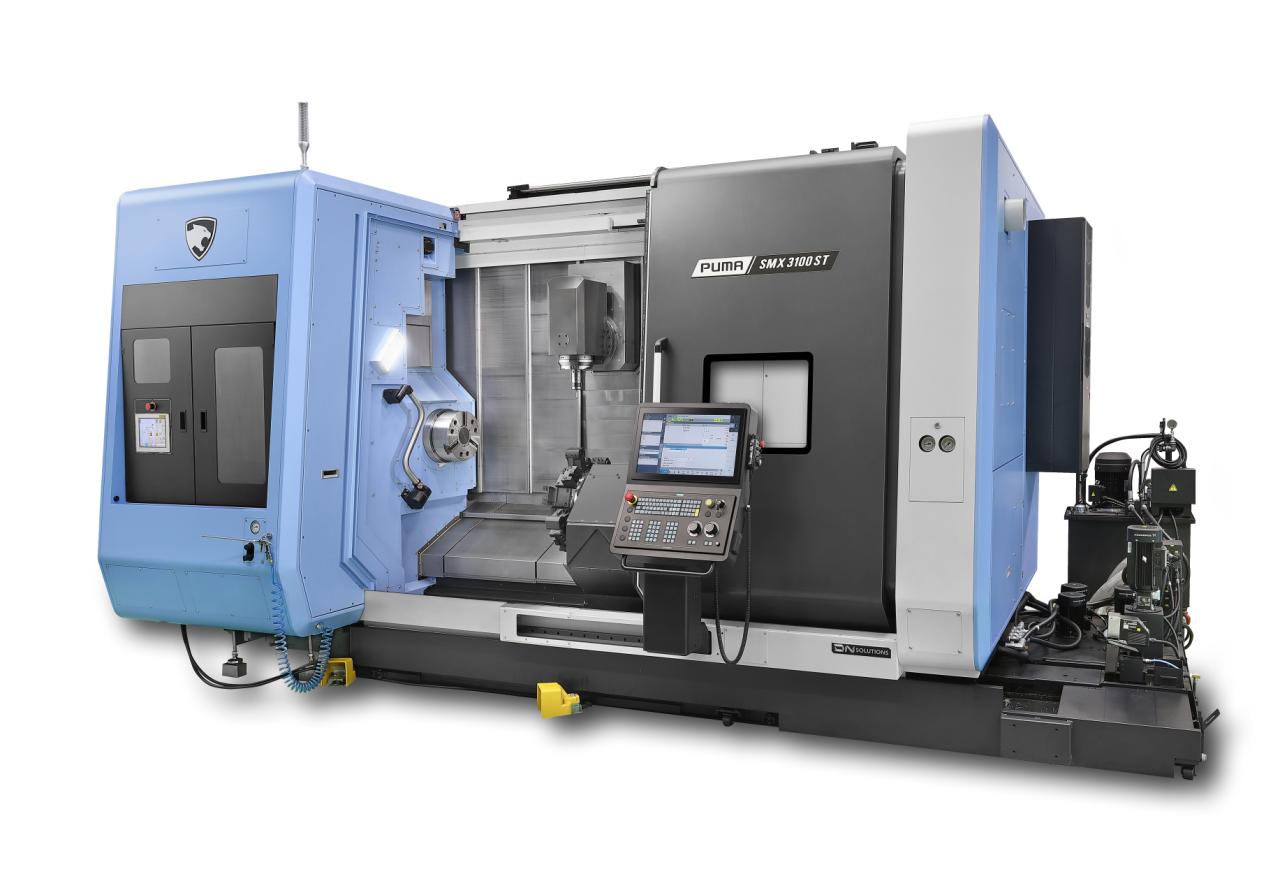

PUMA SMX3100ST
PUMA SMX3100ST

PUMA SMX3100ST

  • Travels - X Axis Travel distance (mm): 695
  • Travels - Y Axis Travel distance (mm): 300
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 315
  • Max. Turning Diameter (mm): 660
  • Max. Turning Length (mm): 1540

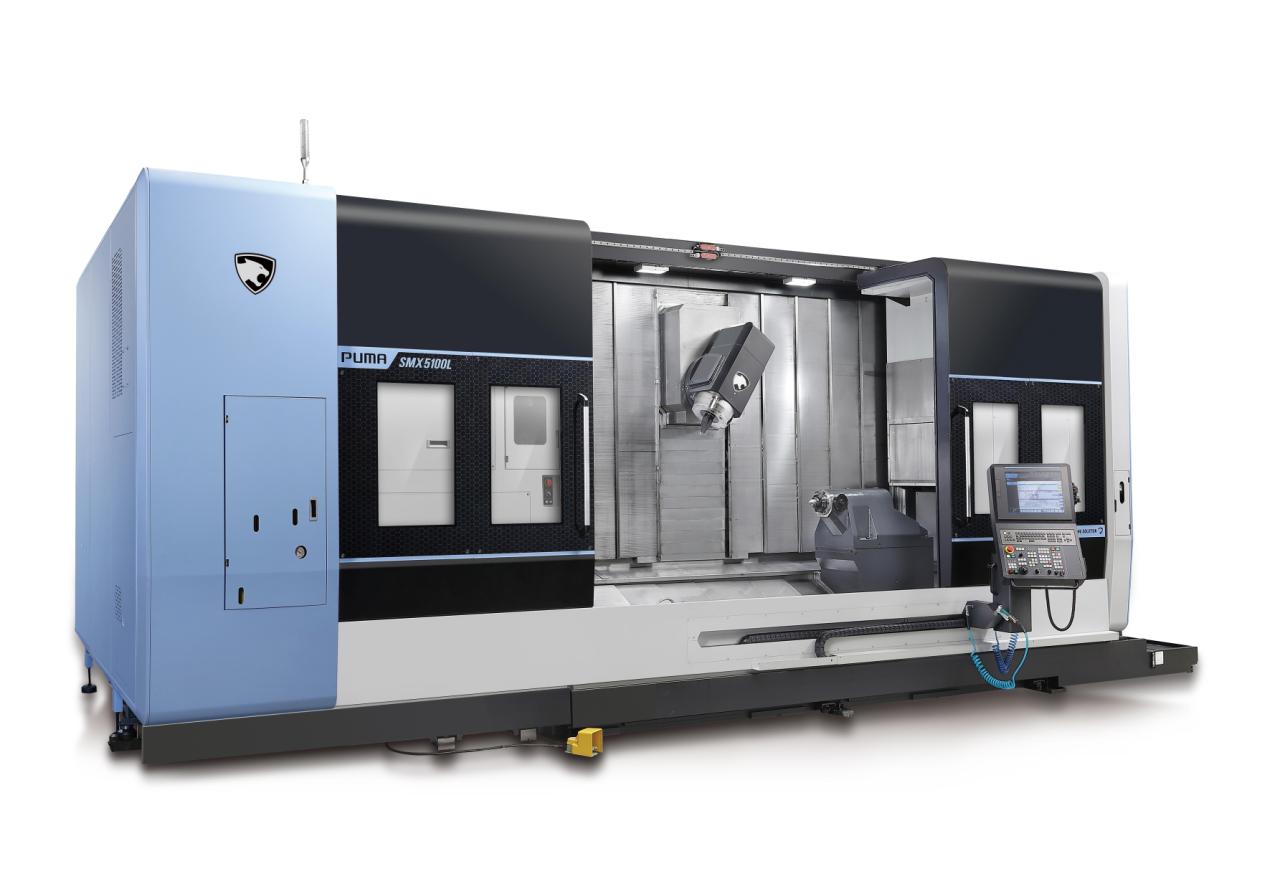

PUMA SMX5100L
PUMA SMX5100L

PUMA SMX5100L

PUMA SMX5100LB
PUMA SMX5100LB

PUMA SMX5100LB

  • Travels - X Axis Travel distance (mm): 910
  • Travels - Y Axis Travel distance (mm): 520
  • Travels - Z Axis Travel distance (mm): 3215
  • Chuck size (mm): 530
  • Max. Turning Diameter (mm): 830
  • Max. Turning Length (mm): 3050
PUMA SMX5100LS
PUMA SMX5100LS

PUMA SMX5100LS

PUMA SMX5100LSB
PUMA SMX5100LSB

PUMA SMX5100LSB

PUMA SMX5100XL
PUMA SMX5100XL

PUMA SMX5100XL

PUMA SMX5100XLB
PUMA SMX5100XLB

PUMA SMX5100XLB

  • Travels - X Axis Travel distance (mm): 910
  • Travels - Y Axis Travel distance (mm): 520
  • Travels - Z Axis Travel distance (mm): 4215
  • Chuck size (mm): 530
  • Max. Turning Diameter (mm): 830
  • Max. Turning Length (mm): 4070
SMX 2100
SMX 2100

SMX 2100

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 203,2
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100B
SMX 2100B

SMX 2100B

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100L
SMX 2100L

SMX 2100L

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1540
SMX 2100LS
SMX 2100LS

SMX 2100LS

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1540
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1540
SMX 2100LST
SMX 2100LST

SMX 2100LST

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1585
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1540

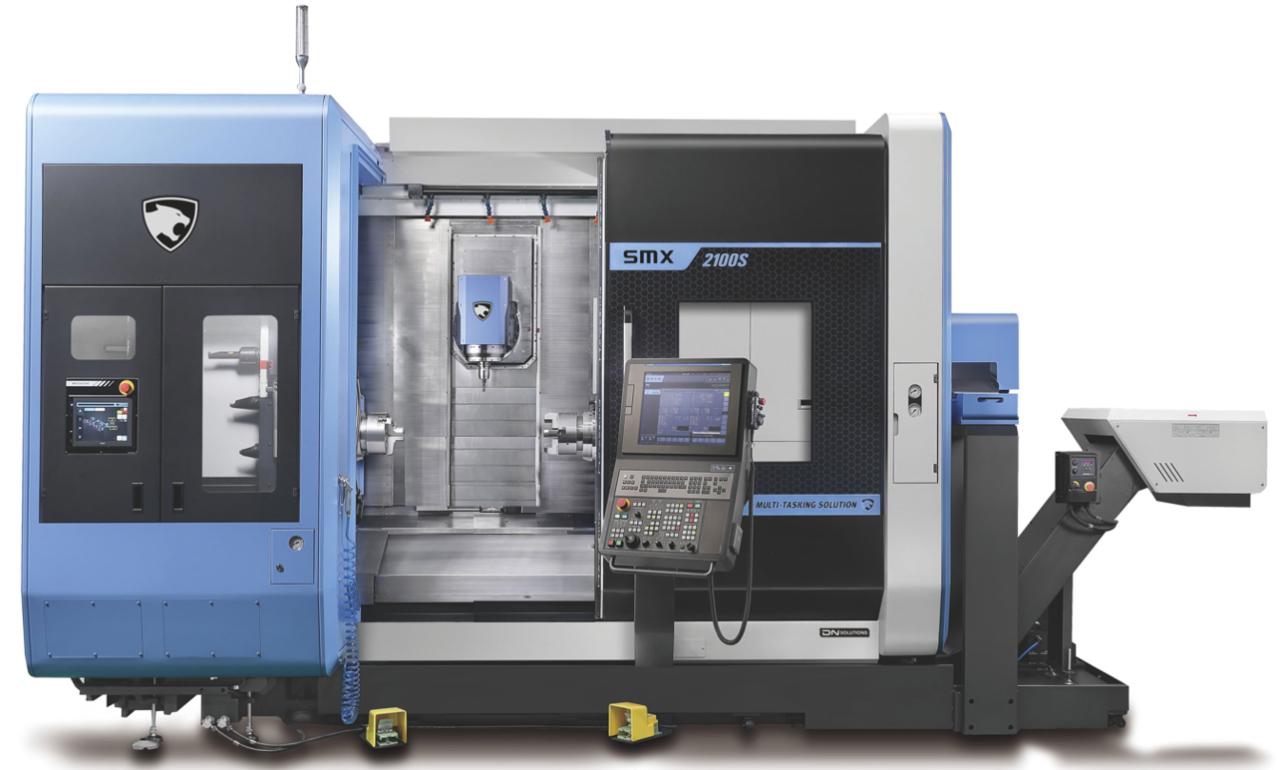

SMX 2100S
SMX 2100S

SMX 2100S

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100SB
SMX 2100SB

SMX 2100SB

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100ST
SMX 2100ST

SMX 2100ST

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100ST
SMX 2100ST

SMX 2100ST

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
SMX 2100STB
SMX 2100STB

SMX 2100STB

  • Travels - X Axis Travel distance (mm): 630
  • Travels - Y Axis Travel distance (mm): 210
  • Travels - Z Axis Travel distance (mm): 1085
  • Chuck size (mm): 255
  • Max. Turning Diameter (mm): 600
  • Max. Turning Length (mm): 1040
30 out of 30 products

Pros and Cons of Multi-Tasking Machines

While CNC multi-tasking machines offer significant efficiency benefits, there are some trade-offs compared to using dedicated lathes or milling machines.

A multi-tasking machine combines the functions of a lathe and a milling machine, with a spindle mounted on the lathe to allow both turning and milling, providing great flexibility.

One major advantage of multi-tasking machines is their large tool magazine, enabling quick response to urgent orders with minimal preparation time.

However, to fully leverage a multi-tasking machine, operators must be skilled in both milling and turning. Proper training is essential, as the machine's effectiveness depends on the expertise of those who operate it.

This flexibility does come with some trade-offs in stability. While generally not an issue in everyday use, multi-tasking machines may not handle the most demanding cutting operations as well as a dedicated lathe or mill. Whether a multi-tasking machine is the right choice depends on the specific requirements of your machining processes and the demands placed on your equipment.
