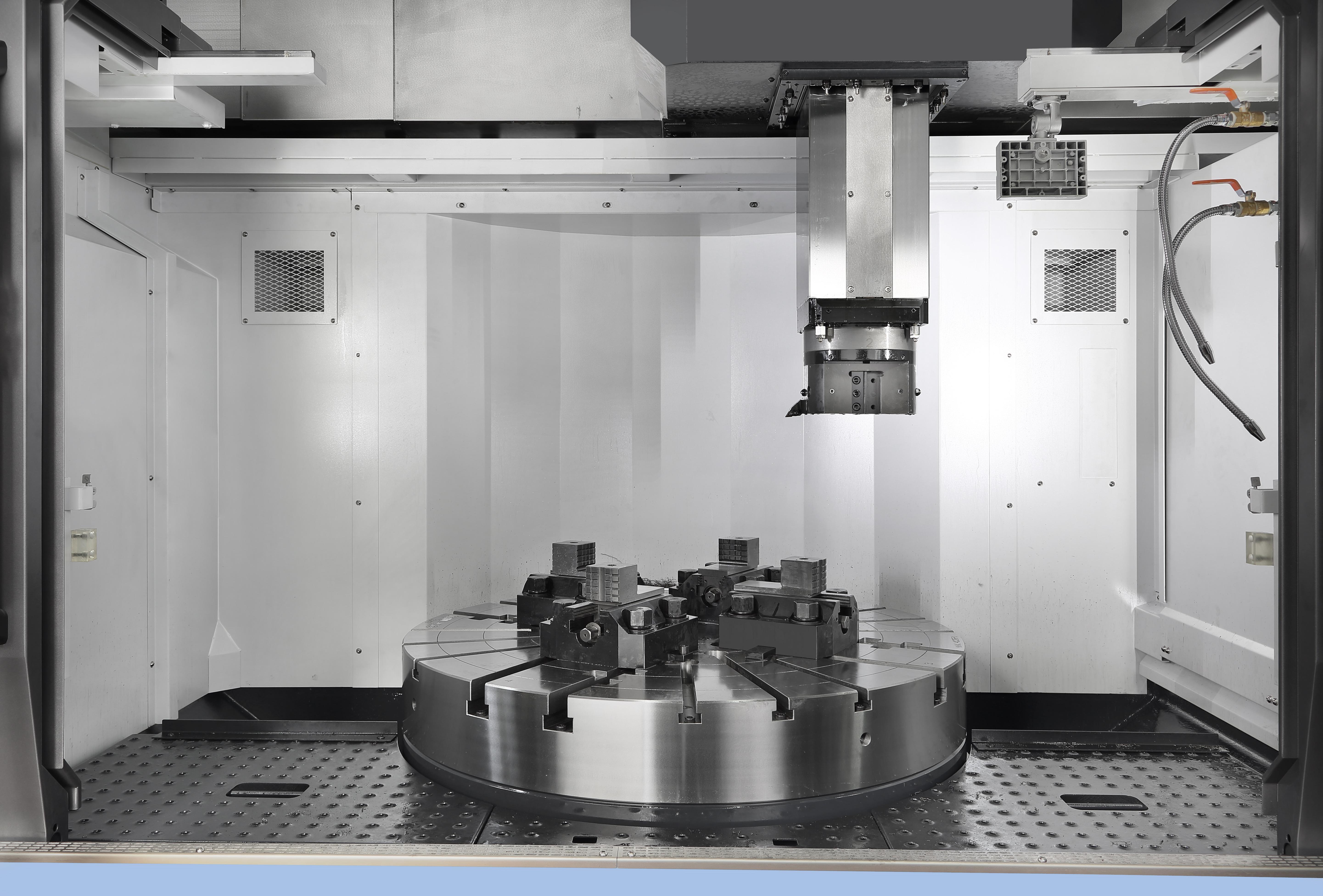

    PUMA VTR1216M

    • Largest Table Diameter: Accommodates a wide range of workpieces with table diameters up to 2500mm (98.4 inches).
    • Enhanced Stability: Rigid design and wide-column structure provide superior stability during heavy-duty operations.
    • High Productivity: Optimized for efficient, high-volume machining with reliable performance and durability.

    Highlights

    • Travels - X Axis Travel distance (mm): 205
    • Travels - Z Axis Travel distance (mm): 340
    • Chuck size (mm): 203,2
    • Max. Turning Diameter (mm): 350
    • Max. Turning Length (mm): 330

    Control System

      Fanuc

    Series description

    The PUMA VTR Series features the largest table diameter in its class, ranging from Ø1250mm to Ø2500mm (50.0 to 98.4 inches). These machines are designed for maximum stability and productivity, with a robust, wide-column structure that ensures exceptional rigidity and reliable performance in demanding machining applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 205
    Travels - Z Axis Travel distance (mm) 340
    Travels - X Axis Rapid Traverse (m/min) 30
    Travels - Z Axis Rapid Traverse (m/min) 36

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 203,2
    Max. Turning Diameter (mm) 350
    Max. Turning Length (mm) 330
    Bar Capacity (mm) 65

    Main spindle

    Main Spindle Max. Speed 4500
    Main Spindle Max. Power 15
    Main Spindle Max. Torque 169

    Turret

    Rotary Tool (r/min) 4500
    Turret - No. of tool station 12

    Dimensions

    Length (mm) 2350
    Height (mm) 1693
    Width (mm) 1595
    Weight (kg) 3100
