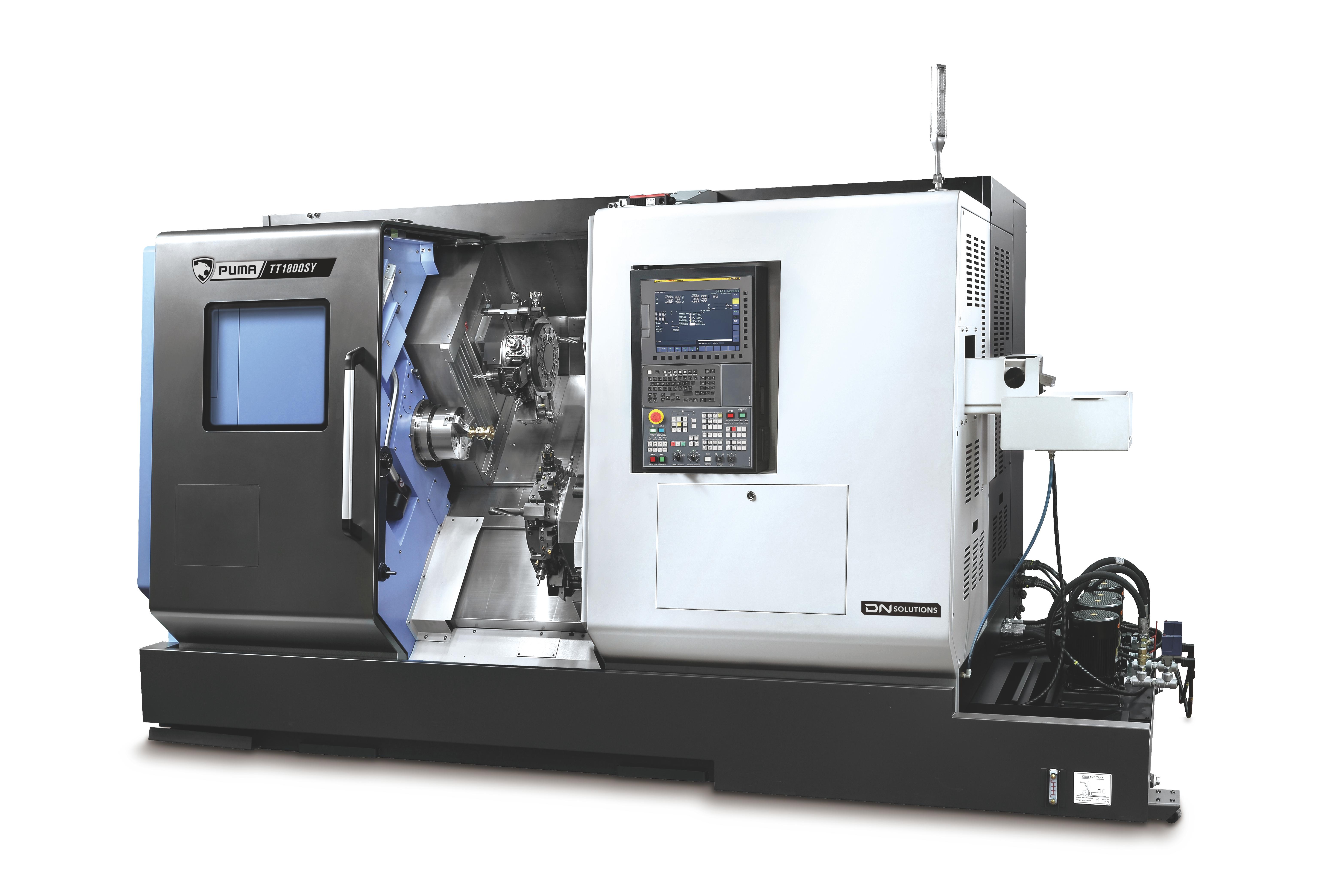

    PUMA TT1800SY

    TWIN-SPINDLE, TWIN-TURRET TURNING CENTERS WITH Y-AXES

    • Dual Spindle Efficiency: Twin opposed spindles with equal power allow simultaneous machining on two faces, significantly increasing productivity.
    • Flexible Machining Capabilities: Equipped with upper/lower turrets and Y-axis functionality, these machines handle complex tasks with precision and efficiency.
    • Automated Operation: Independent spindle processing and automatic workpiece ejection streamline operations, reducing downtime and maximizing throughput.

    Highlights

    • Travels - X Axis Travel distance (mm): 190
    • Travels - Y Axis Travel distance (mm): 100
    • Travels - Z Axis Travel distance (mm): 700
    • Chuck size (mm): 203.2
    • Max. Turning Diameter (mm): 230
    • Max. Turning Length (mm): 230

    Control System

      Fanuc

    Series description

    The PUMA TT1300, TT1800, TT2100, and TT2500 series are high-productivity horizontal turning centers with bar capacities ranging from 42mm to 81mm. These machines are equipped with twin opposed spindles and upper/lower turrets, featuring Y-axis capabilities for simultaneous two-face machining. Both spindles have equal power and capacity, allowing independent operation and automatic workpiece ejection, significantly enhancing productivity. Favored globally, the PUMA TT series is renowned for its best-in-class performance and reliability, making it one of DN Solutions' top-selling products.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 190
    Travels - Y Axis Travel distance (mm) 100
    Travels - Z Axis Travel distance (mm) 700
    Travels - X Axis Rapid Traverse (m/min) 20
    Travels - Y Axis Rapid Traverse (m/min) 15
    Travels - Z Axis Rapid Traverse (m/min) 40

    Tool storage capacity

    Machining center - No. of tool station 24

    Capacity

    Chuck size (mm) 203.2
    Max. Turning Diameter (mm) 230
    Max. Turning Length (mm) 230
    Bar Capacity (mm) 65

    Main spindle

    Main Spindle Max. Speed 5000
    Main Spindle Max. Power 22
    Main Spindle Max. Torque 208

    Turret

    Rotary Tool (r/min) 6000
    Turret - No. of tool station 24

    Dimensions

    Length (mm) 3905
    Height (mm) 2080
    Width (mm) 2250
    Weight (kg) 8800
