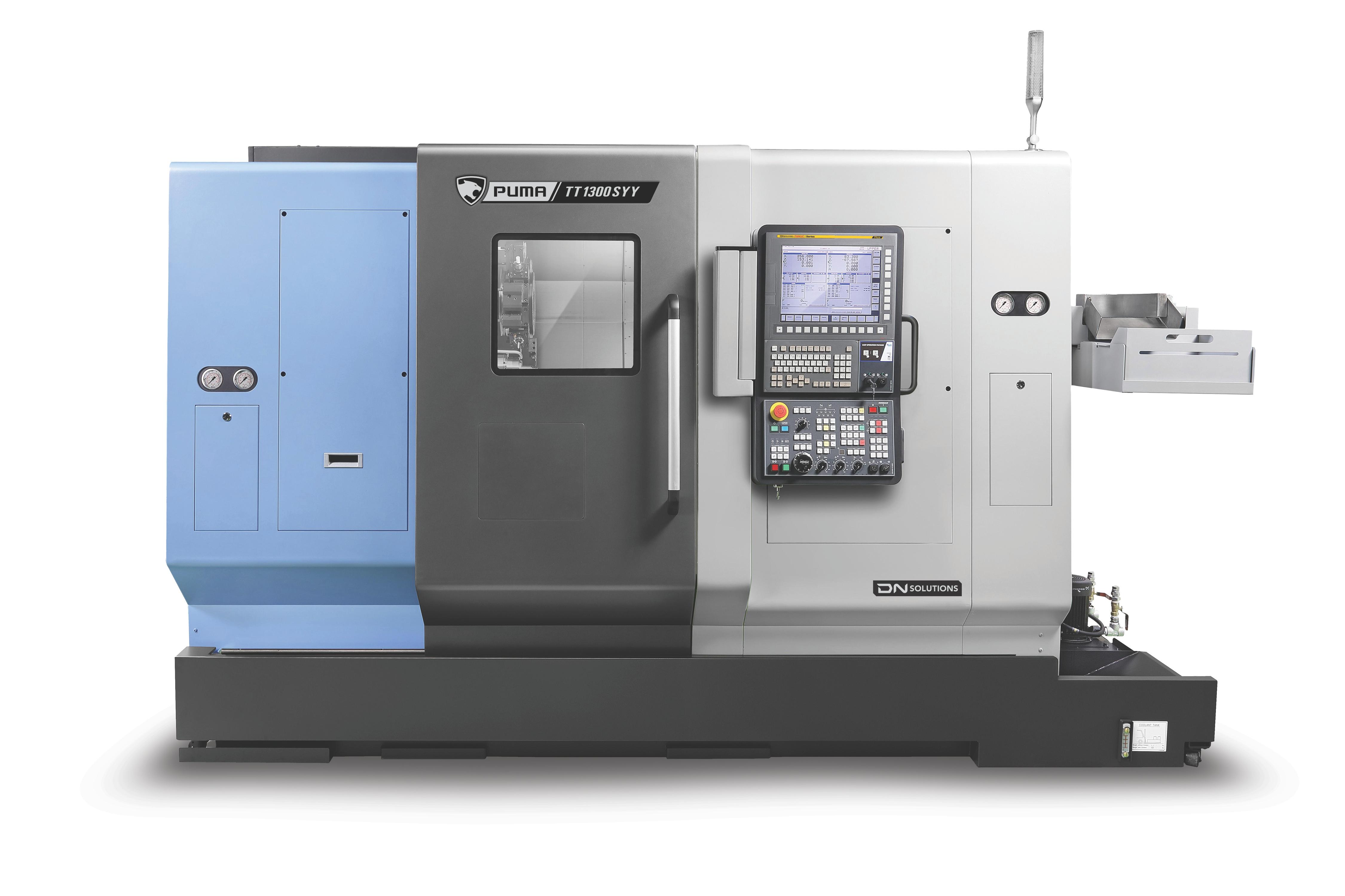

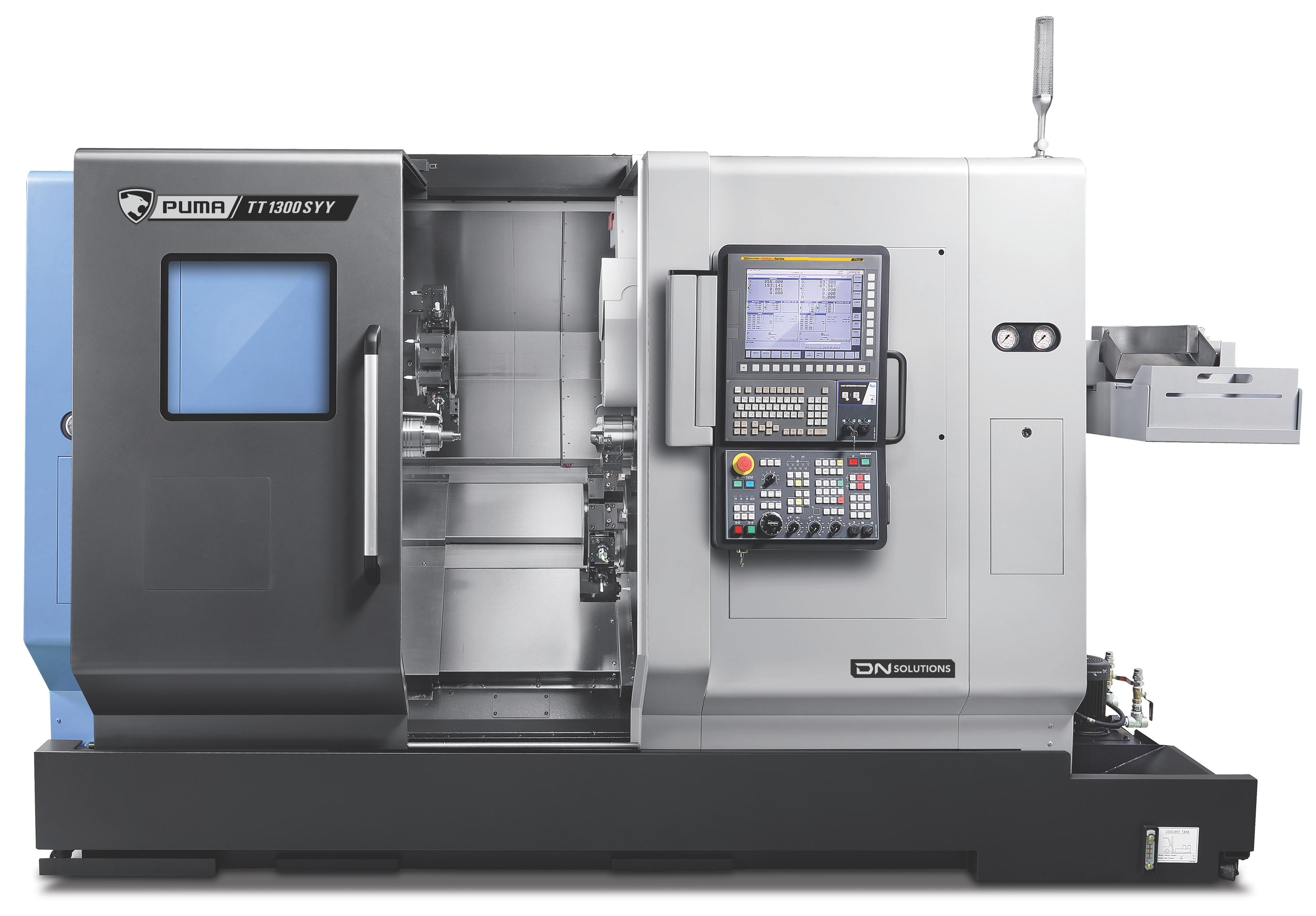

    PUMA TT1300SYY

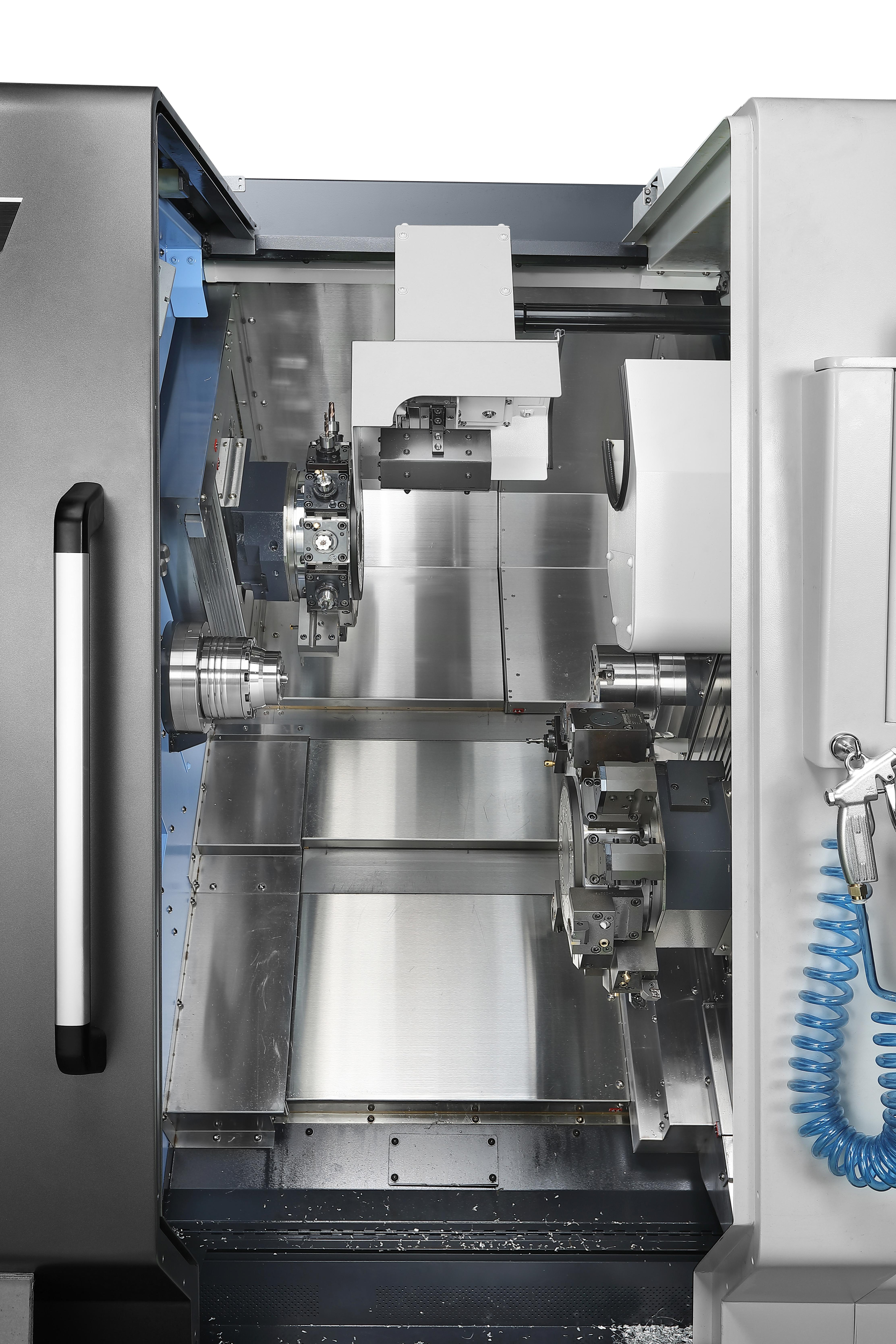

    • Dual Spindle Efficiency: Twin opposed spindles with equal power allow simultaneous machining on two faces, significantly increasing productivity.

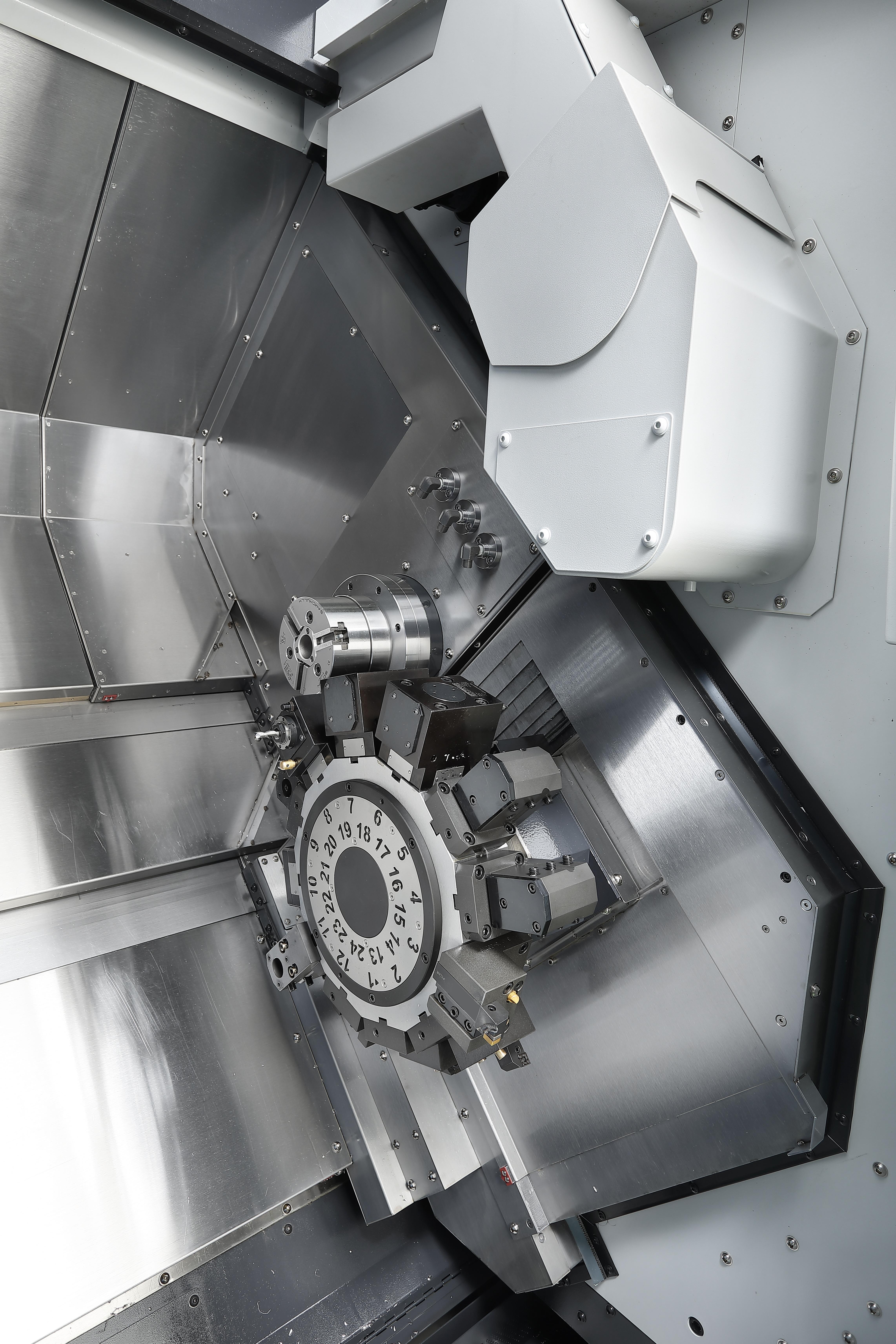

    • Flexible Machining Capabilities: Equipped with upper/lower turrets and Y-axis functionality, these machines handle complex tasks with precision and efficiency.

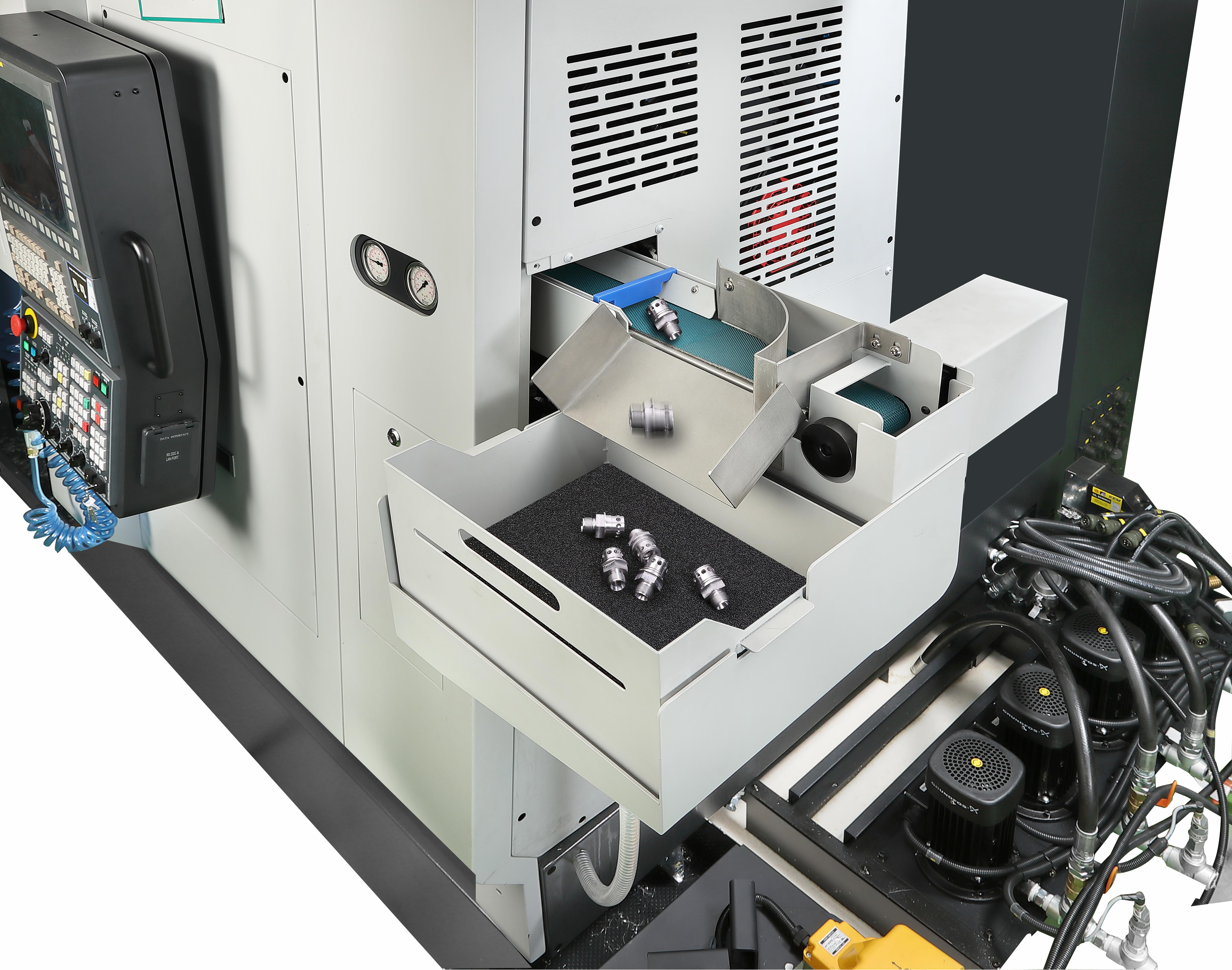

    • Automated Operation: Independent spindle processing and automatic workpiece ejection streamline operations, reducing downtime and maximizing throughput.

    Highlights

    • Travels - X Axis Travel distance (mm): 135
    • Travels - Y Axis Travel distance (mm): 80
    • Travels - Z Axis Travel distance (mm): 530
    • Chuck size (mm): 127
    • Max. Turning Diameter (mm): 175
    • Max. Turning Length (mm): 120

    Control System

      Fanuc

    Series description

    The PUMA TT1300, TT1800, TT2100, and TT2500 series are high-productivity horizontal turning centers with bar capacities ranging from 42mm to 81mm. These machines are equipped with twin opposed spindles and upper/lower turrets, featuring Y-axis capabilities for simultaneous two-face machining. Both spindles have equal power and capacity, allowing independent operation and automatic workpiece ejection, significantly enhancing productivity. Favored globally, the PUMA TT series is renowned for its best-in-class performance and reliability, making it one of DN Solutions' top-selling products.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    PUMA TT1300SYY
    PUMA TT1300SYY

    Travels

    Travels - X Axis Travel distance (mm) 135
    Travels - Y Axis Travel distance (mm) 80
    Travels - Z Axis Travel distance (mm) 530
    Travels - X Axis Rapid Traverse (m/min) 30
    Travels - Y Axis Rapid Traverse (m/min) 15
    Travels - Z Axis Rapid Traverse (m/min) 40

    Feed rates

    Feed rate - X Axis Rapid Traverse 30
    Feed rate - Y Axis Rapid Traverse 15
    Feed rate - Z Axis Rapid Traverse 40

    Tool storage capacity

    Machining center - No. of tool station 24

    Capacity

    Chuck size (mm) 127
    Max. Turning Diameter (mm) 175
    Max. Turning Length (mm) 120
    Bar Capacity (mm) 42

    Main spindle

    Main Spindle Max. Speed 6000
    Main Spindle Max. Power 11
    Main Spindle Max. Torque 93
    Tool Taper (ISO) BMT 45P

    Turret

    Rotary Tool (r/min) 6000
    Turret - No. of tool station 24

    Dimensions

    Length (mm) 3405
    Height (mm) 2070
    Width (mm) 2300
    Weight (kg) 8000

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
