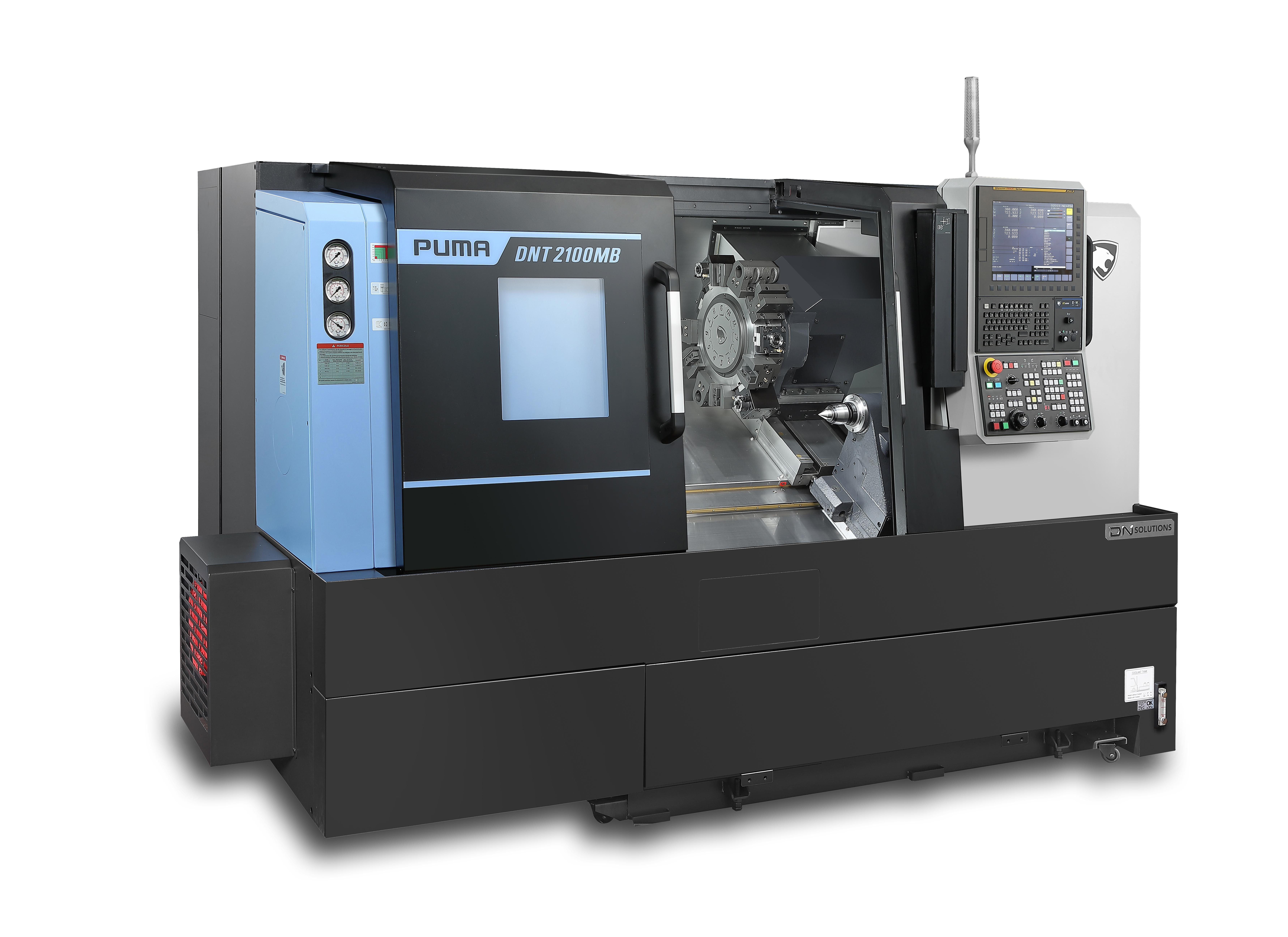

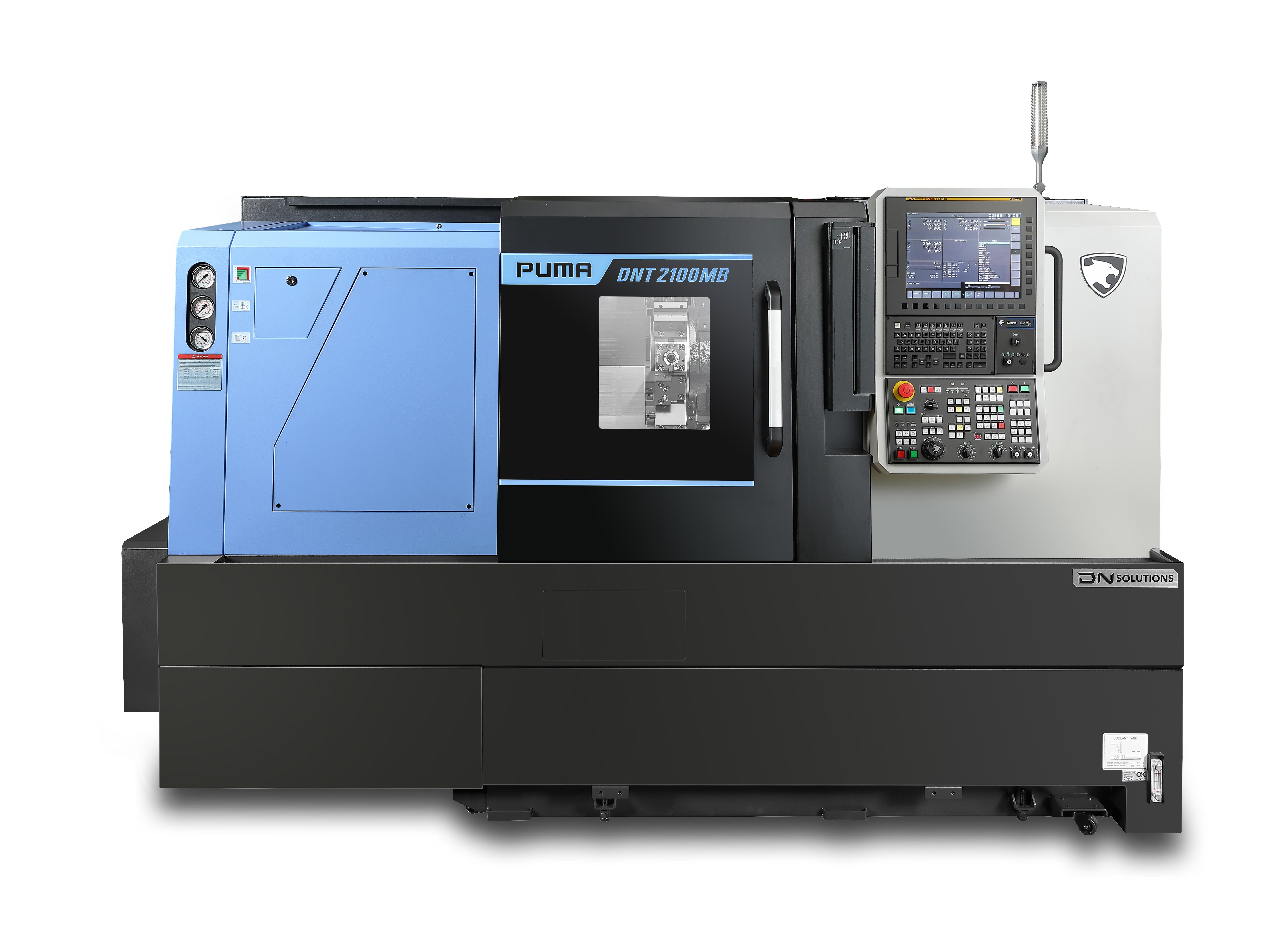

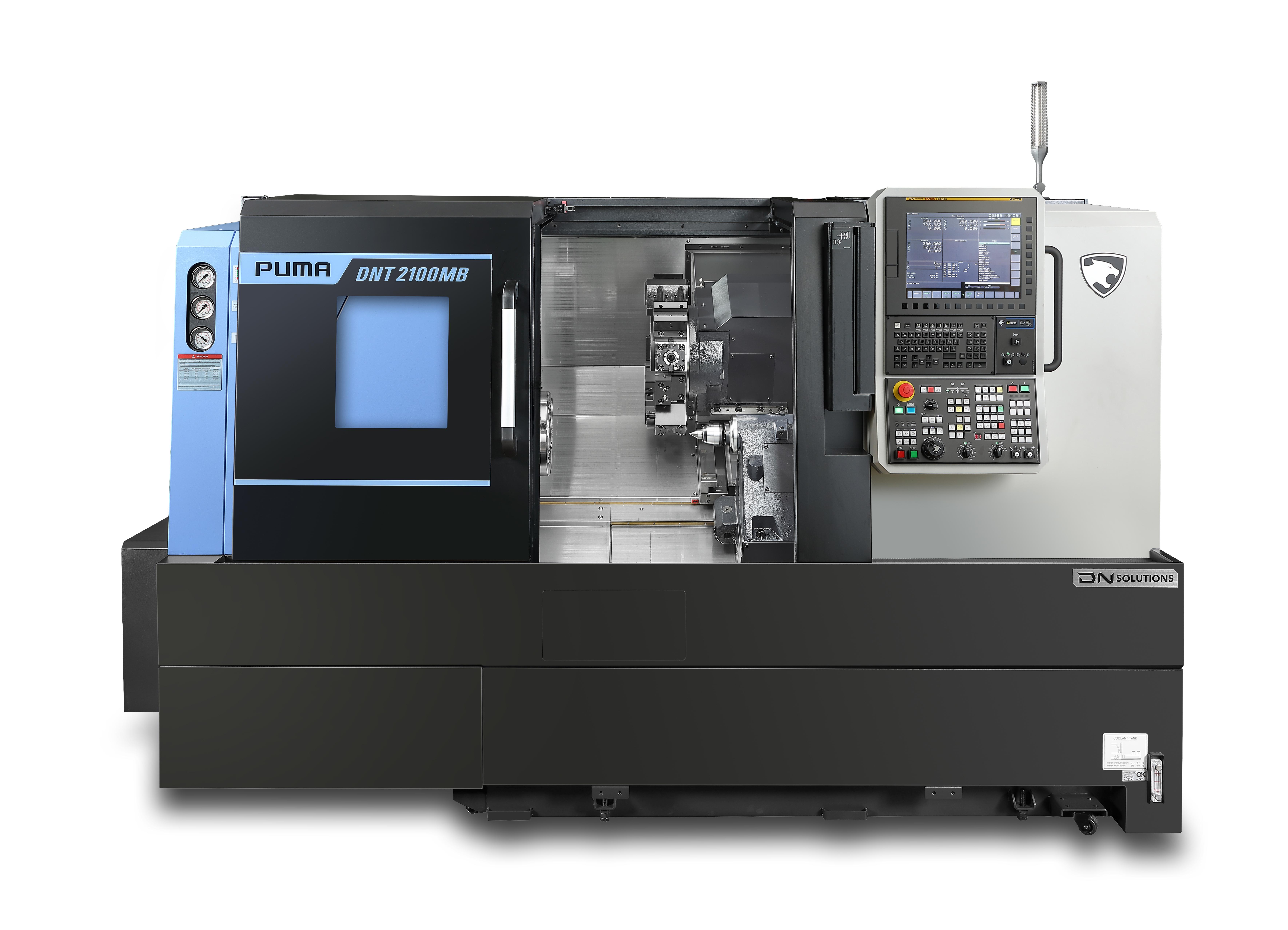

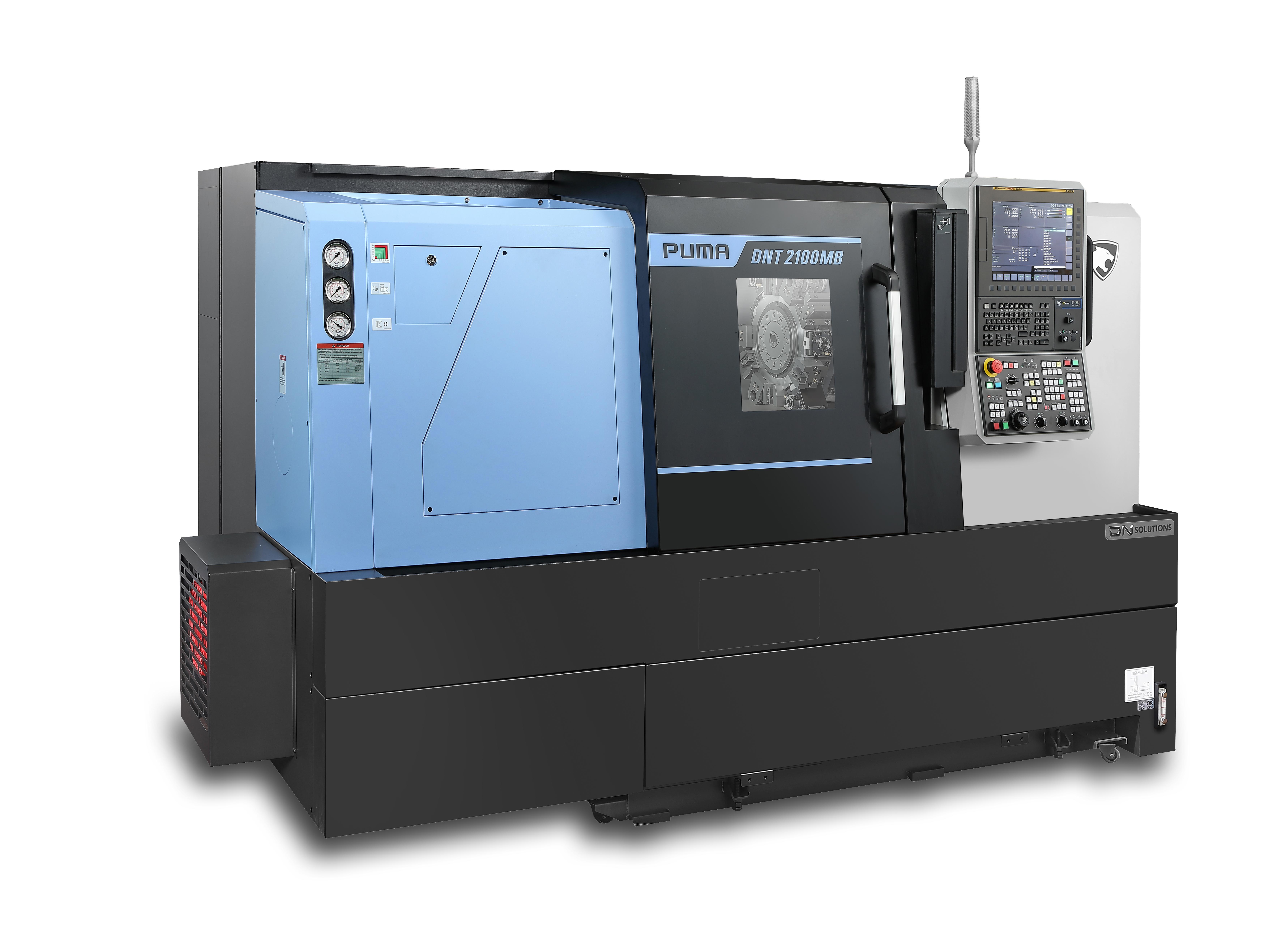

PUMA DNT2100
- Class-Leading Spindle Power: Equipped with the most powerful spindle in their category, enabling efficient and precise machining.

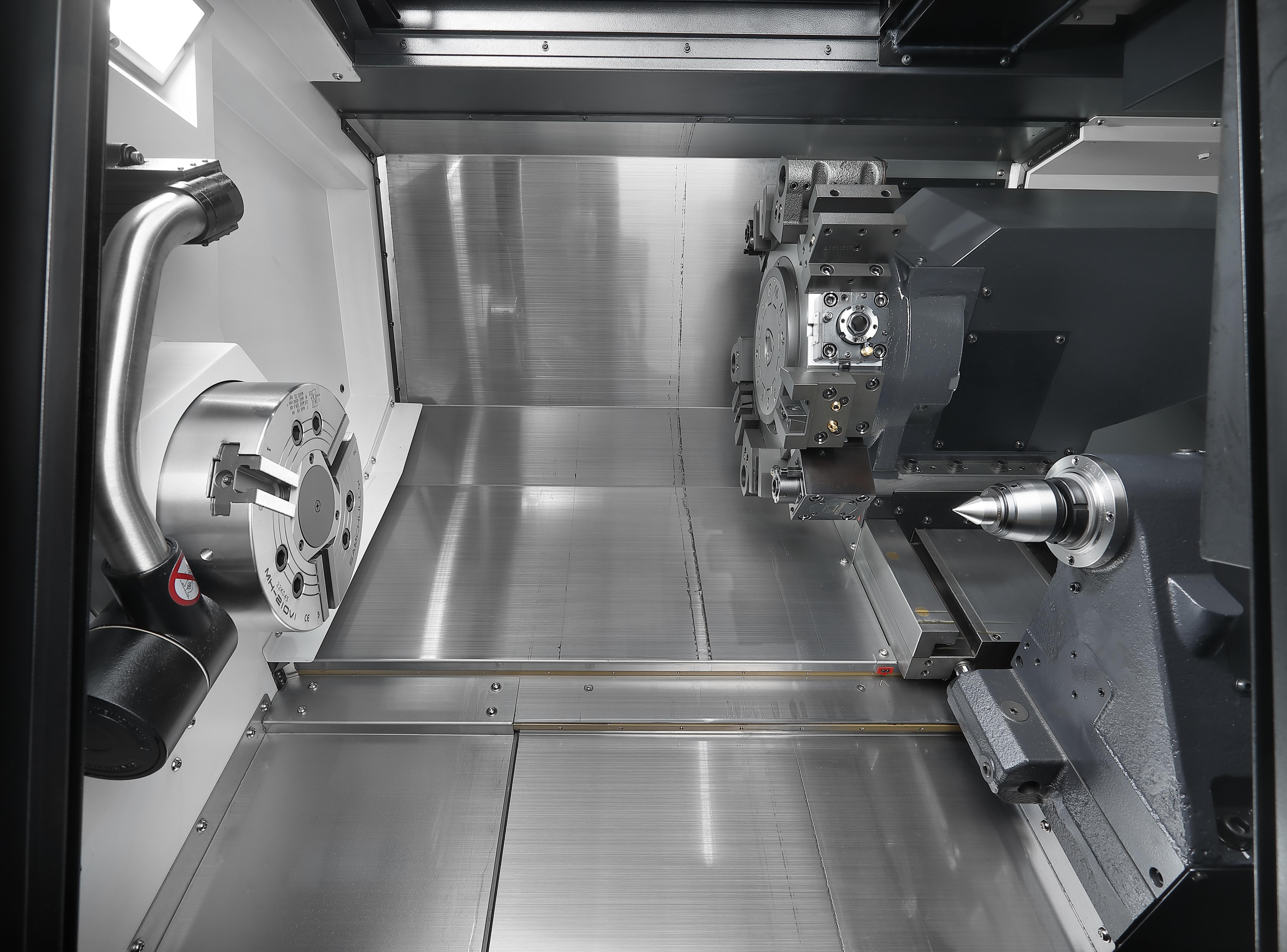

- Innovative Tool Post Design: Ensures powerful and accurate cutting, contributing to exceptional productivity and quality.
- User-Friendly Operation: The ergonomic design simplifies operation and maintenance, reducing downtime and enhancing overall usability.
Highlights
- Travels - X Axis Travel distance (mm): 230
- Travels - Z Axis Travel distance (mm): 580
- Chuck size (mm): 210
- Max. Turning Diameter (mm): 400
- Max. Turning Length (mm): 562
Control System
Series description
|
The PUMA DNT 2100/2600 series consists of 8- and 10-inch turning centers featuring the most powerful spindle in their class. These machines are designed with an innovative tool post concept that ensures powerful and precise machining, enhancing productivity. The user-friendly design facilitates convenient operation and easy maintenance, making them ideal for high-performance machining tasks. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 230 |
|---|---|
| Travels - Z Axis Travel distance (mm) | 580 |
| Travels - X Axis Rapid Traverse (m/min) | 24 |
| Travels - Z Axis Rapid Traverse (m/min) | 30 |
Tool storage capacity
| Machining center - No. of tool station | 12 |
|---|
Capacity
| Chuck size (mm) | 210 |
|---|---|
| Max. Turning Diameter (mm) | 400 |
| Max. Turning Length (mm) | 562 |
| Bar Capacity (mm) | 67 |
Main spindle
| Main Spindle Max. Speed | 4500 |
|---|---|
| Main Spindle Max. Power | 18.5 |
| Main Spindle Max. Torque | 328 |
Dimensions
| Length (mm) | 2945 |
|---|---|
| Height (mm) | 1780 |
| Width (mm) | 1664 |
| Weight (kg) | 3700 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_DNT2100.pdf | 5571 KB | |
|
TOOLING SYSTEM-PUMA-DNT2100-2600.pdf | 750 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
