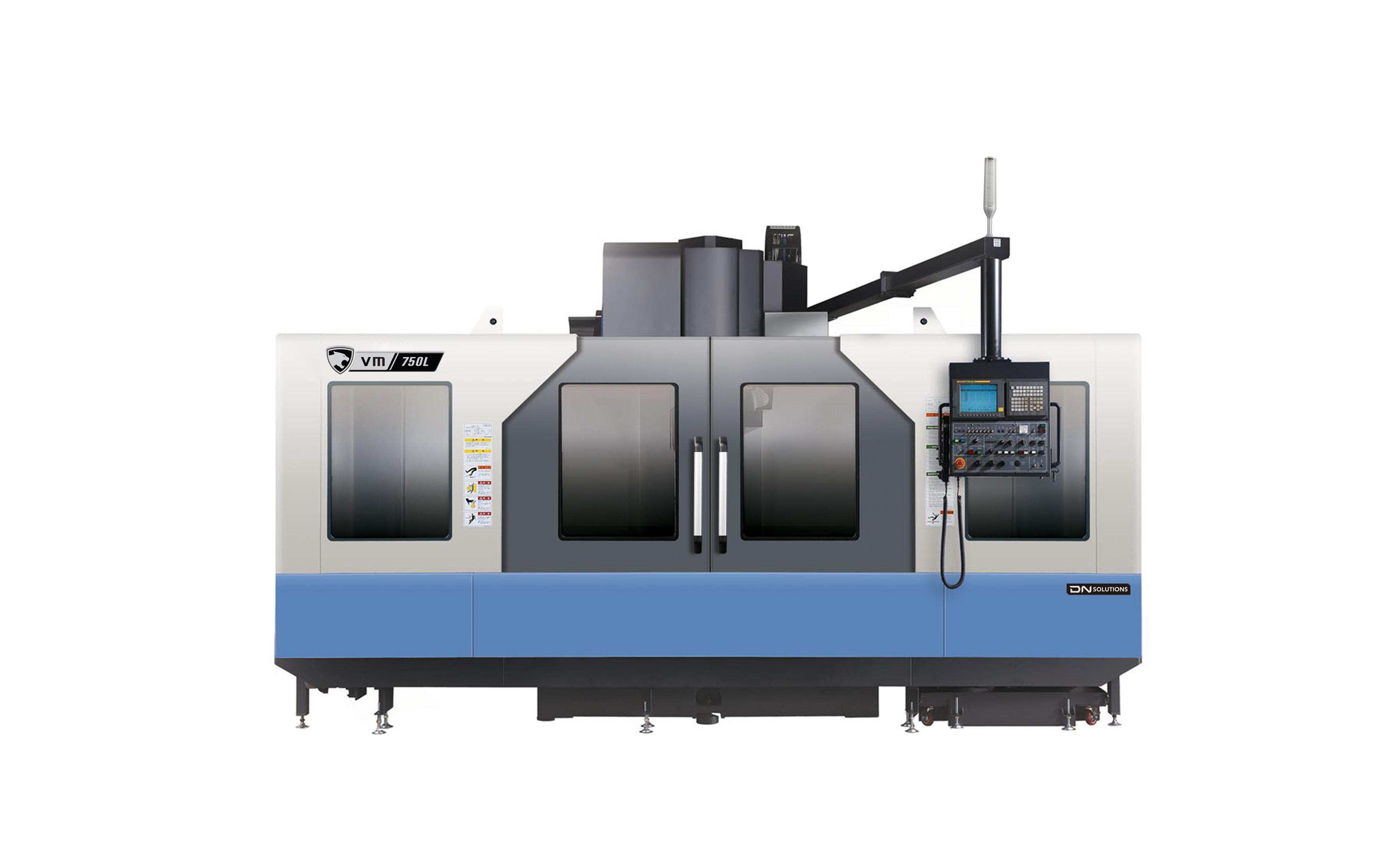

    VM 750

    LARGE, HIGH-SPEED, HIGH-PRECISION MACHINING CENTER

    • Versatile Performance: Designed for both roughing and finishing, with a range of sizes to suit various machining needs.
    • Enhanced Productivity: Low-vibration spindles and user-friendly design improve efficiency and operational convenience.
    • High-Quality Output: Standard features like the BBT40 spindle, effective cooling, and chip removal ensure superior die and mold production.

    Highlights

    • Travels - X Axis Travel distance (mm): 1500
    • Travels - Y Axis Travel distance (mm): 750
    • Travels - Z Axis Travel distance (mm): 800

    Control System

      Fanuc

    Series description

    The VM 750/960/1260 and VM 5400/6500 Series are advanced vertical machining centers featuring low-vibration built-in spindles and the highest stroke in their class. Designed for both roughing and finishing operations, these machines offer a wide range of sizes from Unit 7 to Unit 12. The new design enhances operator convenience and work efficiency, boosting productivity and creating added value.

    Key features, such as the face/taper contact spindle nose (BBT40), an effective spindle cooling system, and an air blower for chip removal during dry cutting, are standard. These features optimize efficiency and competitiveness, making the VM Series ideal for producing high-quality dies and molds.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1500
    Travels - Y Axis Travel distance (mm) 750
    Travels - Z Axis Travel distance (mm) 800

    Feed rates

    Feed rate - X Axis Rapid Traverse 20
    Feed rate - Y Axis Rapid Traverse 20
    Feed rate - Z Axis Rapid Traverse 20

    Table

    Table Length (mm) 1600
    Table Width (mm) 800
    Max. Workpiece weight (kg) 3000

    Workpiece capacity

    Max. Workpiece Height (mm) 940
    Max. Workpiece weight (kg) 3000

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 6000
    Main Spindle Max. Power 15
    Main Spindle Max. Torque 587.6
    Tool Taper (ISO) 50

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 4524
    Height (mm) 3545
    Width (mm) 4650
    Weight (kg) 14000
      Name Download File type
    VM 750
    		VM series.pdf 4323 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
