    DETAIL1966

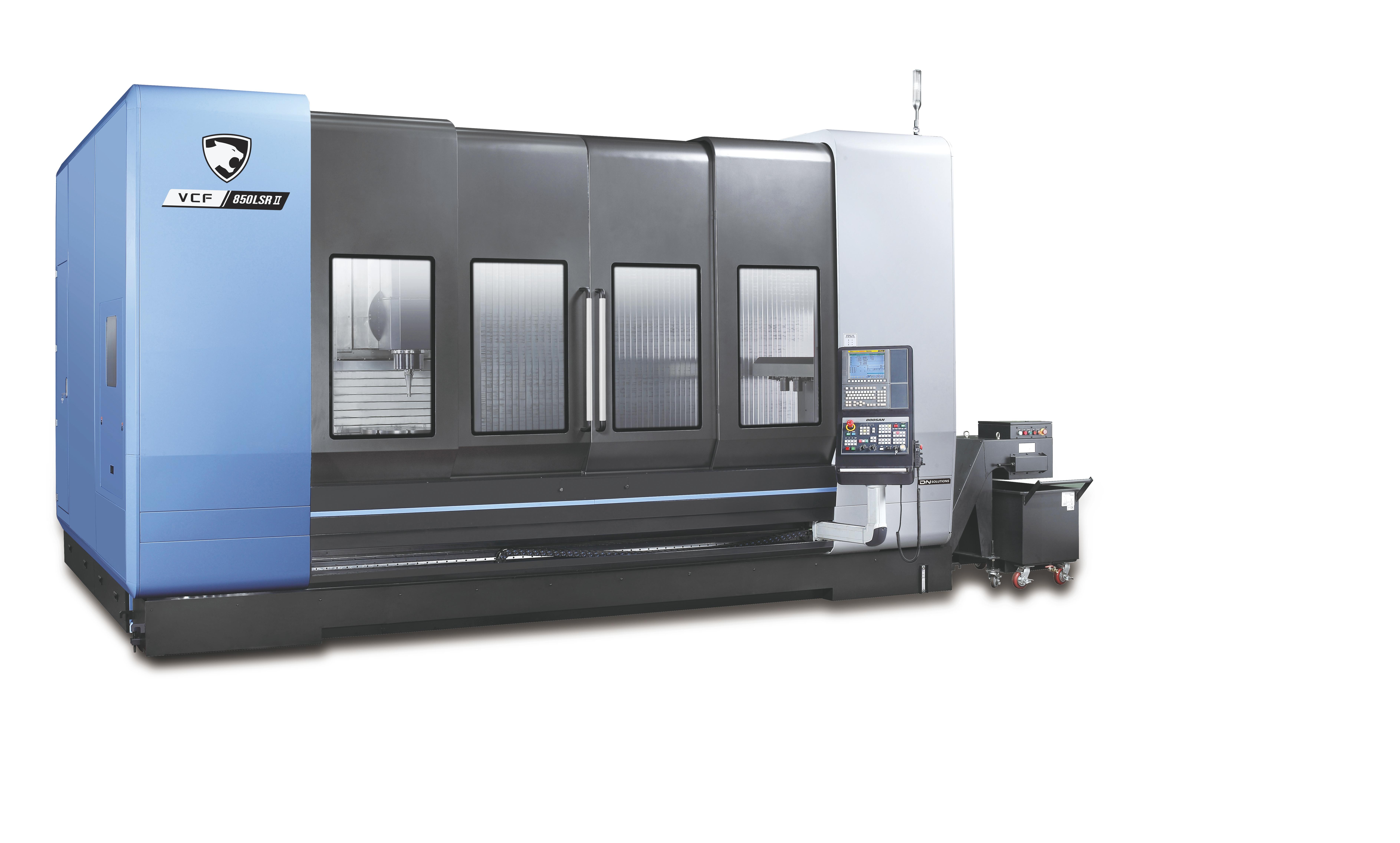

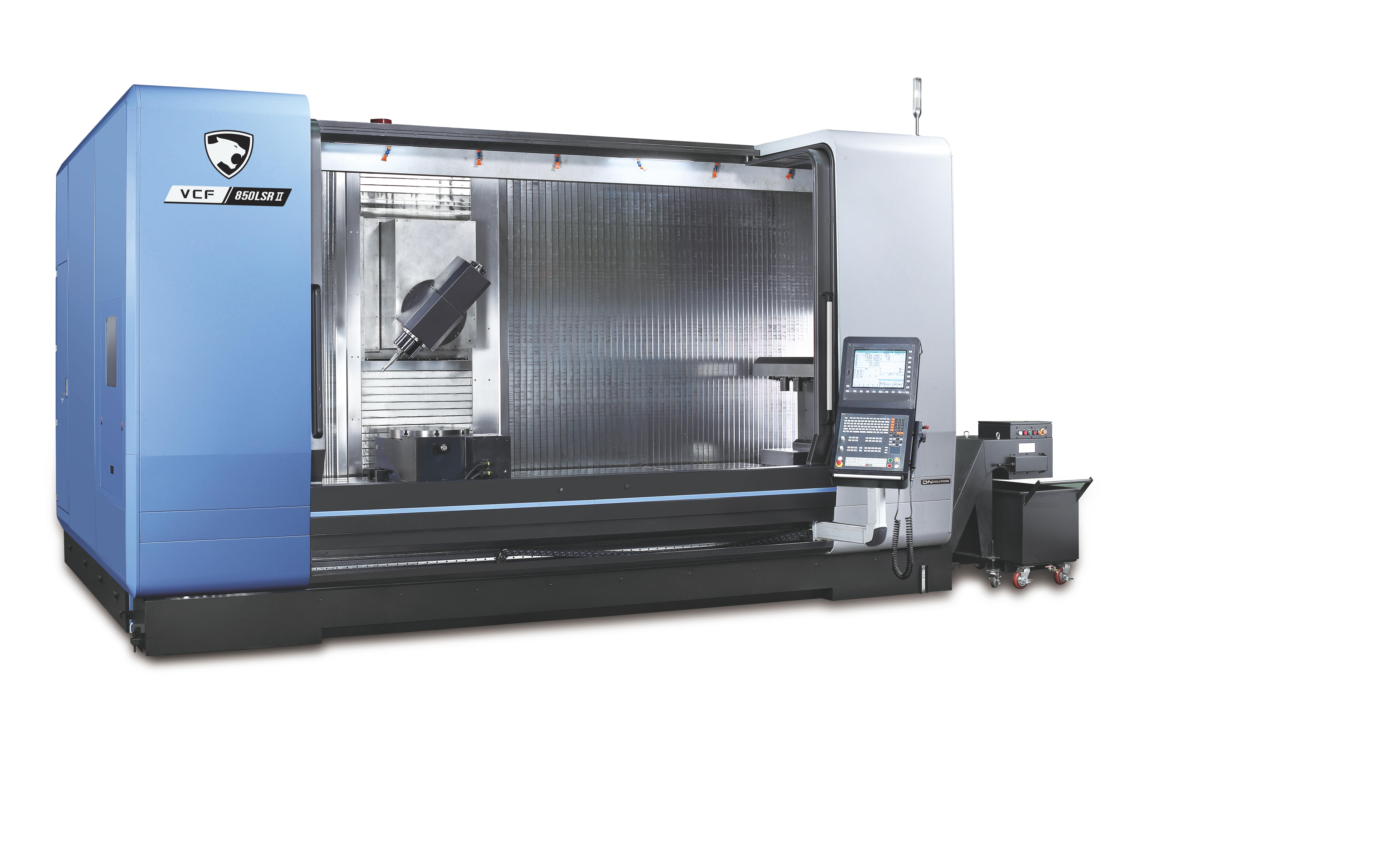

    VCF 850SR II

    MULTI-PURPOSE VERTICAL MACHINING CENTER

    • Versatile Machining: Both the VCF 5500 and VCF 850II Series are designed for a wide range of applications, from EV frames to complex parts.
    • Enhanced Productivity: Optional features like rotary tables and center partitions maximize efficiency and output, especially for long-shaped parts.
    • Improved Cutting Performance: The VCF 850II Series offers high-rigidity B-axes for greater cutting precision and flexibility in demanding tasks.

    Highlights

    • Travels - X Axis Travel distance (mm): 2000
    • Travels - Y Axis Travel distance (mm): 850
    • Travels - Z Axis Travel distance (mm): 800

    Control System

      Heidenhain

    Series description

    The VCF 5500 and VCF 850II Series are versatile, multi-purpose moving column vertical machining centers designed to handle a wide range of applications. The VCF 5500L/UL/SL models feature fixed tables and an optional center partition for enhanced productivity, making them ideal for machining long-shaped parts, such as EV frames and battery systems, with rotary tables for lengths up to 2.2 meters.

    The VCF 850II Series, an upgraded line, offers high-rigidity and durable B-axes, delivering improved cutting performance and machining flexibility. With a 3-meter X-axis, these machines can further enhance productivity with options like rotary tables and center partitions, making them suitable for diverse machining tasks.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 2000
    Travels - Y Axis Travel distance (mm) 850
    Travels - Z Axis Travel distance (mm) 800
    Travels - Z Axis Rapid Traverse (m/min) 40

    Feed rates

    Feed rate - X Axis Rapid Traverse 40
    Feed rate - Y Axis Rapid Traverse 40

    Table

    Table Length (mm) 2500
    Table Width (mm) 870
    Max. Workpiece weight (kg) 2500

    Workpiece capacity

    Max. Workpiece Diameter (mm) 1050
    Max. Workpiece Height (mm) 900
    Max. Workpiece weight (kg) 2500

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 32
    Main Spindle Max. Torque 126.3
    Tool Taper (ISO)

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 3795
    Height (mm) 3253
    Width (mm) 4440
    Weight (kg) 22000
      Name Download File type
    VCF 850SR II
    		VCF 850 II .pdf 8712 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
