    VC 3600/30

    • Enhanced Productivity: High-speed tapping centers and compact machining centers significantly reduce cycle times, boosting overall productivity.
    • Versatile Performance: T Series machines handle both light and heavy-duty cutting with various spindle options and models, like the T4000L for larger parts.
    • Advanced Reliability: Robust construction and simultaneous operation functions in models like the VC 3600/30 ensure consistent, reliable performance in demanding industries.

    Highlights

    • Travels - X Axis Travel distance (mm): 520
    • Travels - Y Axis Travel distance (mm): 360
    • Travels - Z Axis Travel distance (mm): 350

    Control System

      Fanuc

    Series description

    DN Solutions' T Series high-speed tapping centers offer exceptional cutting performance, significantly boosting customer productivity. These machines feature ample working envelopes, rapid X-, Y-, and Z-axis movements, and various spindle options tailored to meet diverse customer needs. Designed for reliability, the T Series handles both light and heavy-duty cutting with ease. For larger parts, the T4000L model provides an extended 700mm X-axis stroke.

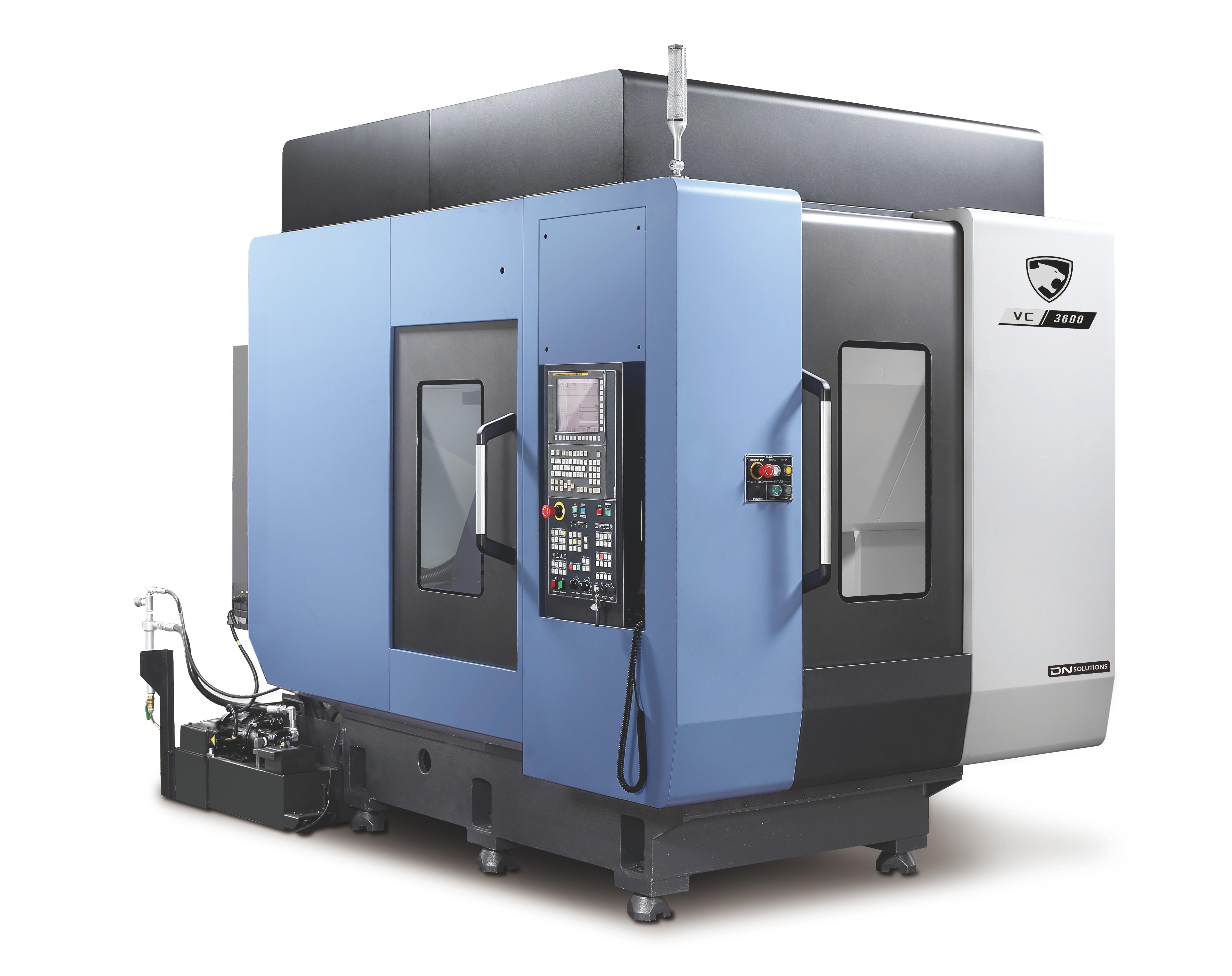

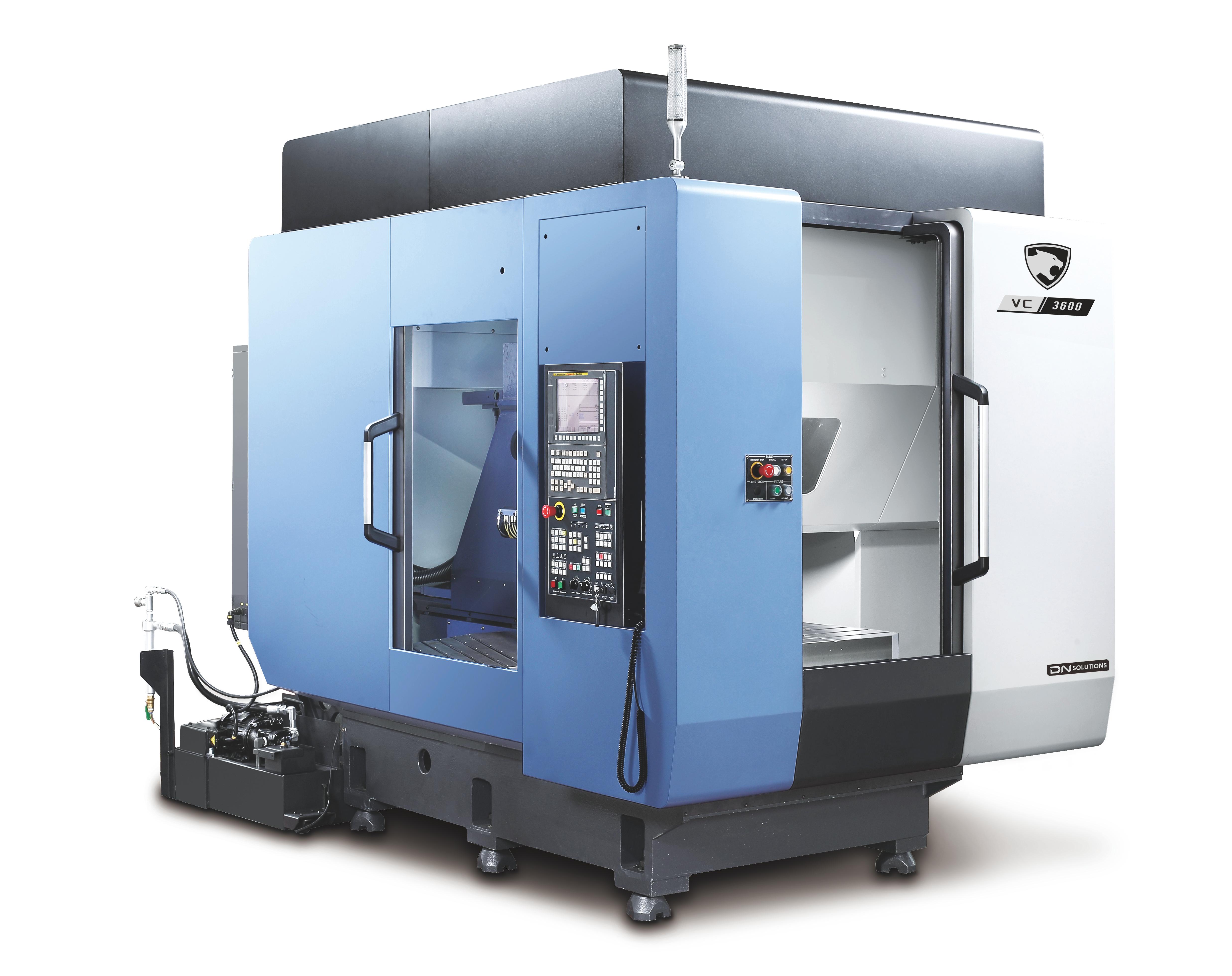

    The VC 3600/30 is a compact, high-productivity machining center designed for the automotive and IT industries. It features a simultaneous operation function, allowing the rotary table to turn and all axes to position simultaneously during tool changes. Enhanced durability and reliability are achieved through a more rigid frame and advanced servo unit, making it ideal for demanding production environments.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 520
    Travels - Y Axis Travel distance (mm) 360
    Travels - Z Axis Travel distance (mm) 350
    Travels - Z Axis Rapid Traverse (m/min) 56

    Feed rates

    Feed rate - X Axis Rapid Traverse 48
    Feed rate - Y Axis Rapid Traverse 48

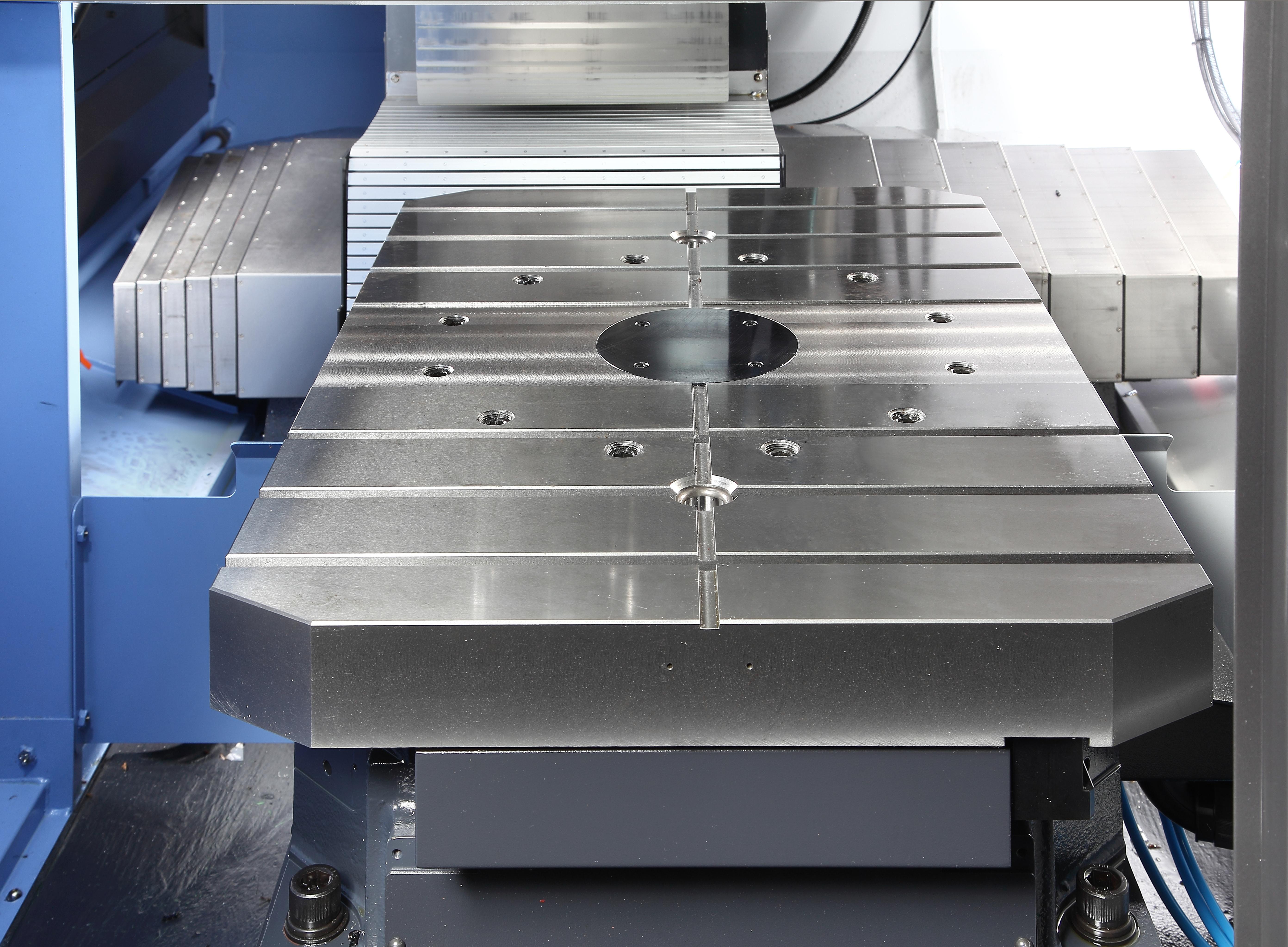

    Table

    Table Length (mm) 650
    Table Width (mm) 375
    Max. Workpiece weight (kg) 200+200
    Pallet Size (mm) 650x375
    Max. Table weight (kg) 400

    Workpiece capacity

    Max. Workpiece Height (mm) 300
    Max. Workpiece weight (kg) 200+200

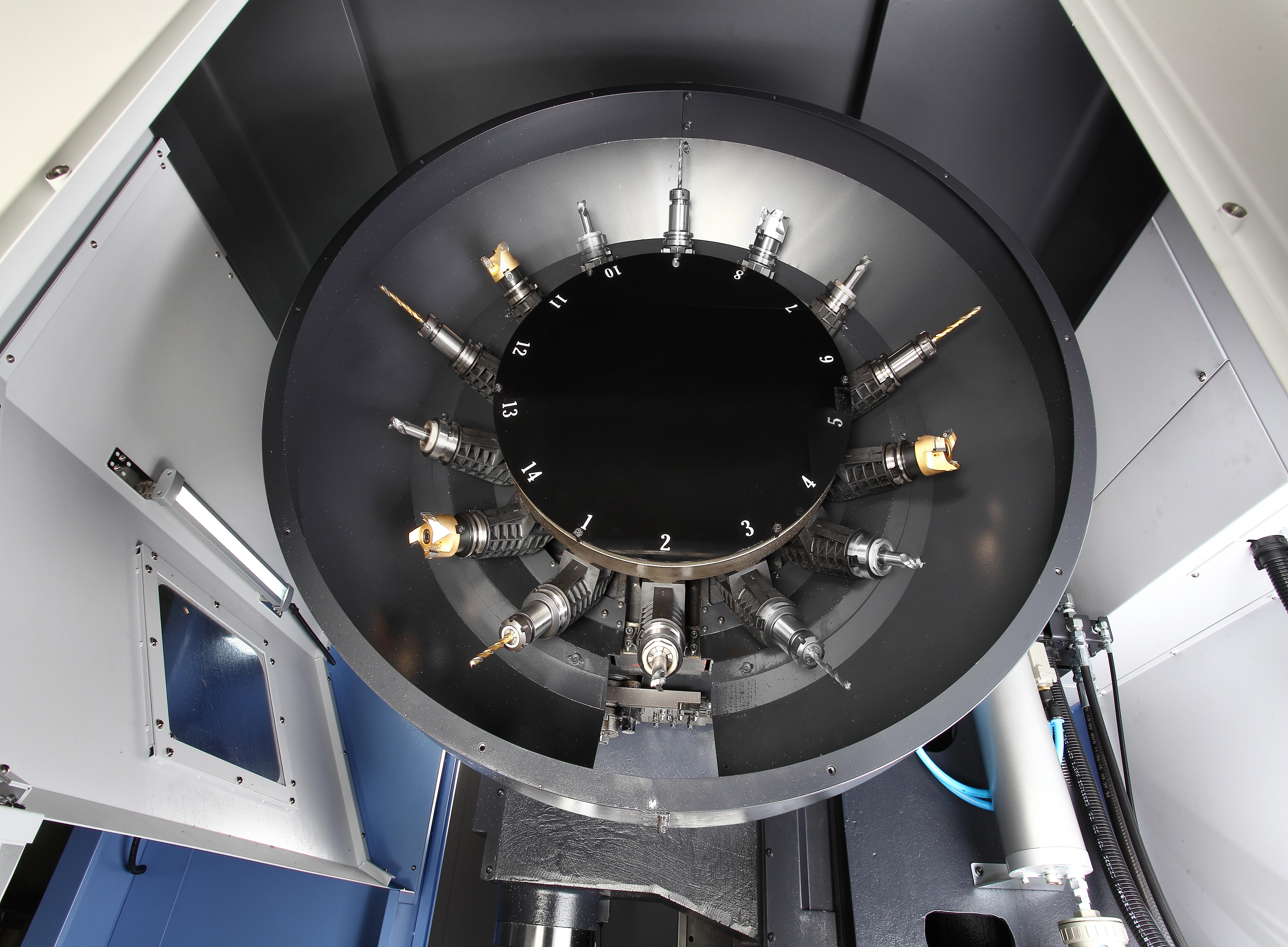

    Tool storage capacity

    Machining center - No. of tool station 14

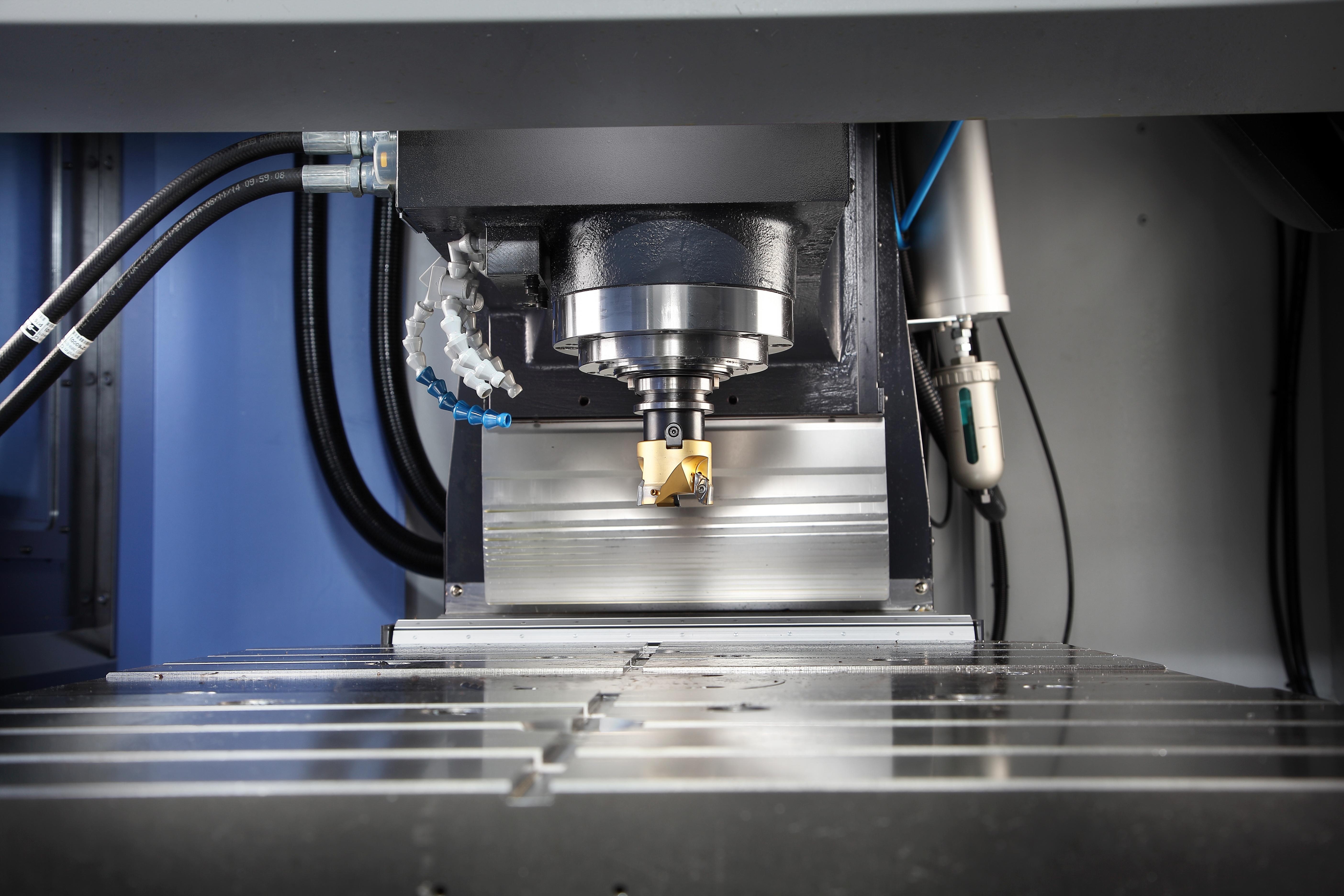

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 13
    Main Spindle Max. Torque 82.7
    Tool Taper (ISO) 30

    Turret

    Turret - No. of tool station 14

    Dimensions

    Length (mm) 3684
    Height (mm) 2552
    Width (mm) 1729
    Weight (kg) 5200
      Name Download File type
    VC 3600/30
    		VC 3600_30 .pdf 3993 KB
    		.pdf
