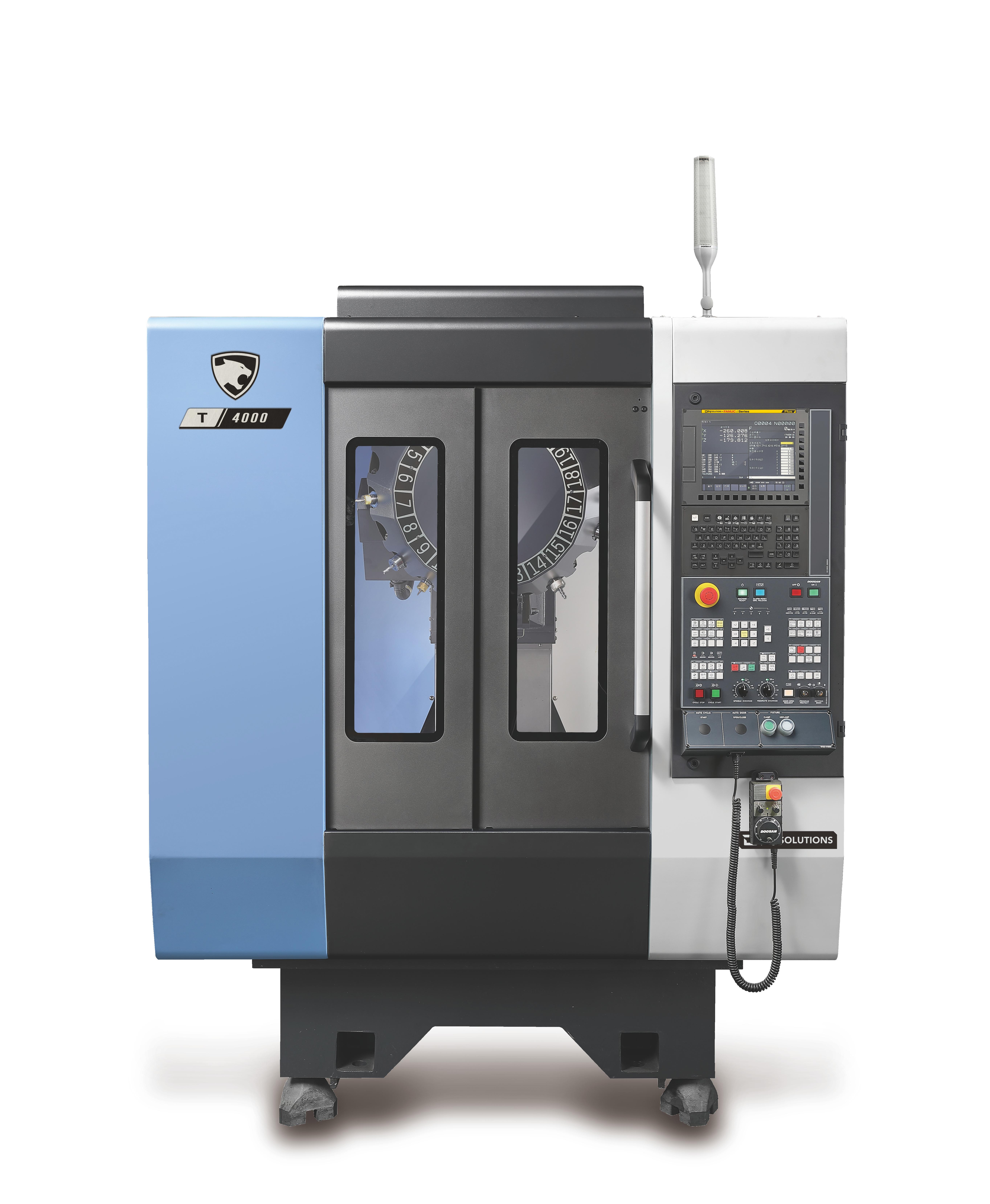

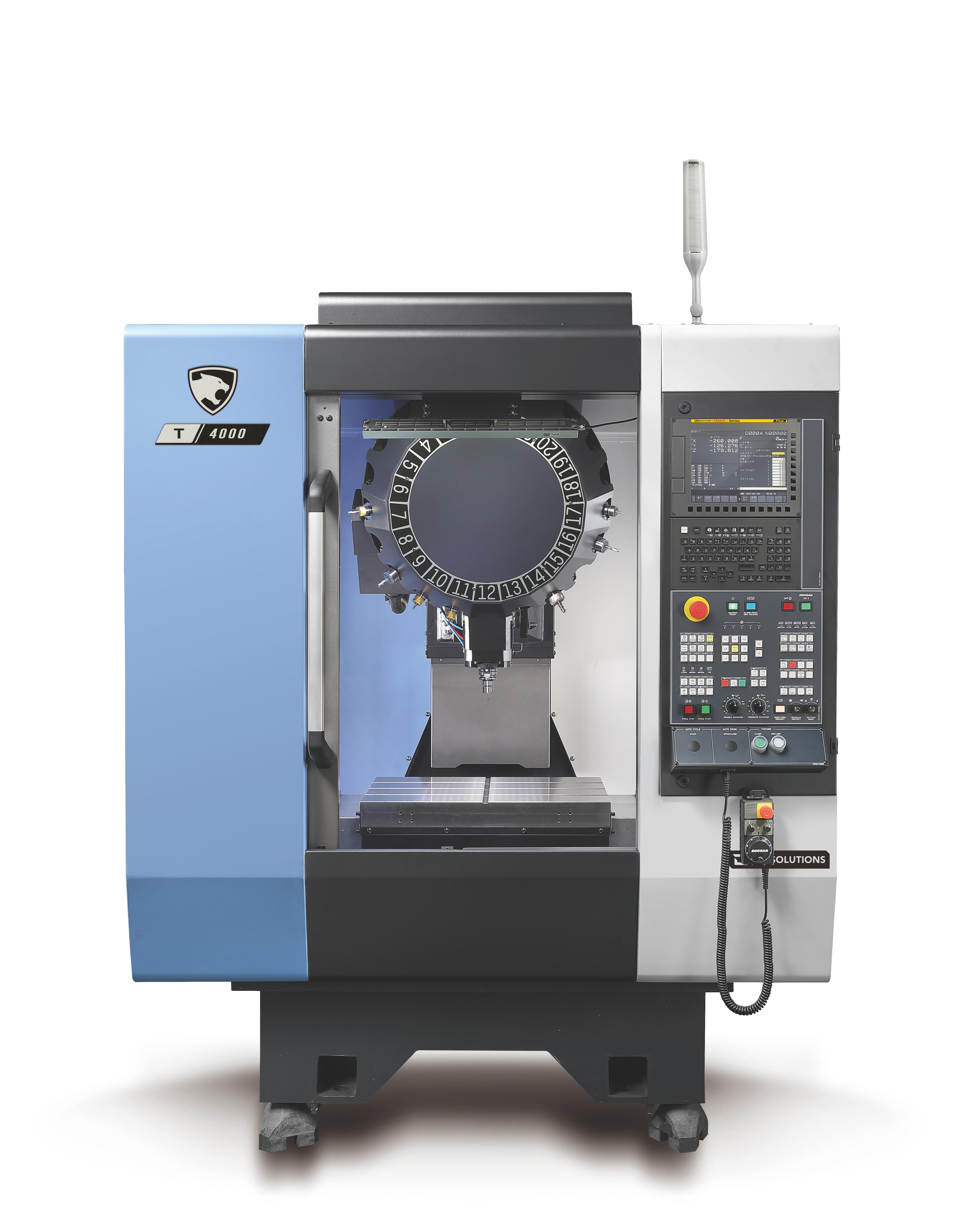

    T 4000 Series

    HIGH-SPEED, HIGH-PRODUCTIVITY TAPPING CENTER

    • Enhanced Productivity: High-speed tapping centers and compact machining centers significantly reduce cycle times, boosting overall productivity.
    • Versatile Performance: T Series machines handle both light and heavy-duty cutting with various spindle options and models, like the T4000L for larger parts.
    • Advanced Reliability: Robust construction and simultaneous operation functions in models like the VC 3600/30 ensure consistent, reliable performance in demanding industries.

    Highlights

    • Travels - X Axis Travel distance (mm): 520
    • Travels - Y Axis Travel distance (mm): 400
    • Travels - Z Axis Travel distance (mm): 350

    Control System

      Fanuc

    Series description

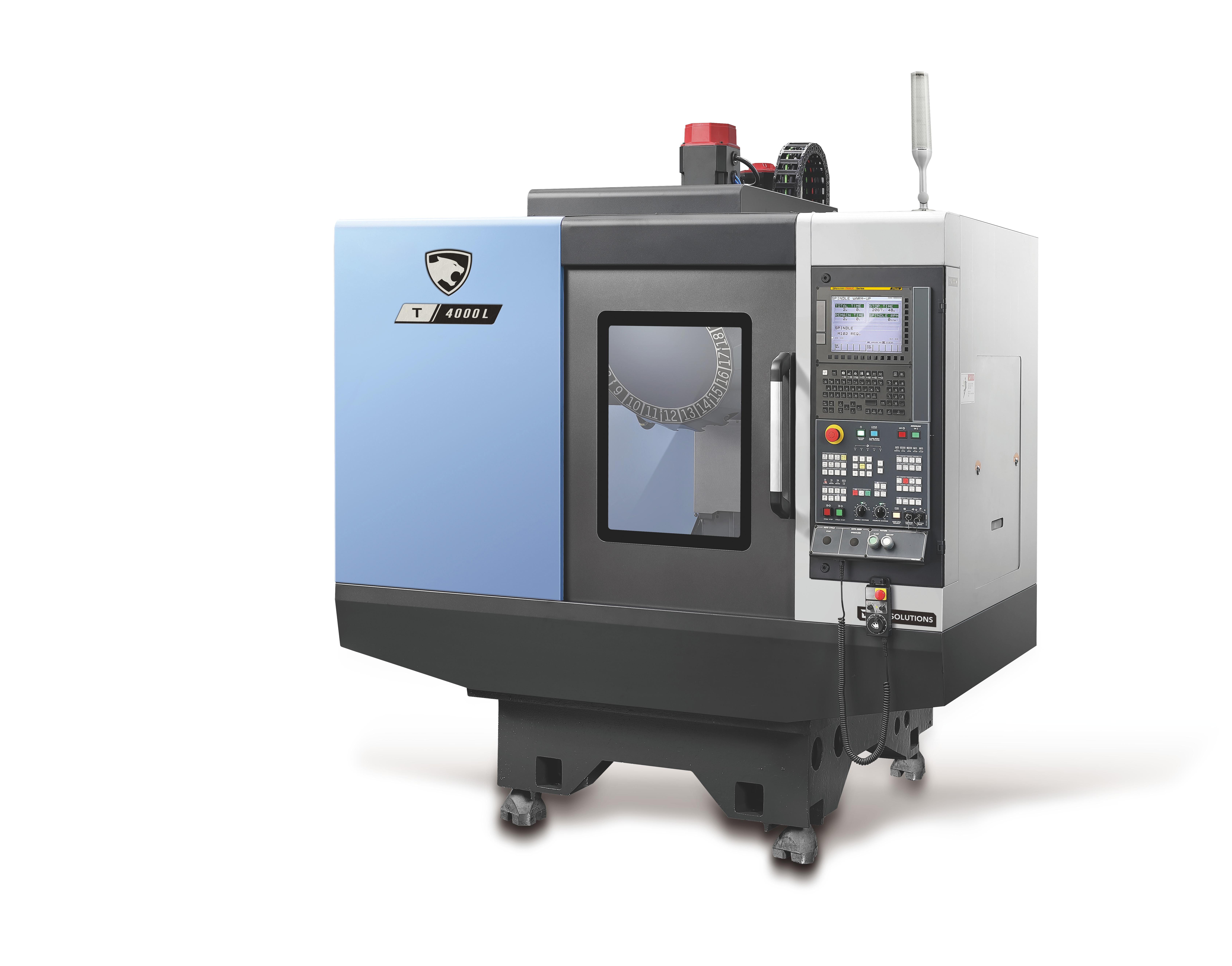

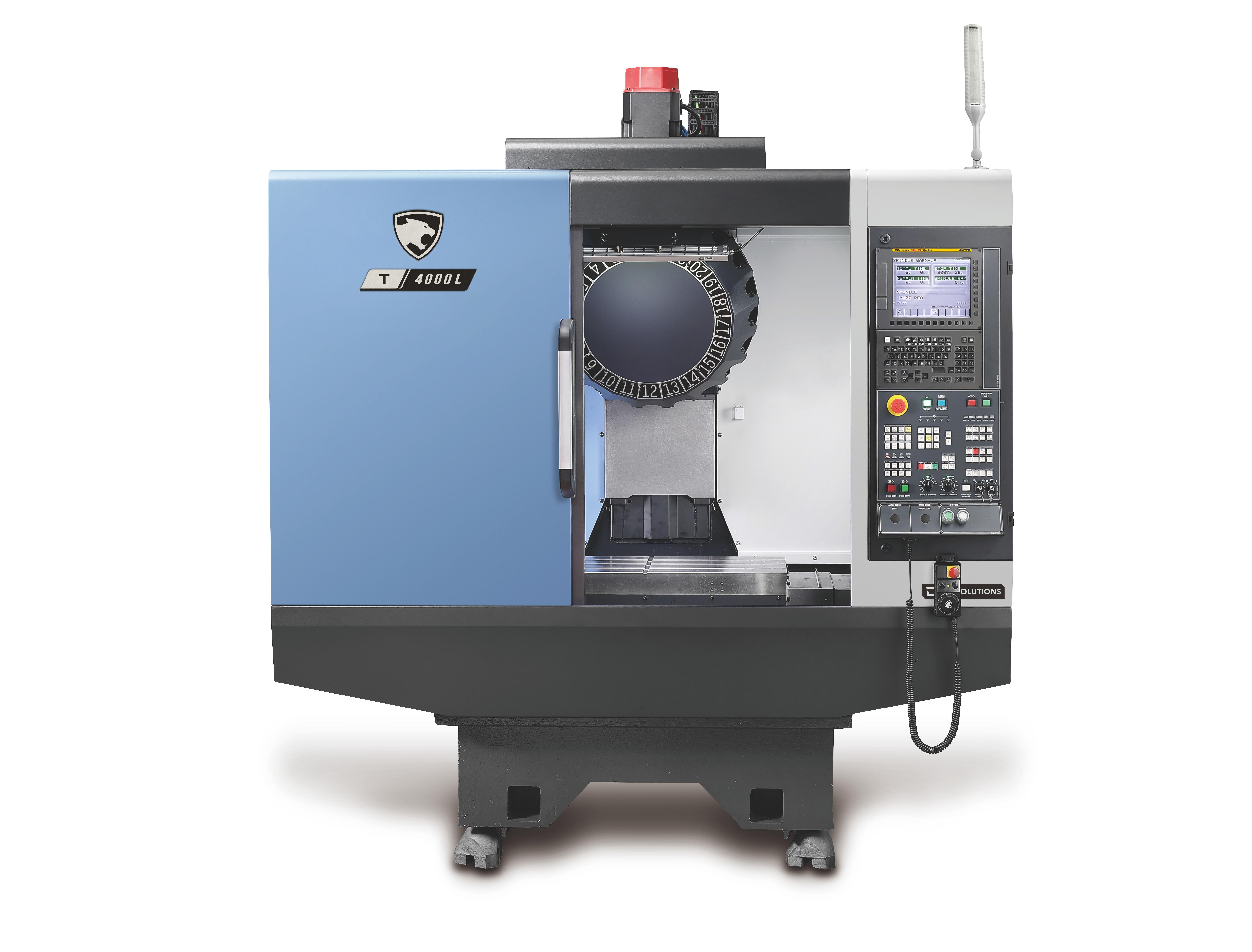

    DN Solutions' T Series high-speed tapping centers offer exceptional cutting performance, significantly boosting customer productivity. These machines feature ample working envelopes, rapid X-, Y-, and Z-axis movements, and various spindle options tailored to meet diverse customer needs. Designed for reliability, the T Series handles both light and heavy-duty cutting with ease. For larger parts, the T4000L model provides an extended 700mm X-axis stroke.

    The VC 3600/30 is a compact, high-productivity machining center designed for the automotive and IT industries. It features a simultaneous operation function, allowing the rotary table to turn and all axes to position simultaneously during tool changes. Enhanced durability and reliability are achieved through a more rigid frame and advanced servo unit, making it ideal for demanding production environments.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 520
    Travels - Y Axis Travel distance (mm) 400
    Travels - Z Axis Travel distance (mm) 350
    Travels - Z Axis Rapid Traverse (m/min) 56

    Feed rates

    Feed rate - X Axis Rapid Traverse 56
    Feed rate - Y Axis Rapid Traverse 56

    Table

    Table Length (mm) 650
    Table Width (mm) 400
    Max. Workpiece weight (kg) 300
    Pallet Size (mm) 650x400
    Max. Table weight (kg) 300

    Workpiece capacity

    Max. Workpiece weight (kg) 300

    Tool storage capacity

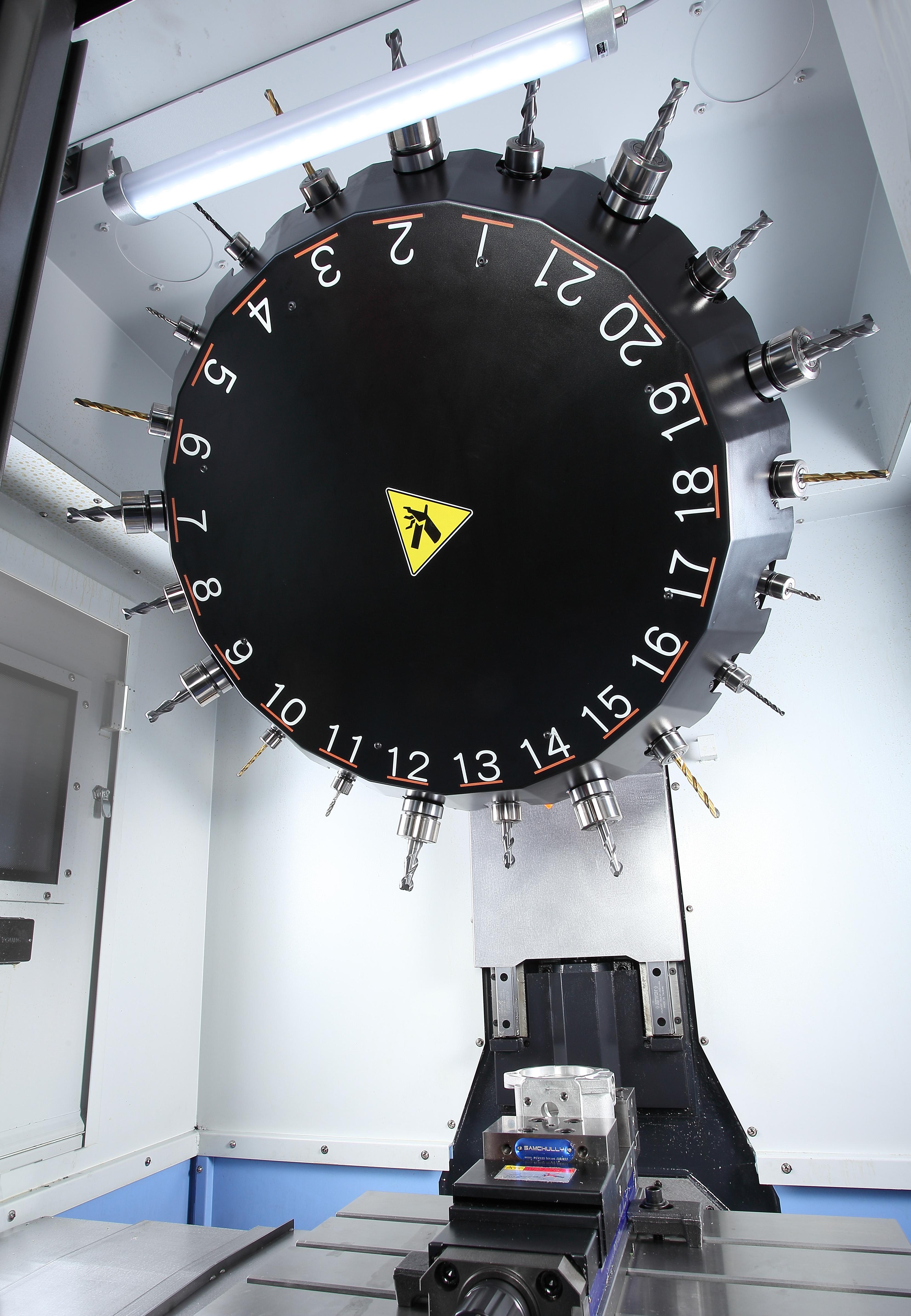

    Machining center - No. of tool station 21

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 13
    Main Spindle Max. Torque 82.7
    Tool Taper (ISO) BT30

    Turret

    Turret - No. of tool station 21

    Dimensions

    Length (mm) 2560
    Height (mm) 2312
    Width (mm) 1633
    Weight (kg) 2800
      Name Download File type
    T 4000 Series
    		T 4000 series.pdf 5655 KB
    		.pdf
