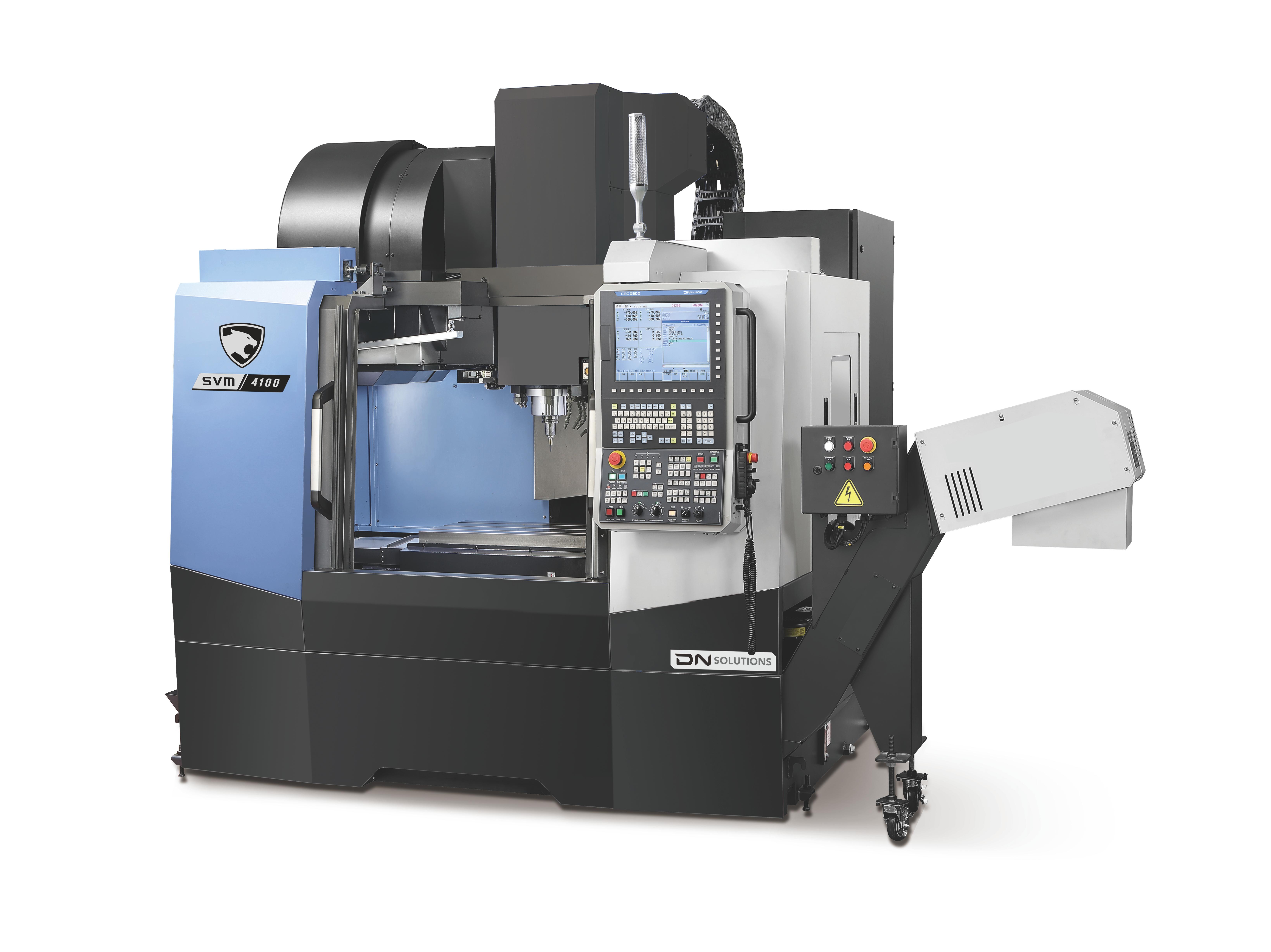

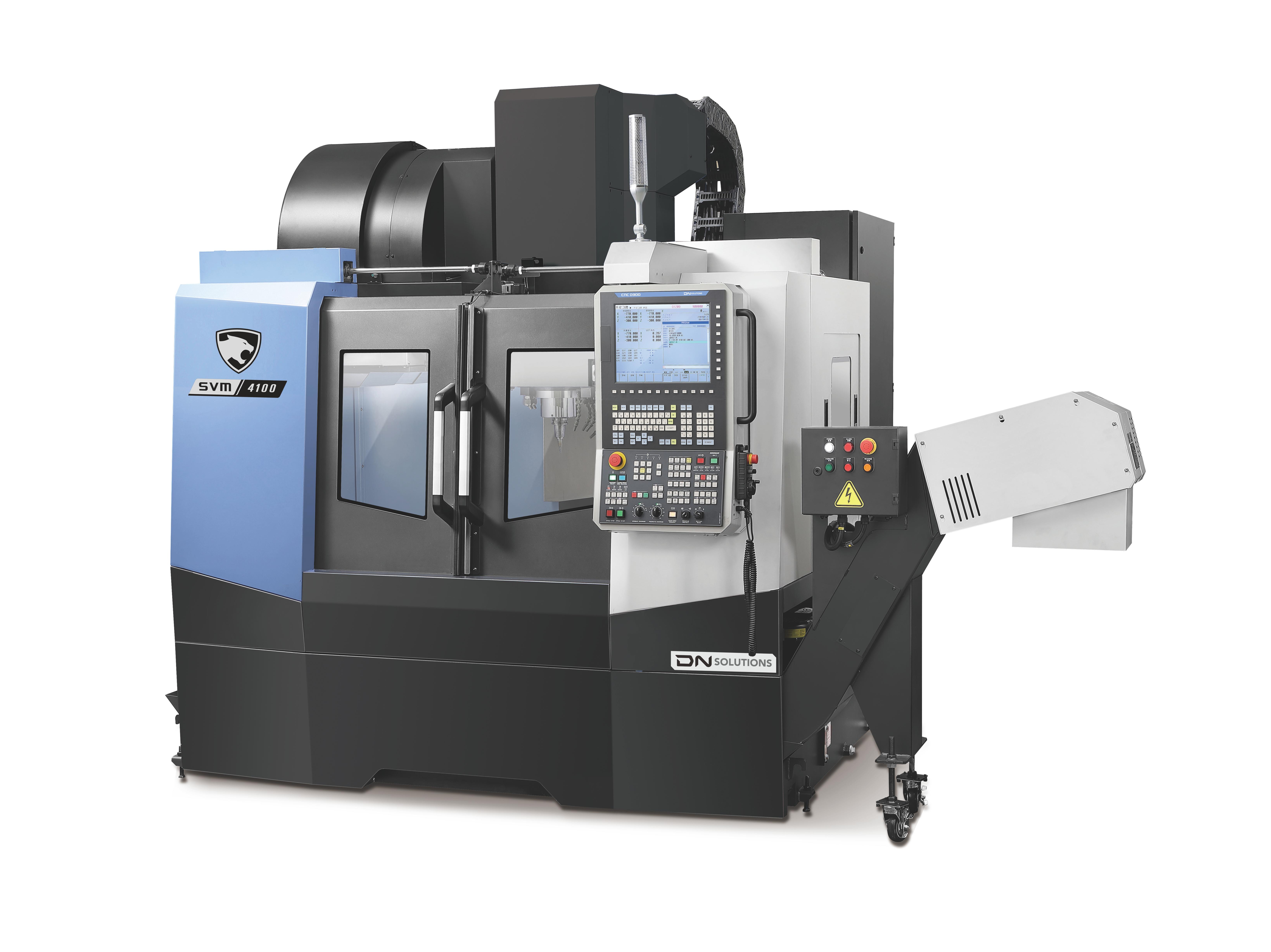

    SVM 4100

    HIGH PRODUCTIVITY SWIFT VERTICAL MACHINING CENTER

    • Optimized Cycle Times: Improved acceleration and deceleration of XYZ axes and spindle reduce non-cutting time for faster production.
    • Versatile Machining: Ideal for both aluminum die castings and light-duty steel machining, catering to diverse industry needs.
    • Large Machining Envelope: Provides the largest workspace in its class, with advanced features like thermal displacement correction for precision and flexibility.

    Highlights

    • Travels - X Axis Travel distance (mm): 770
    • Travels - Y Axis Travel distance (mm): 410
    • Travels - Z Axis Travel distance (mm): 510

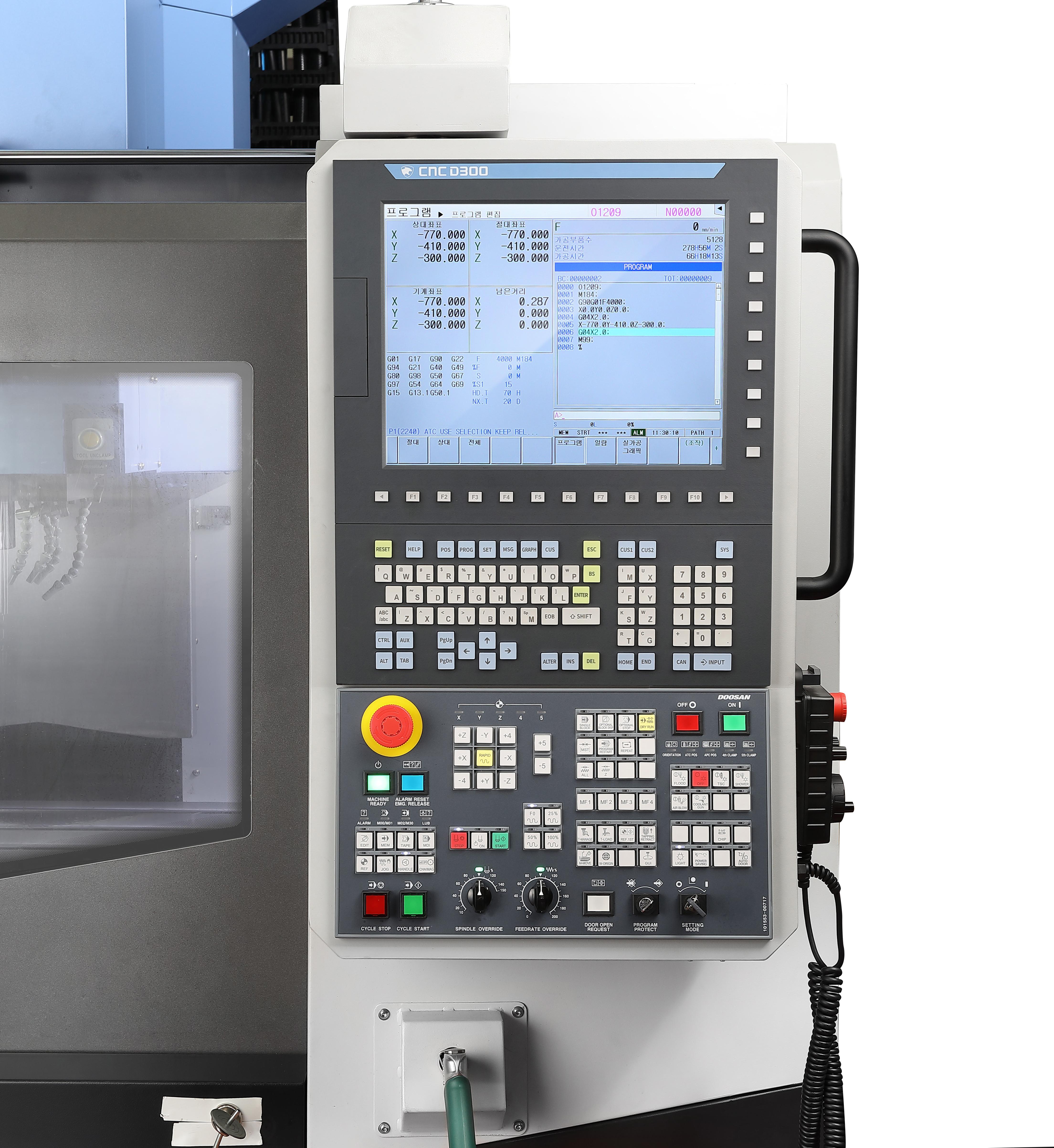

    Control System

      Fanuc

    Series description

    The SVM Series vertical machining center is designed to meet the growing demand for machining aluminum die castings in the Automotive and IT industries, while also being versatile enough for general-purpose light-duty machining of steel parts. Optimized for shorter cycle times, the SVM Series improves acceleration/deceleration of the XYZ axes and spindle, reducing non-cutting time. With the largest machining envelope in its class, it offers enhanced versatility, featuring thermal displacement correction for the direct-drive spindle and user-friendly EZ work functions, making it ideal for handling a wide range of parts.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 770
    Travels - Y Axis Travel distance (mm) 410
    Travels - Z Axis Travel distance (mm) 510
    Travels - Z Axis Rapid Traverse (m/min) 36

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36

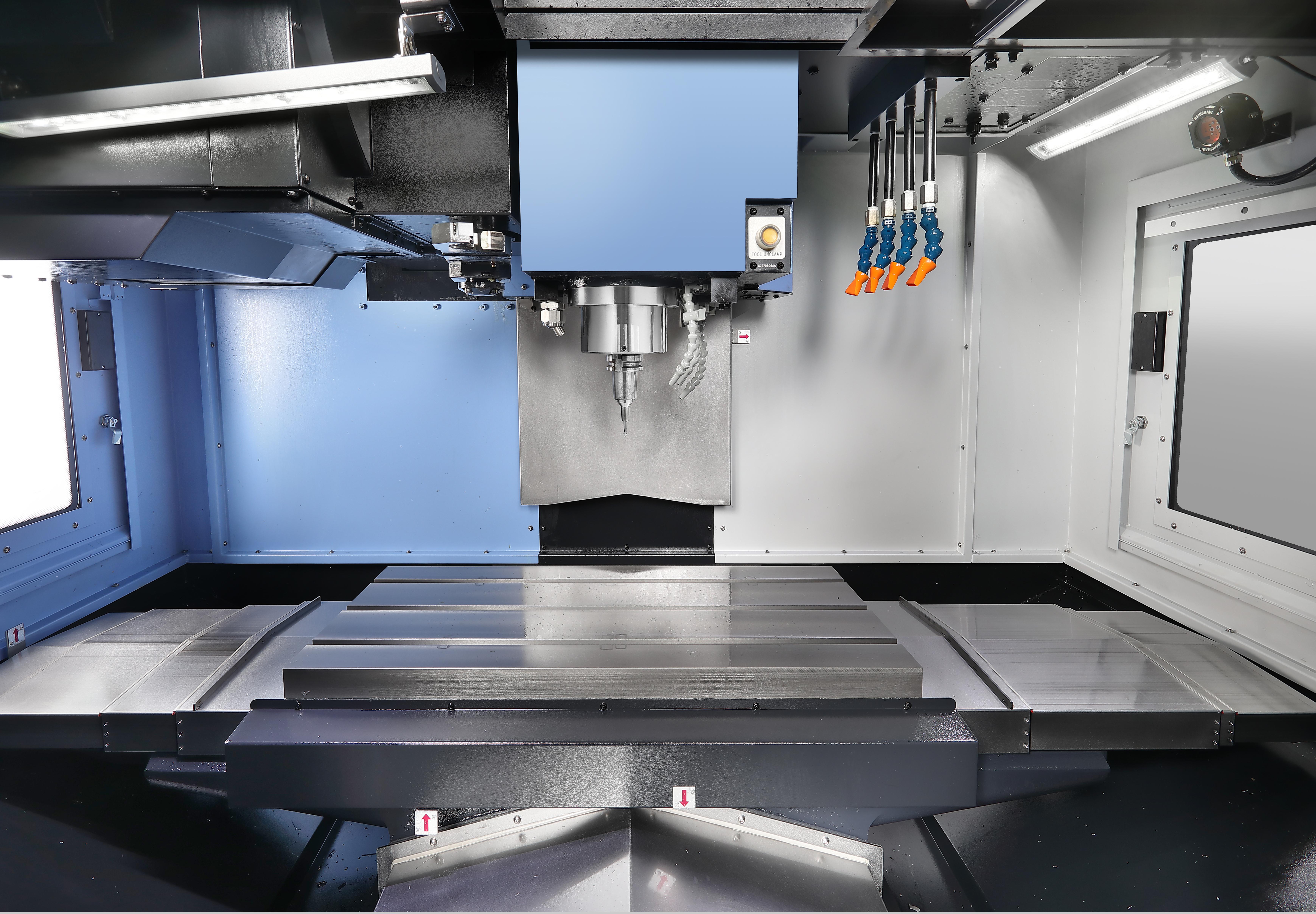

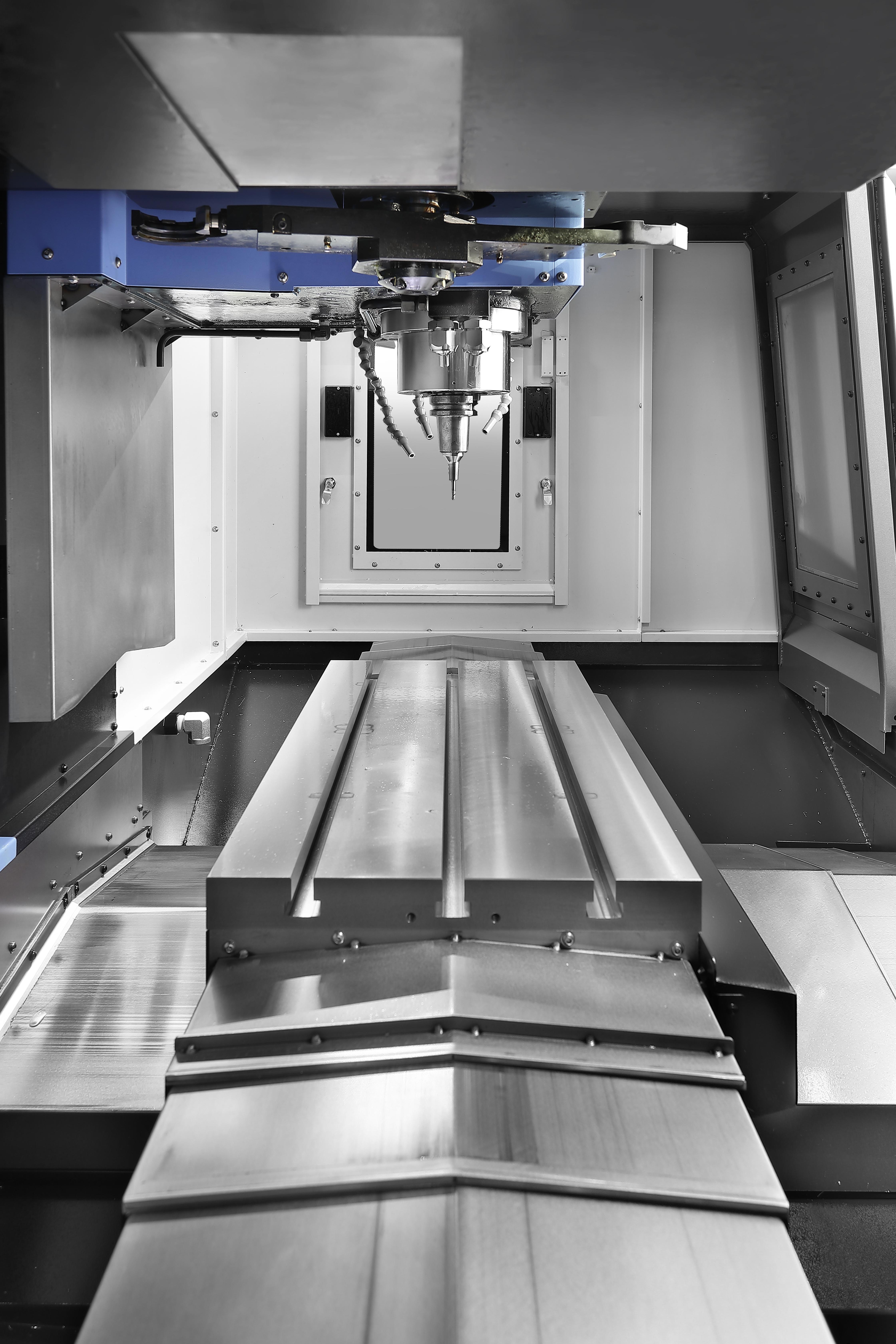

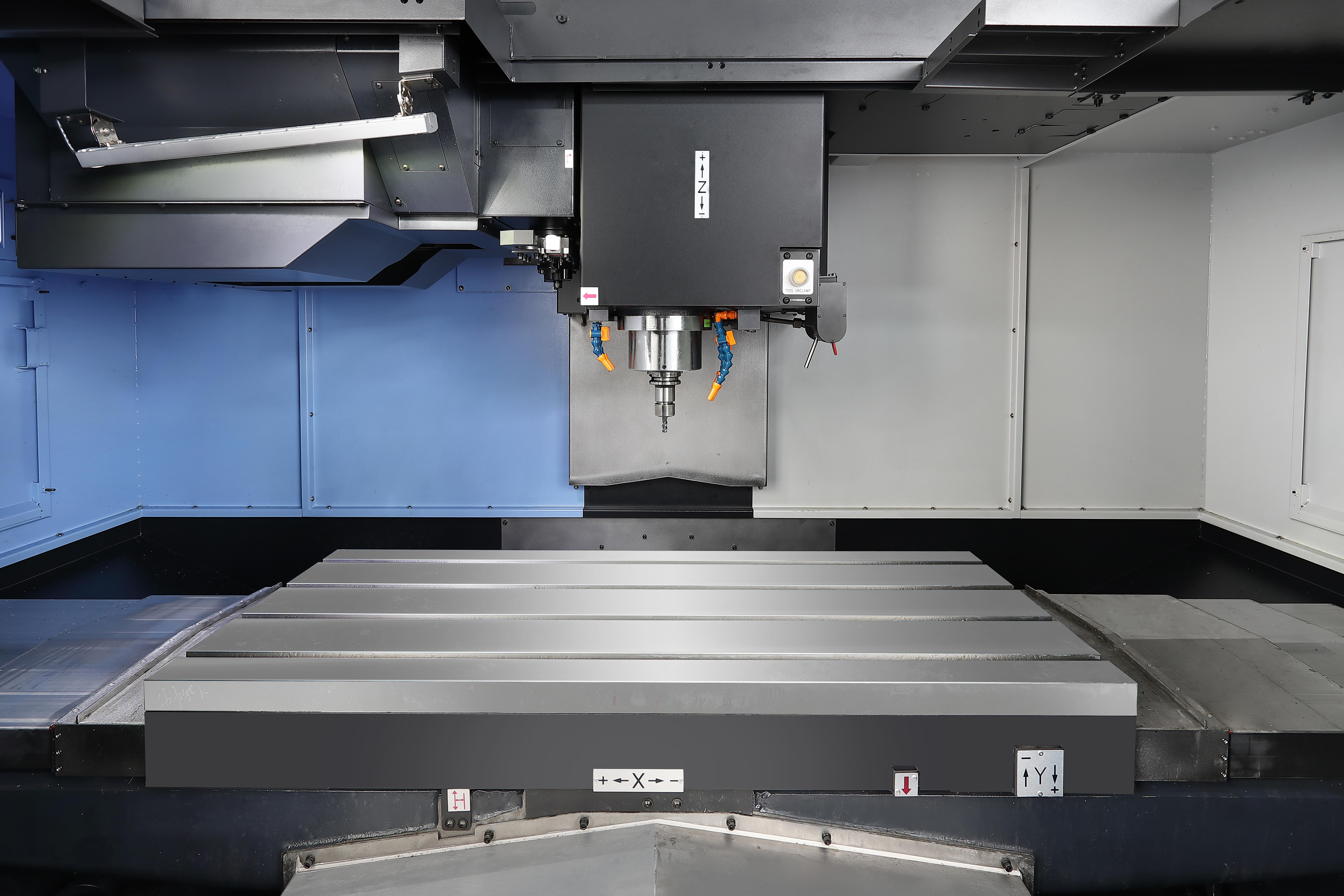

    Table

    Table Length (mm) 920
    Table Width (mm) 410
    Max. Workpiece weight (kg) 600

    Workpiece capacity

    Max. Workpiece Height (mm) 495
    Max. Workpiece weight (kg) 600

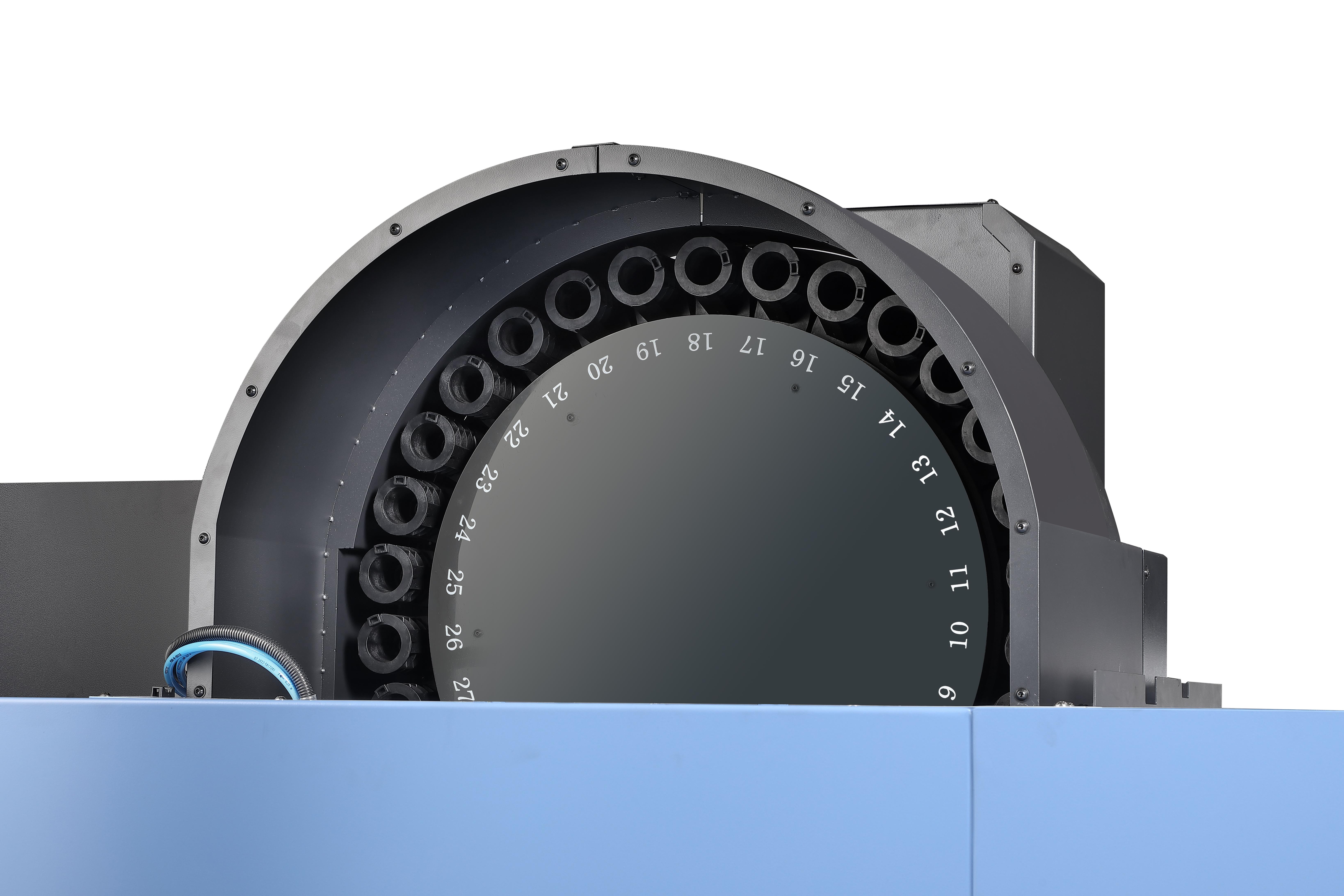

    Tool storage capacity

    Machining center - No. of tool station 30

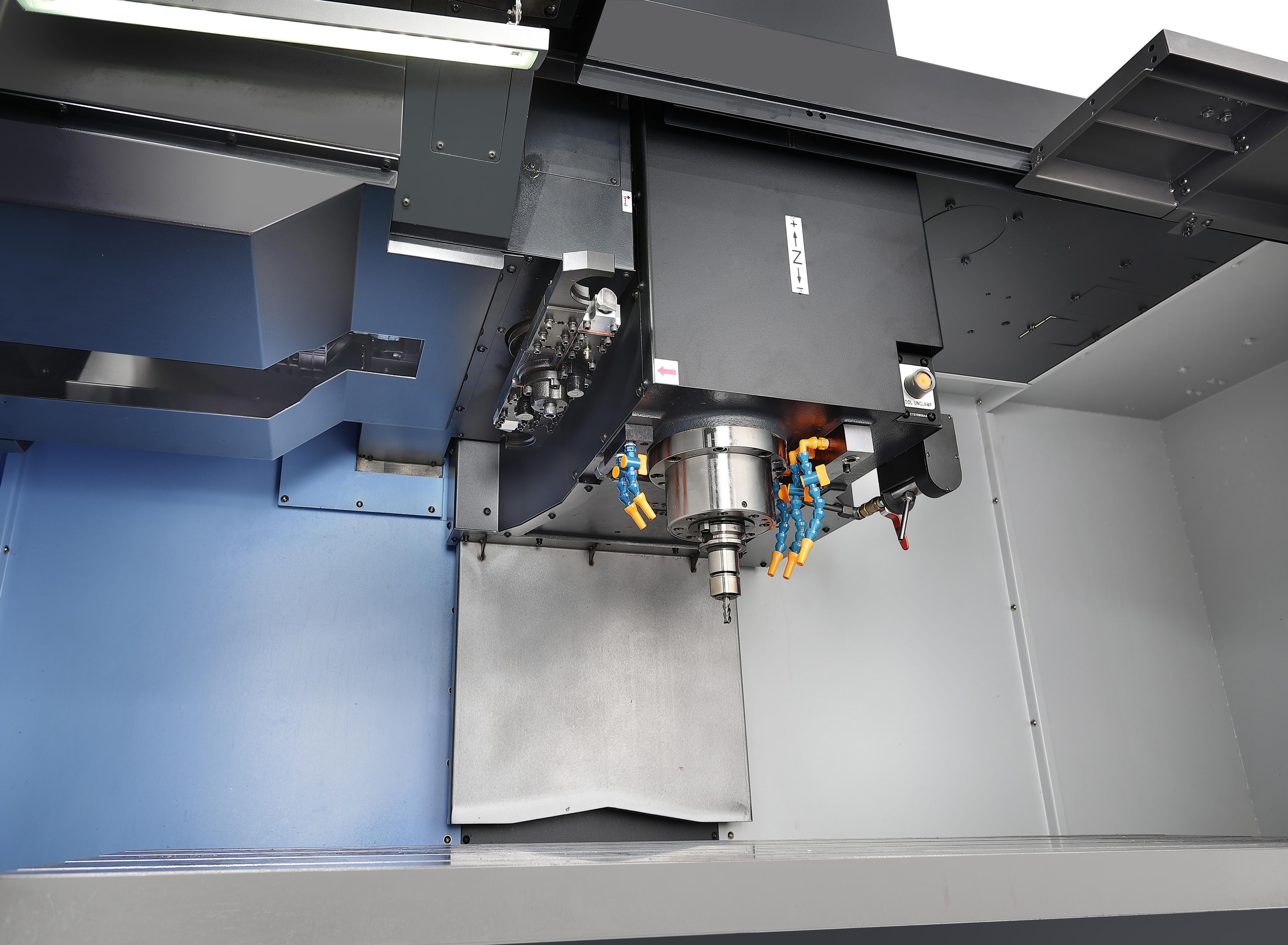

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 95.5
    Tool Taper (ISO)

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 2171
    Height (mm) 2661
    Width (mm) 2250
    Weight (kg) 3850
      Name Download File type
    SVM 4100
    		SVM series.pdf 6136 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
