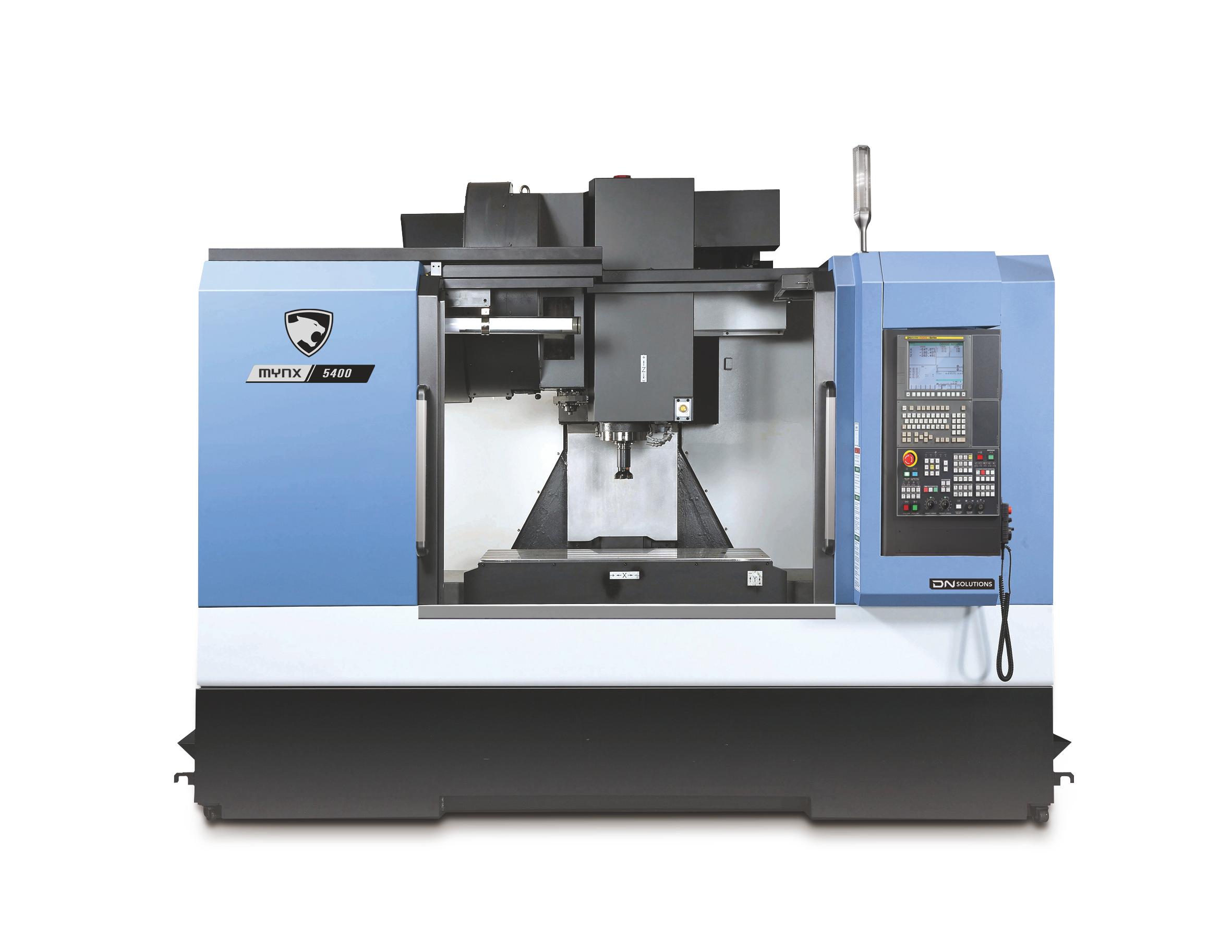

    MYNX 5400 II Series

    HEAVY DUTY VERTICAL MACHINING CENTER

    • Versatile Workpiece Handling: Offers a wide range of table sizes and spindle options to accommodate various machining needs.
    • High Durability and Rigidity: Engineered for robust performance, ensuring reliable operation in demanding applications.
    • User-Friendly Features: Includes Ez work functions that enhance ease of use and convenience for operators.

    Highlights

    • Travels - X Axis Travel distance (mm): 1020
    • Travels - Y Axis Travel distance (mm): 550
    • Travels - Z Axis Travel distance (mm): 530

    Control System

      Fanuc

    Series description

    The Mynx II Series offers a versatile lineup of vertical machining centers with table sizes ranging from 550 mm to 950 mm, allowing users to handle a broad range of workpieces. Designed for high durability and performance, the Mynx Series features robust rigidity and various spindle options to meet diverse machining needs. Enhanced with Ez work functions, the series improves user-friendliness and overall convenience, making it a reliable choice for demanding applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1020
    Travels - Y Axis Travel distance (mm) 550
    Travels - Z Axis Travel distance (mm) 530
    Travels - Z Axis Rapid Traverse (m/min) 24

    Feed rates

    Feed rate - X Axis Rapid Traverse 30
    Feed rate - Y Axis Rapid Traverse 30

    Table

    Table Length (mm) 1200
    Table Width (mm) 540
    Max. Workpiece weight (kg) 1000
    Pallet Size (mm) 1200x540
    Max. Table weight (kg) 1000

    Workpiece capacity

    Max. Workpiece Height (mm) 532
    Max. Workpiece weight (kg) 1000

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 8000
    Main Spindle Max. Power 15
    Main Spindle Max. Torque 286.5
    Tool Taper (ISO) BT40

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 2467
    Height (mm) 3012
    Width (mm) 3350
    Weight (kg) 7000
      Name Download File type
    MYNX 5400 II Series
    		Mynx II series.pdf 2803 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
