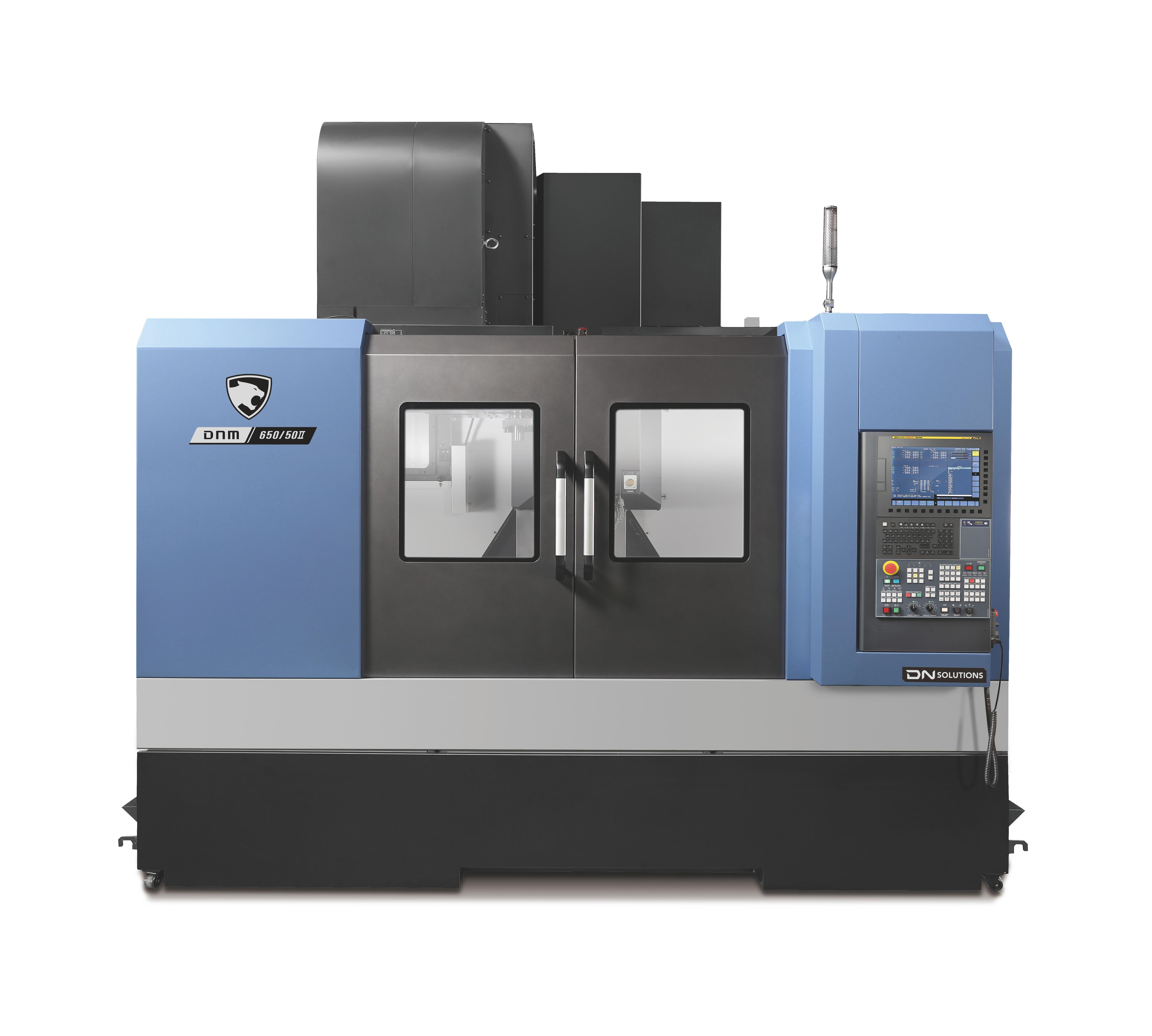

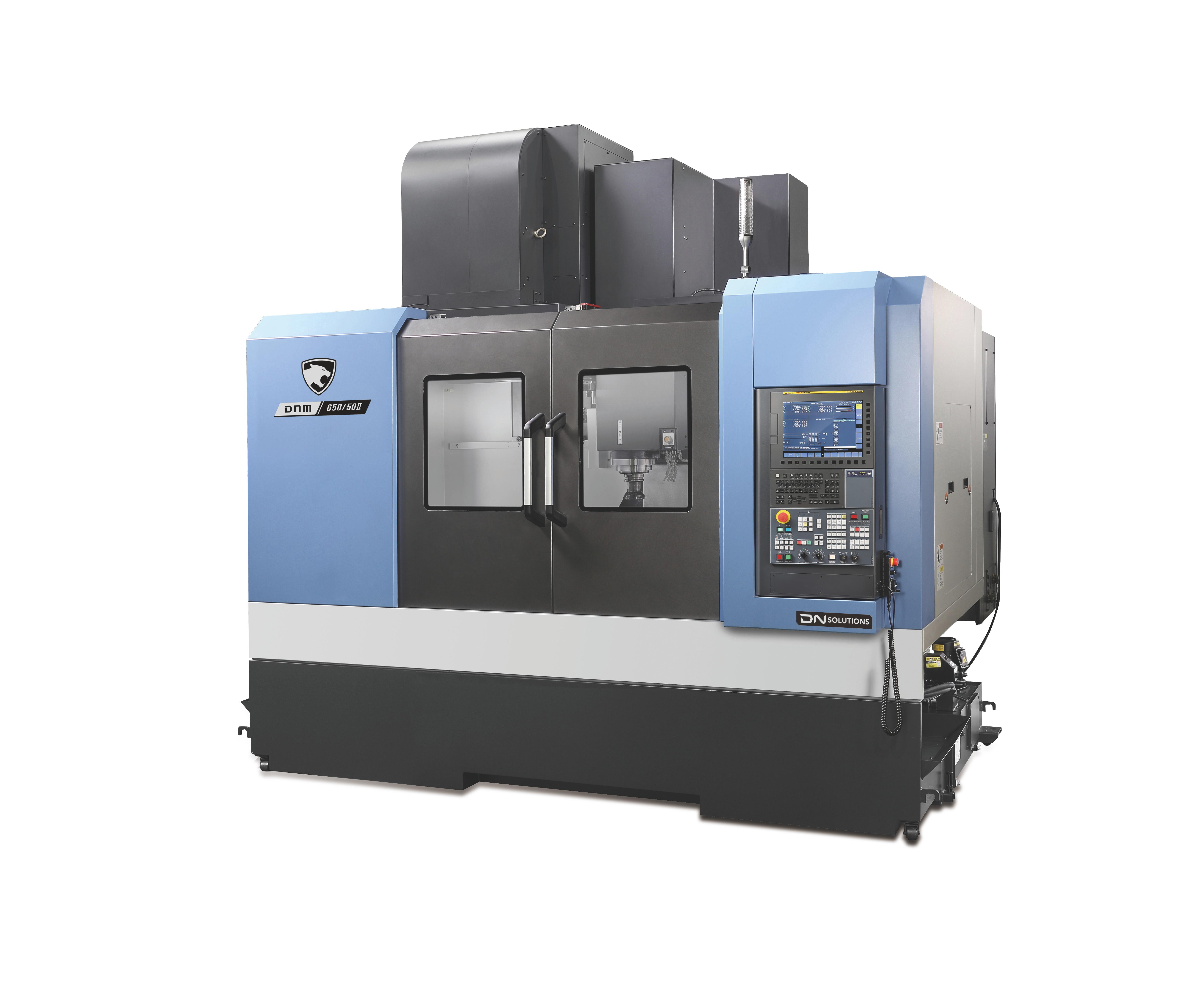

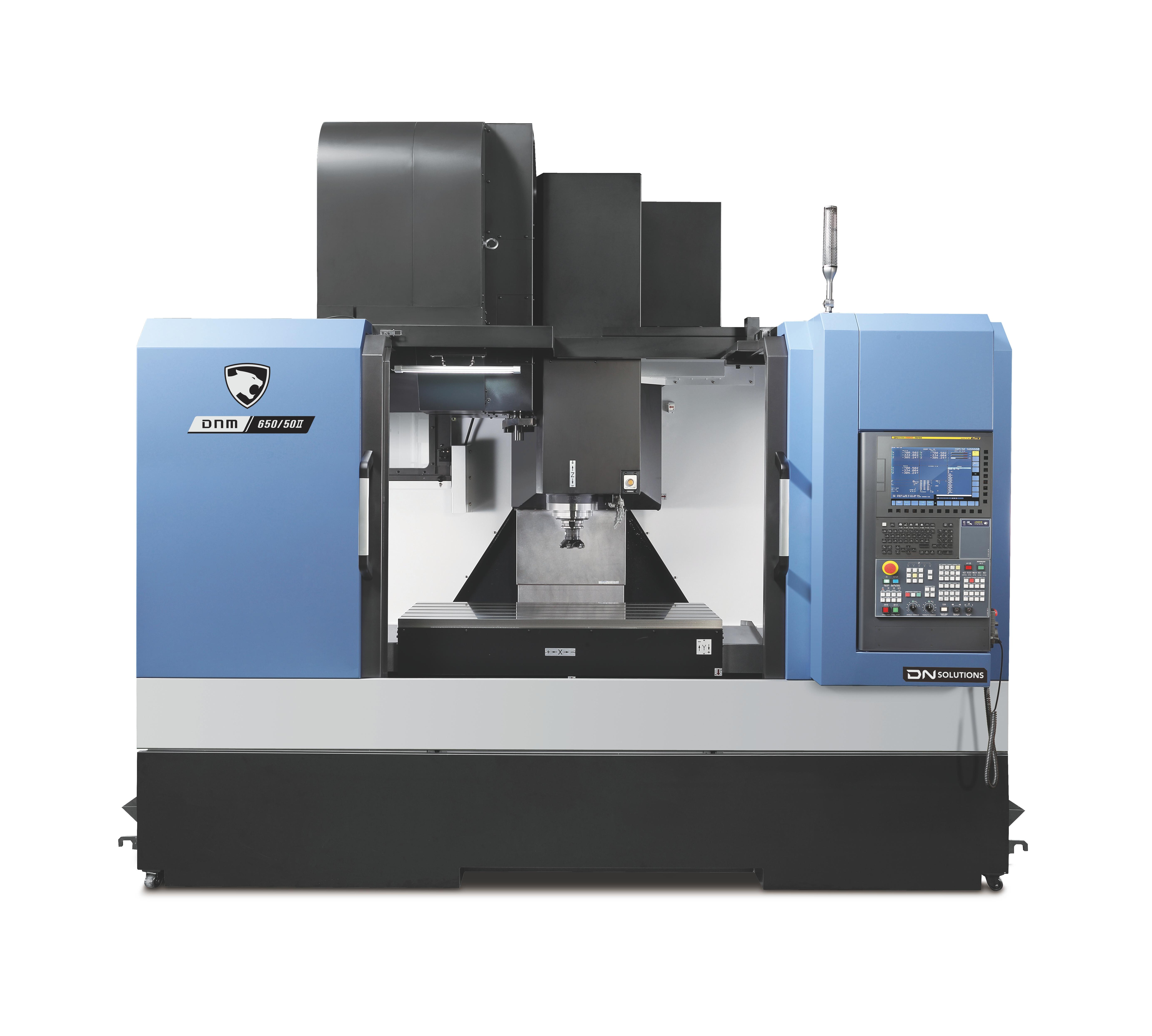

    DNM 650/50 II Series

    ISO #50, HIGH PRODUCTIVITY VERTICAL MACHINING CENTER

    • Versatile Performance: High speed, rigidity, and adaptability make the DNM Series ideal for a wide range of machining applications.
    • Eco-Friendly Operation: Grease lubrication on roller guideways promotes sustainability while maintaining top performance.
    • Compact Efficiency: Models like the DNM 4000 maximize productivity in limited spaces, with features designed for operator ease and convenience.

    Highlights

    • Travels - X Axis Travel distance (mm): 1270
    • Travels - Y Axis Travel distance (mm): 670
    • Travels - Z Axis Travel distance (mm): 625

    Control System

      Fanuc

    Series description

    The DNM Series continues its legacy of success with enhanced reliability and performance in its latest models. Focused on high speed, high rigidity, and versatility, the DNM 4500/5000/6500 models cater to a wide range of machining applications. The series now features eco-friendly grease lubrication for roller guideways, ensuring sustainable operation. The compact DNM 4000, with a 400mm Y-axis stroke and directly-coupled 40 taper spindle, maximizes productivity in a minimized footprint, perfect for space-constrained environments. The DNM 50 II series further enhances performance with directly coupled spindles, rigid columns, and user-friendly Ez work functions for improved efficiency and ease of use.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1270
    Travels - Y Axis Travel distance (mm) 670
    Travels - Z Axis Travel distance (mm) 625
    Travels - Z Axis Rapid Traverse (m/min) 30

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36

    Table

    Table Length (mm) 1300
    Table Width (mm) 670
    Max. Workpiece weight (kg) 1000
    Pallet Size (mm) 1300x670
    Max. Table weight (kg) 1000

    Workpiece capacity

    Max. Workpiece Height (mm) 636.5
    Max. Workpiece weight (kg) 1000

    Tool storage capacity

    Machining center - No. of tool station 24

    Main spindle

    Main Spindle Max. Speed 8000
    Main Spindle Max. Power 22
    Main Spindle Max. Torque 353.2
    Tool Taper (ISO) BT50

    Turret

    Turret - No. of tool station 24

    Dimensions

    Length (mm) 3250
    Height (mm) 3250
    Width (mm) 2740
    Weight (kg) 9000
      Name Download File type
    DNM 650/50 II Series
    		DNM 650_50_750_50.pdf 2821 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
