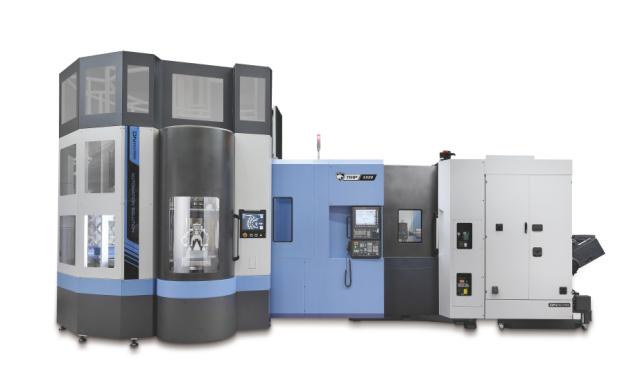

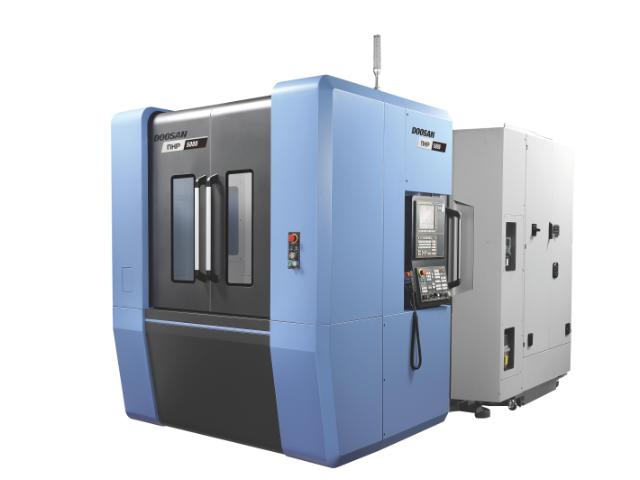

    NHP 5000

    • Unmatched Accuracy and Productivity: Thermal compensation and minimized non-cutting time ensure precise and efficient machining.
    • Enhanced Performance: Faster feed rates, tool changes, and table rotation boost productivity, especially in the NHP 5500 model.
    • Eco-Friendly and Reliable: Grease lubrication and advanced cooling systems offer sustainable operation with long-term stability and accuracy.

    Highlights

    • Travels - X Axis Travel distance (mm): 730
    • Travels - Y Axis Travel distance (mm): 730
    • Travels - Z Axis Travel distance (mm): 880

    Control System

      Fanuc

    Series description

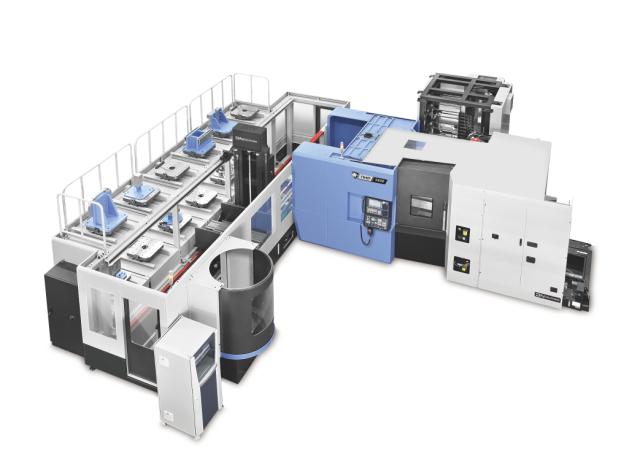

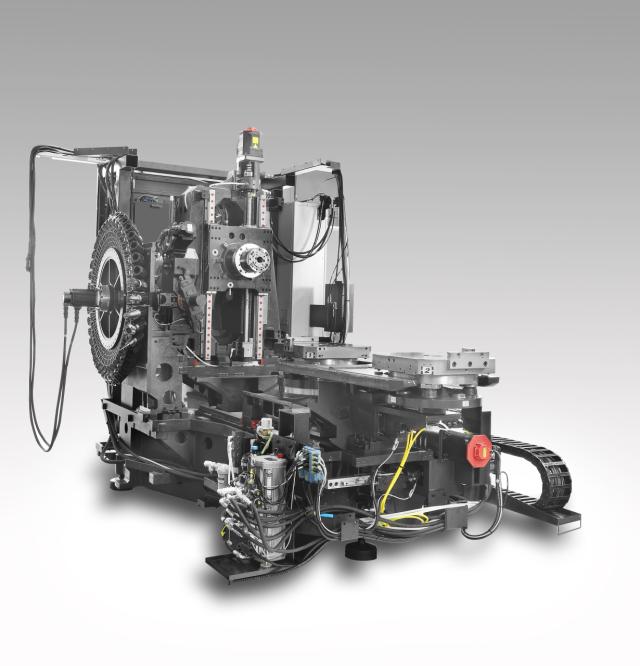

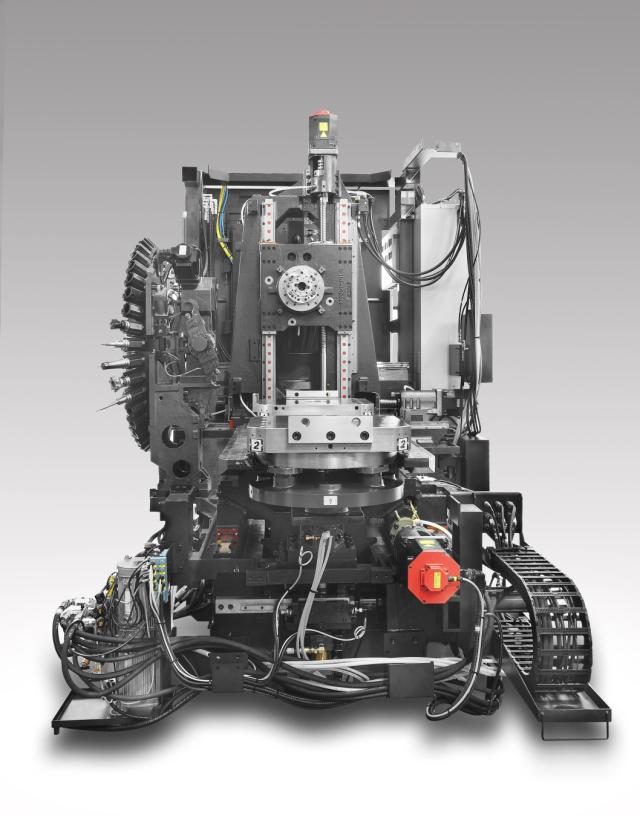

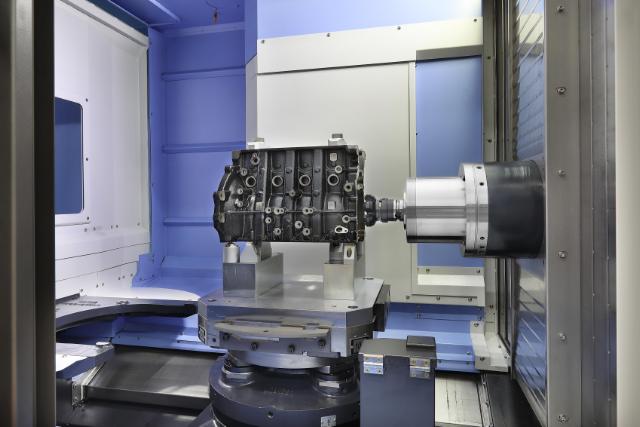

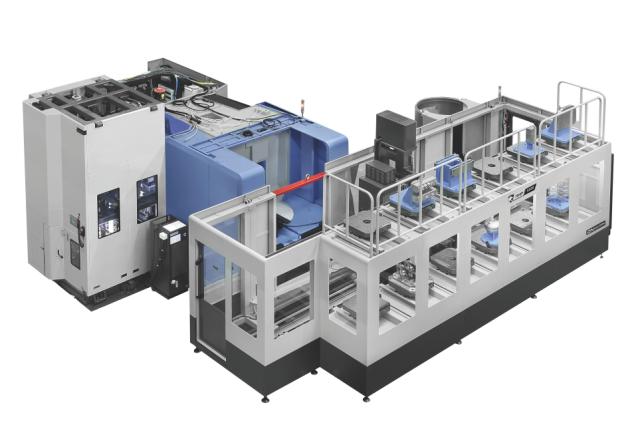

    The NHP Series, including the NHP 4000/5000 and NHP 5500 2nd models, consists of advanced horizontal machining centers known for their stable structures, thermal compensation systems, and minimized non-cutting time, delivering exceptional accuracy and productivity. These machines use eco-friendly grease lubrication for all ballscrews and are ideal for machining small to medium-sized components. The NHP 5500 2nd model further enhances productivity with faster feed rates, reduced tool change times, and improved table rotation speed. Equipped with spindle smart thermal control, cooling systems, and a 3-point support structure, it ensures superior machining accuracy and stable, continuous operation, complemented by various automation solutions and efficient chip removal.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 730
    Travels - Y Axis Travel distance (mm) 730
    Travels - Z Axis Travel distance (mm) 880
    Travels - Z Axis Rapid Traverse (m/min) 60

    Feed rates

    Feed rate - X Axis Rapid Traverse 60
    Feed rate - Y Axis Rapid Traverse 60
    Feed rate - Z Axis Rapid Traverse 60

    Table

    Max. Workpiece weight (kg) 500
    Pallet Size (mm) 500x500

    Workpiece capacity

    Max. Workpiece Diameter (mm) 800
    Max. Workpiece Height (mm) 1000
    Max. Workpiece weight (kg) 500

    Tool storage capacity

    Machining center - No. of tool station 40

    Main spindle

    Main Spindle Max. Speed 15000
    Main Spindle Max. Power 37
    Main Spindle Max. Torque 303
    Tool Taper (ISO) 40

    Turret

    Turret - No. of tool station 40

    Dimensions

    Length (mm) 5450
    Height (mm) 2880
    Width (mm) 2680
    Weight (kg) 11500
      Name Download File type
    NHP 5000
    		NHP_4000_5000 .pdf 2920 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
