    BM 2035M

    • Versatile Performance: Suitable for a range of tasks from roughing to finishing, thanks to its low-vibration built-in spindle.
    • Enhanced Efficiency: Improved design increases operational efficiency, raising overall productivity.
    • Maximum Added Value: Delivers high-quality results, providing significant value to customers' machining operations.

    Highlights

    • Travels - X Axis Travel distance (mm): 3500
    • Travels - Y Axis Travel distance (mm): 2050
    • Travels - Z Axis Travel distance (mm): 800

    Control System

      Heidenhain

    Series description

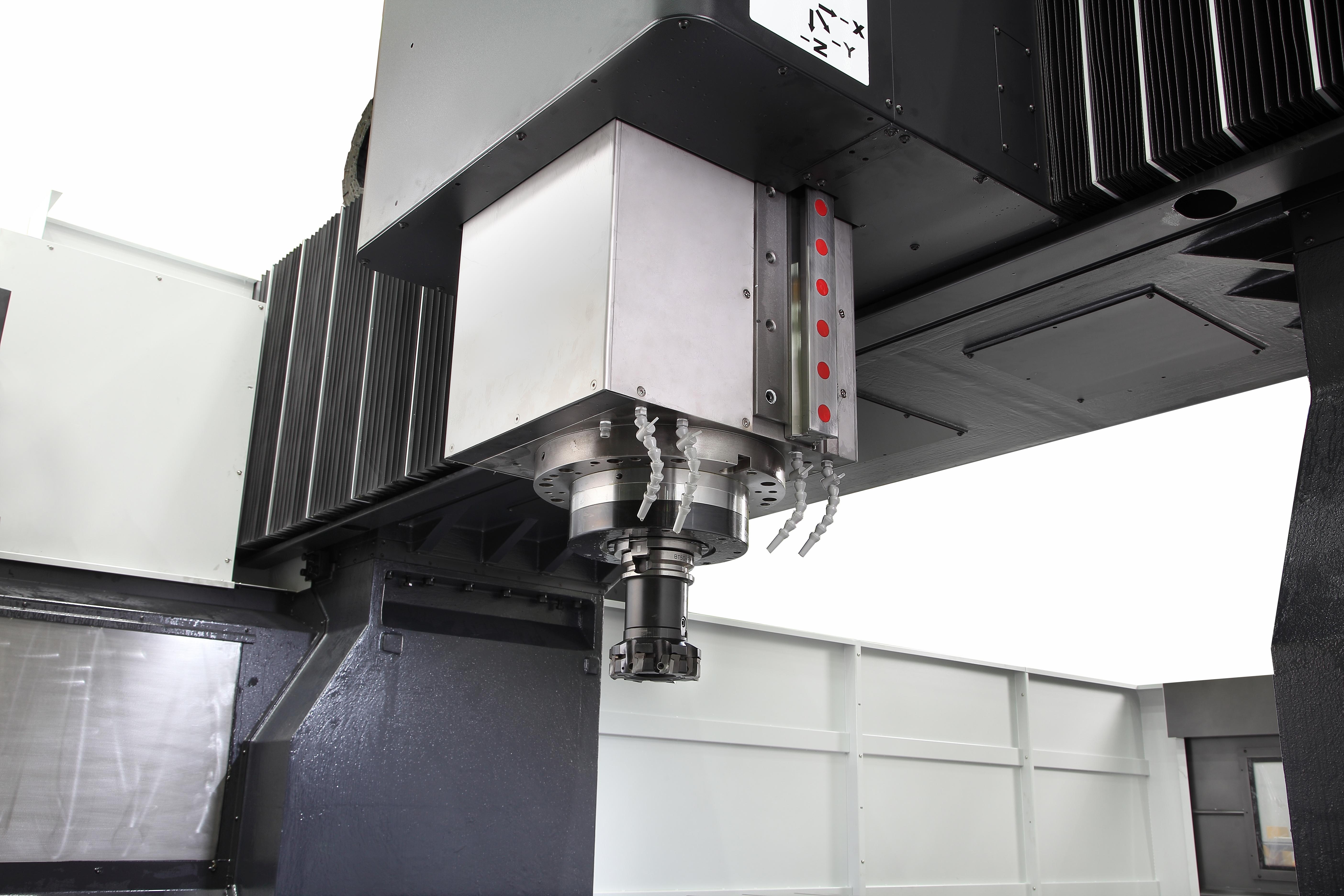

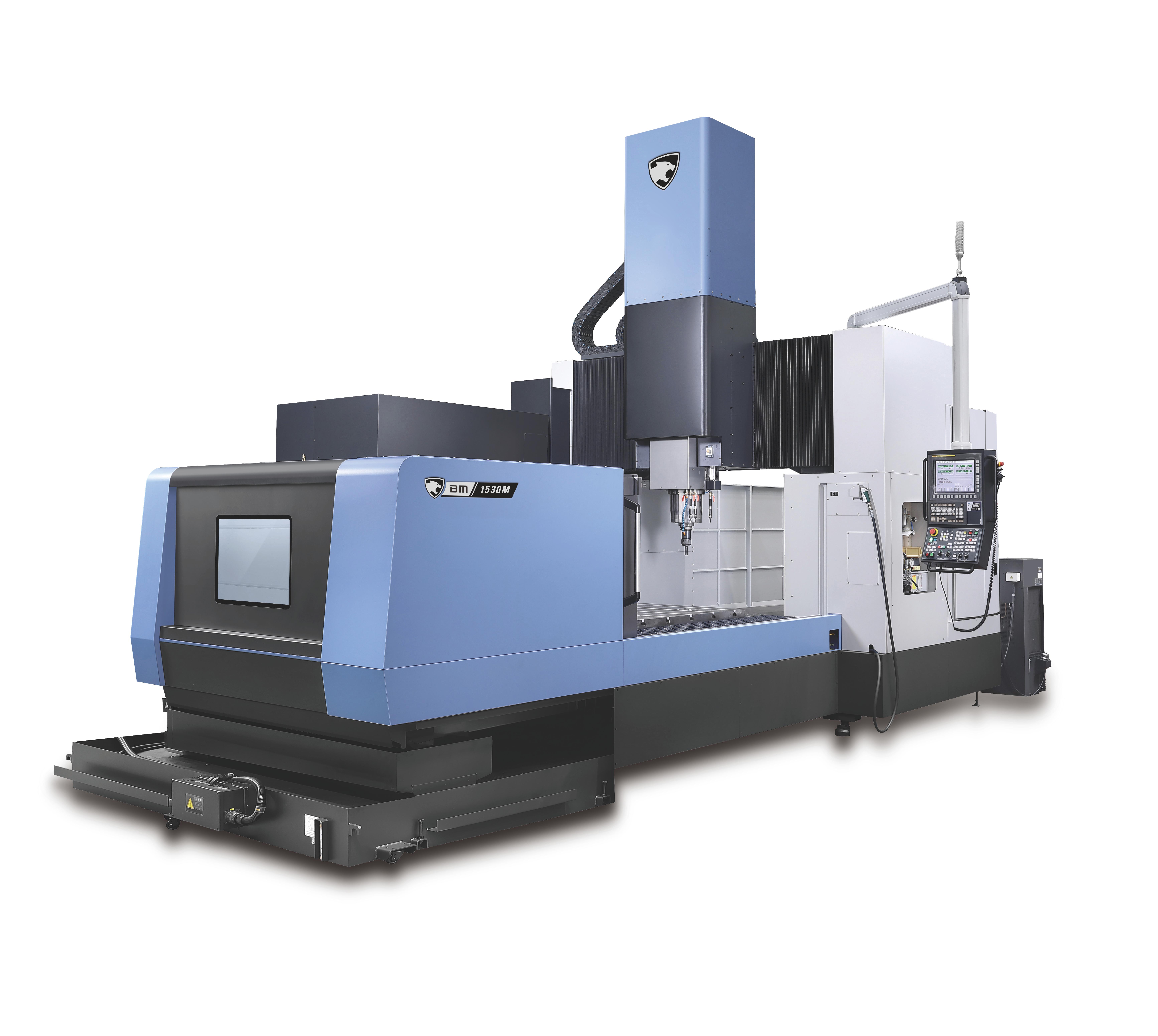

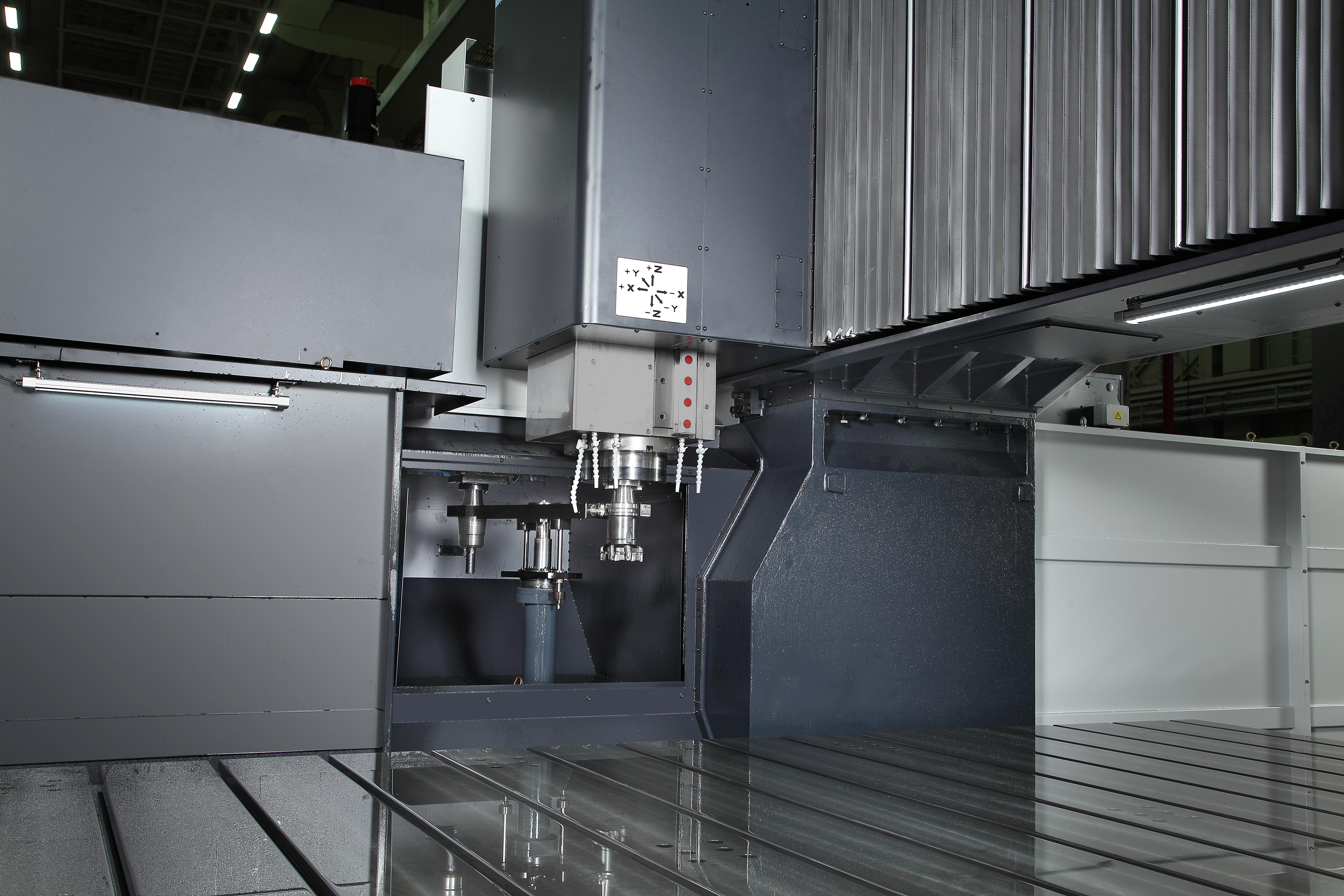

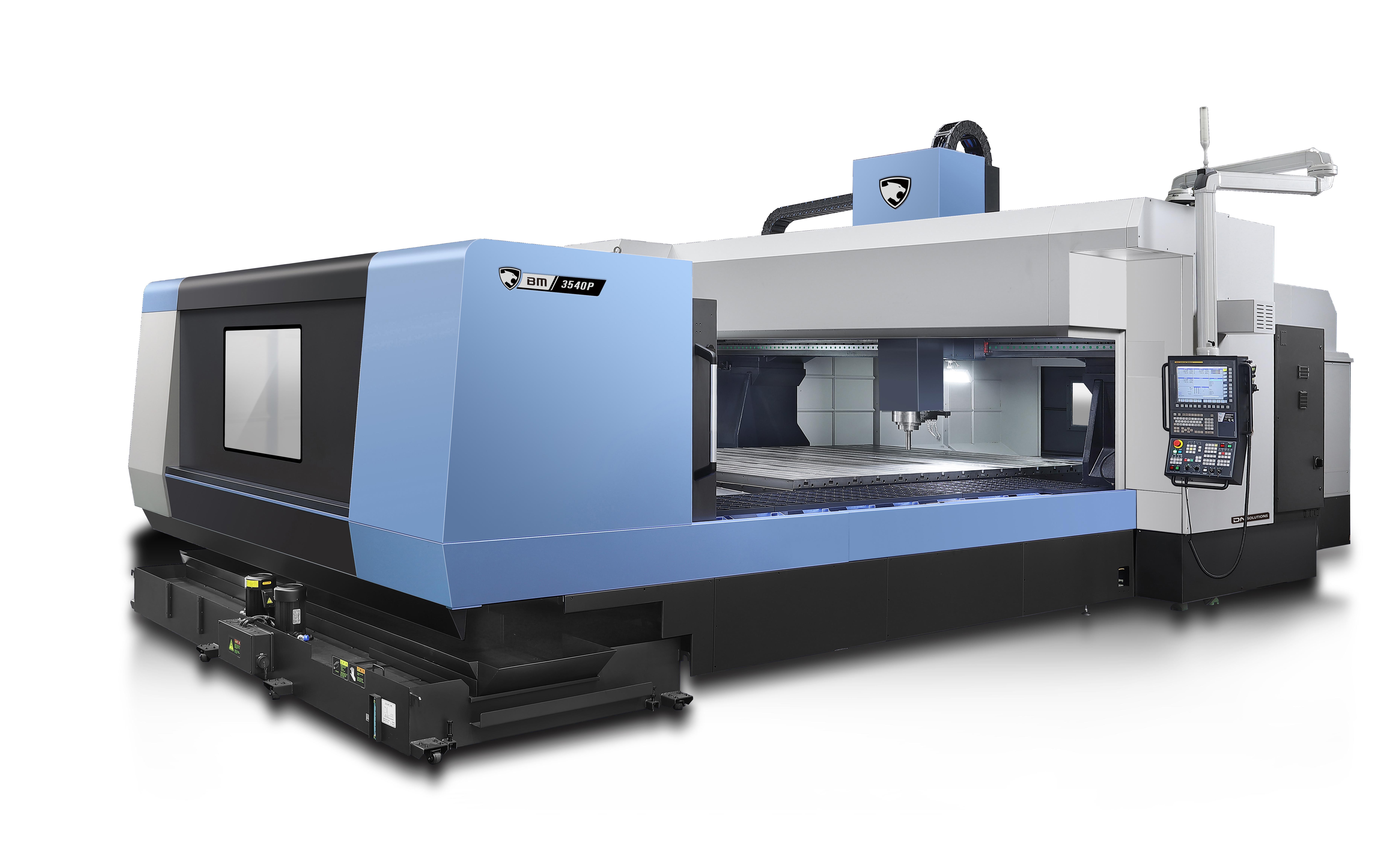

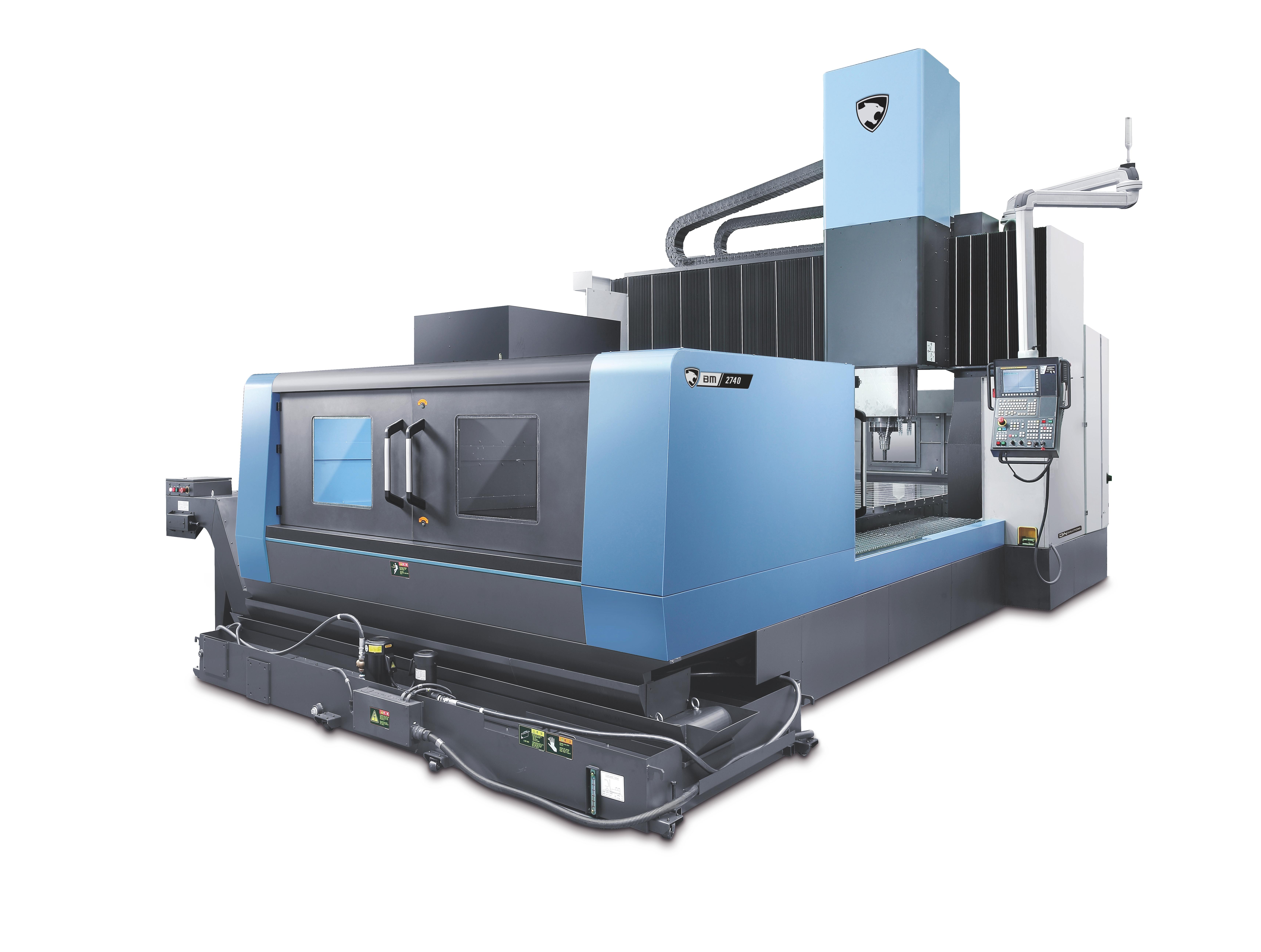

    The BM Series is a large double-column type machining center ideal for mold processing. It features a low-vibration built-in spindle, making it suitable for a range of tasks from roughing to finishing. The improved design enhances efficiency, boosting productivity and maximizing added value for customers.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 3500
    Travels - Y Axis Travel distance (mm) 2050
    Travels - Z Axis Travel distance (mm) 800

    Feed rates

    Feed rate - X Axis Rapid Traverse 16
    Feed rate - Y Axis Rapid Traverse 16
    Feed rate - Z Axis Rapid Traverse 16

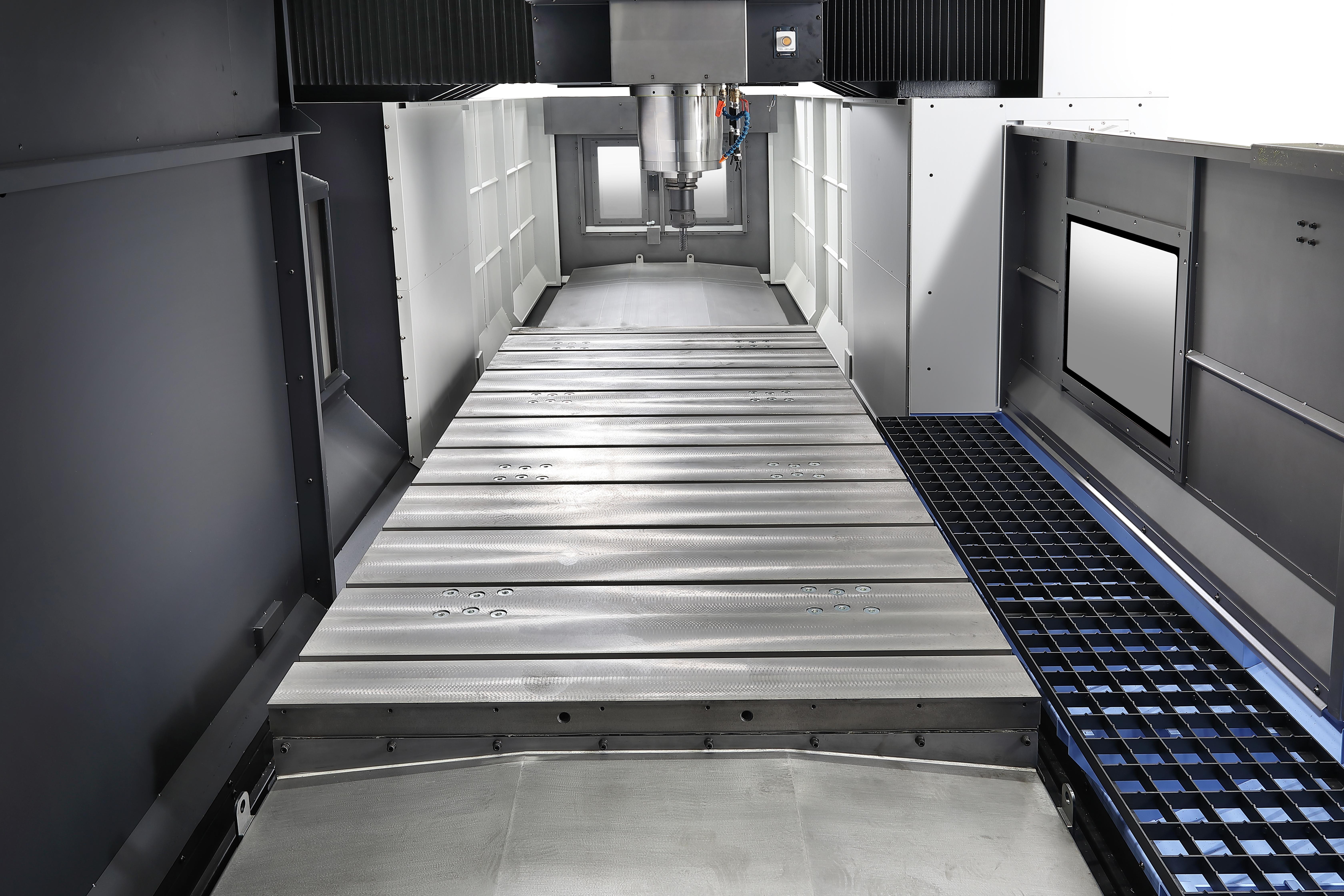

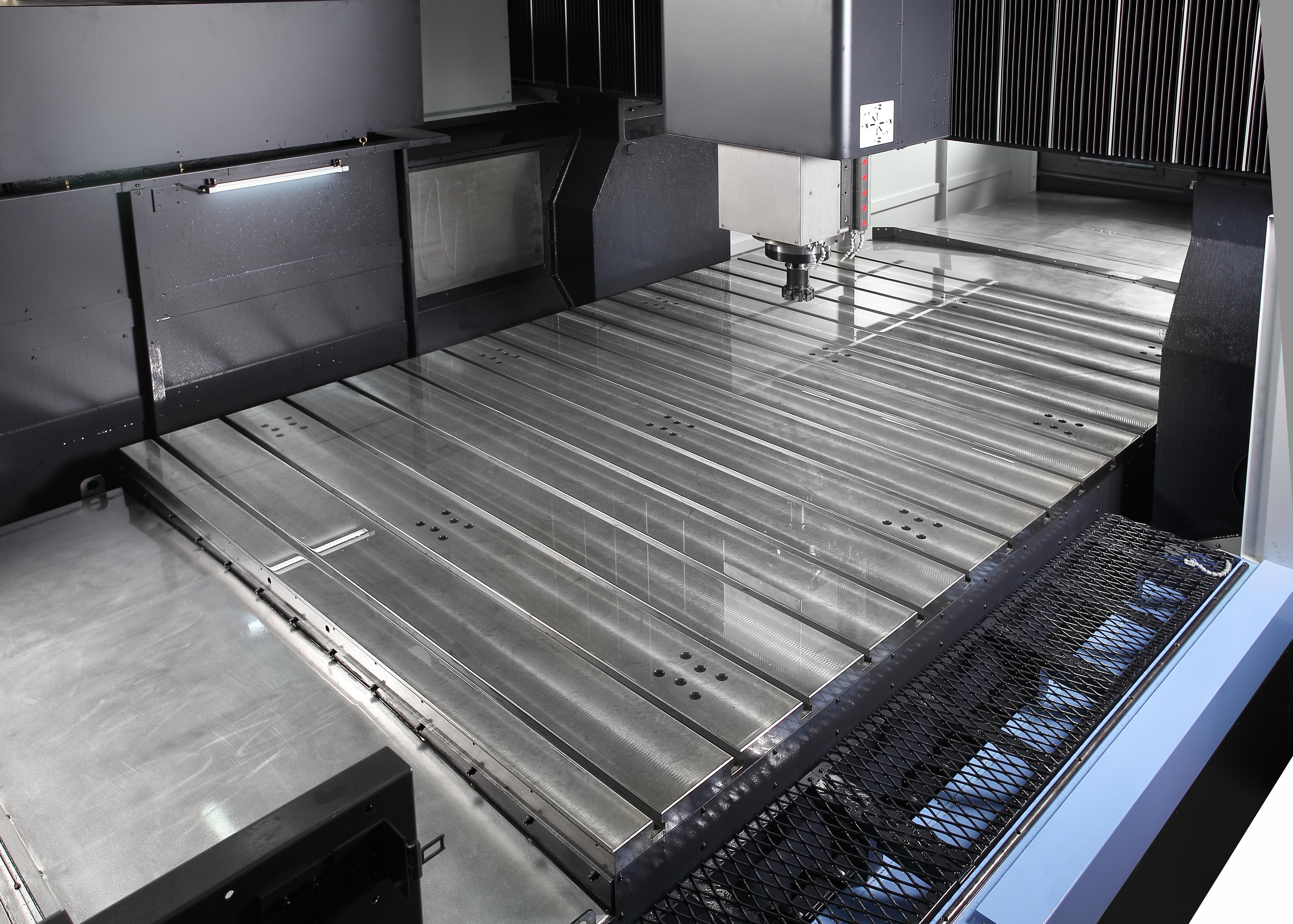

    Table

    Table Length (mm) 3500
    Table Width (mm) 1850
    Max. Workpiece weight (kg) 10000
    Max. Table weight (kg) 10000

    Workpiece capacity

    Max. Workpiece Height (mm) 1000
    Max. Workpiece weight (kg) 10000

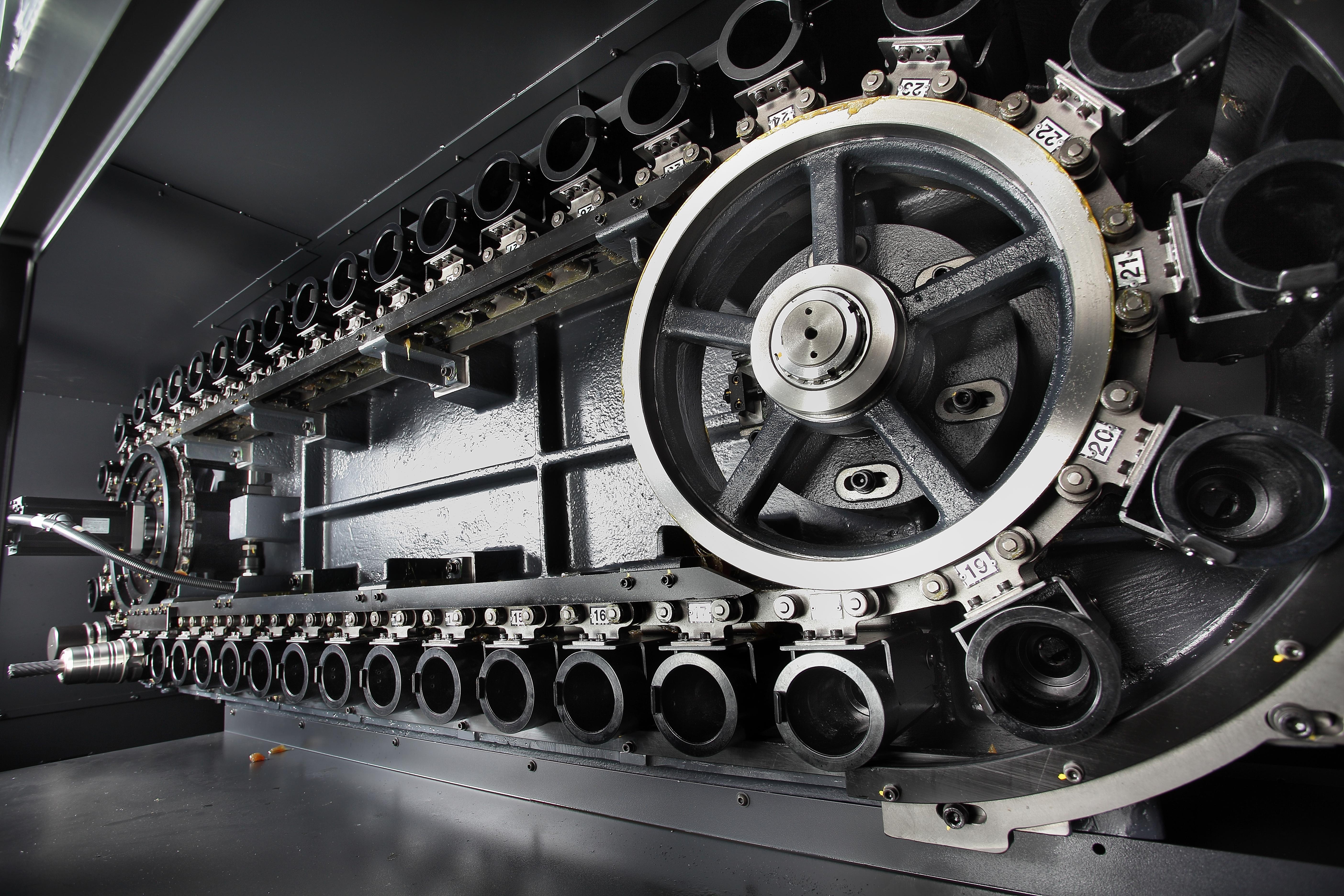

    Tool storage capacity

    Machining center - No. of tool station 40/60

    Capacity

    Table to spindle nose 1000

    Main spindle

    Tool Taper (ISO) 50

    Dimensions

    Length (mm) 4960
    Height (mm) 4770
    Width (mm) 9540
    Weight (kg) 35500
      Name Download File type
    BM 2035M
    		BM-M series .pdf 3198 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
