    DBC 110S

    • Advanced Technical Capabilities: Designed to handle a wide range of parts from mid to large sizes, including die and mold components.
    • Enhanced Productivity: Improved design features boost operational efficiency and productivity.
    • User-Friendly Operation: Enhanced operating convenience ensures ease of use and increased efficiency for users.

    Highlights

    • Travels - X Axis Travel distance (mm): 2000
    • Travels - Y Axis Travel distance (mm): 1500
    • Travels - Z Axis Travel distance (mm): 1200

    Control System

      Fanuc

    Series description

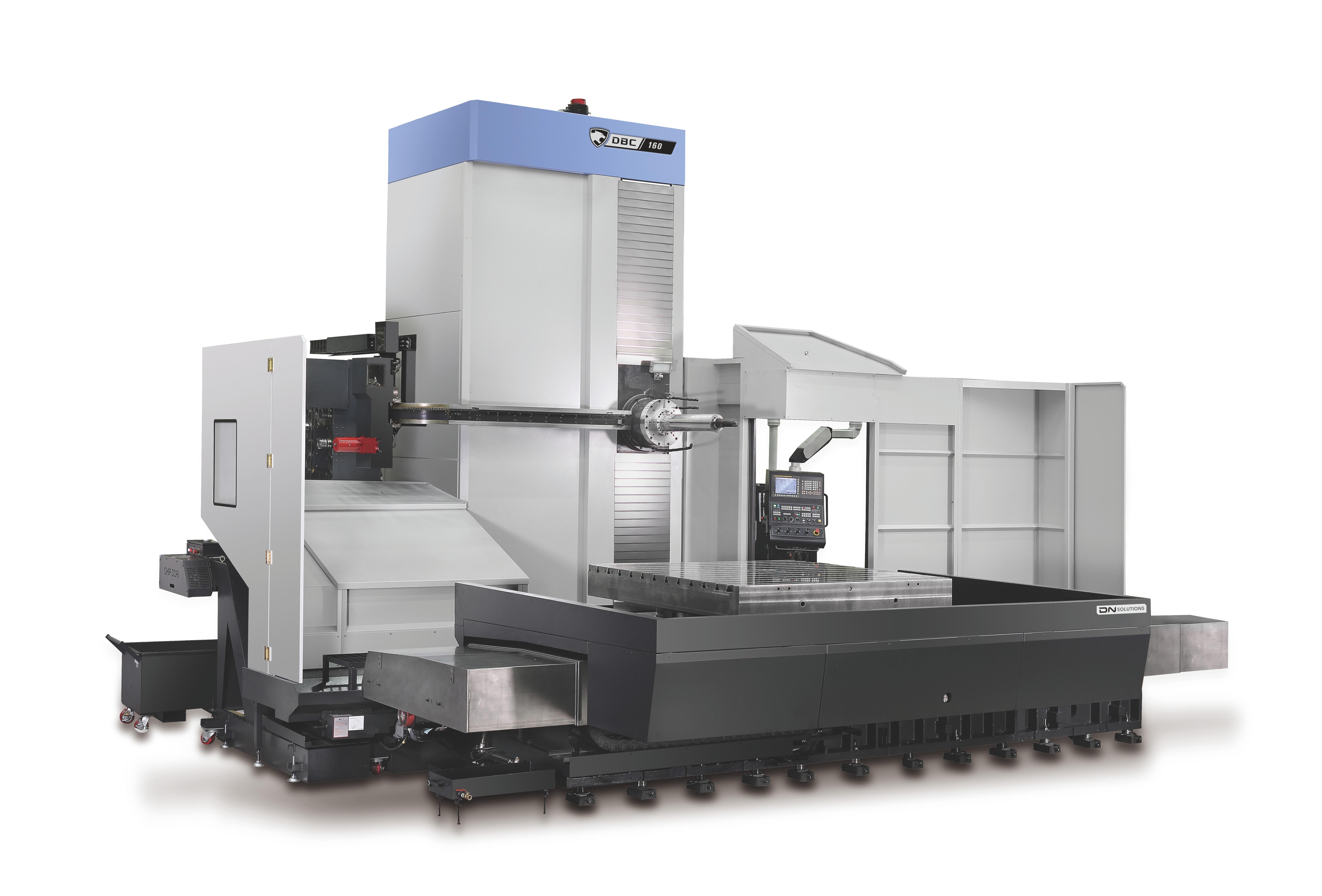

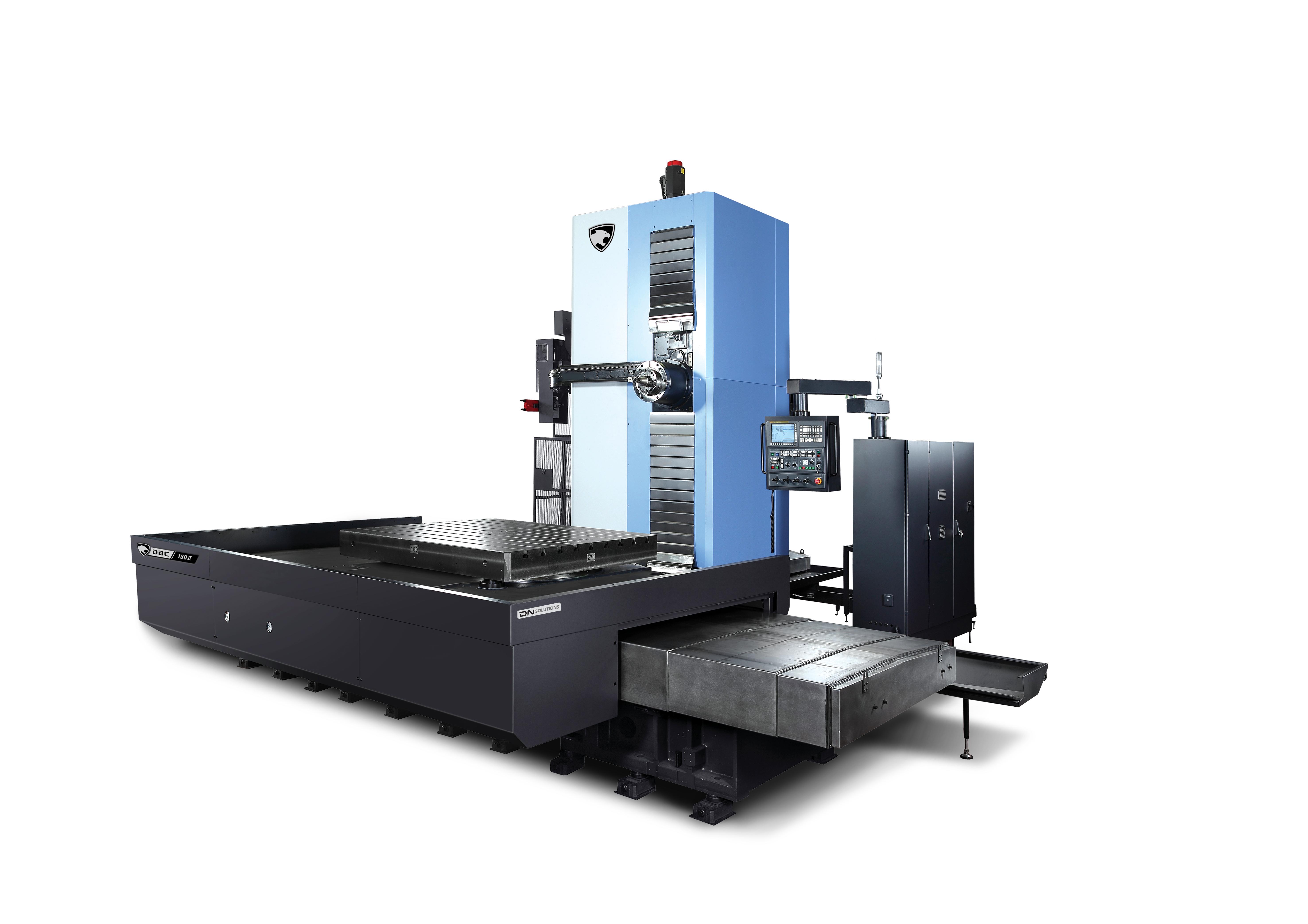

    The DBC series, ranging from compact to super-size models, meets diverse customer needs with advanced technical capabilities. Designed for processing mid to large-size parts, including die and mold components, the series enhances productivity and adds value through improved design, operating convenience, and efficiency.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 2000
    Travels - Y Axis Travel distance (mm) 1500
    Travels - Z Axis Travel distance (mm) 1200
    Travels - Z Axis Rapid Traverse (m/min) 12

    Feed rates

    Feed rate - X Axis Rapid Traverse 12
    Feed rate - Y Axis Rapid Traverse 12
    Feed rate - Z Axis Rapid Traverse 12

    Table

    Table Length (mm) 1600
    Table Width (mm) 1400
    Max. Workpiece weight (kg) 7000
    Max. Table weight (kg) 7000

    Workpiece capacity

    Max. Workpiece Diameter (mm) 2100
    Max. Workpiece weight (kg) 7000

    Tool storage capacity

    Machining center - No. of tool station 40/60/90

    Capacity

    Table to spindle nose 1750

    Main spindle

    Main Spindle Max. Speed 3000
    Main Spindle Max. Power 26
    Main Spindle Max. Torque 1104
    Tool Taper (ISO) 50

    Turret

    Turret - No. of tool station 40/60/90

    Dimensions

    Length (mm) 5540
    Height (mm) 4200
    Width (mm) 5920
    Weight (kg) 29000
