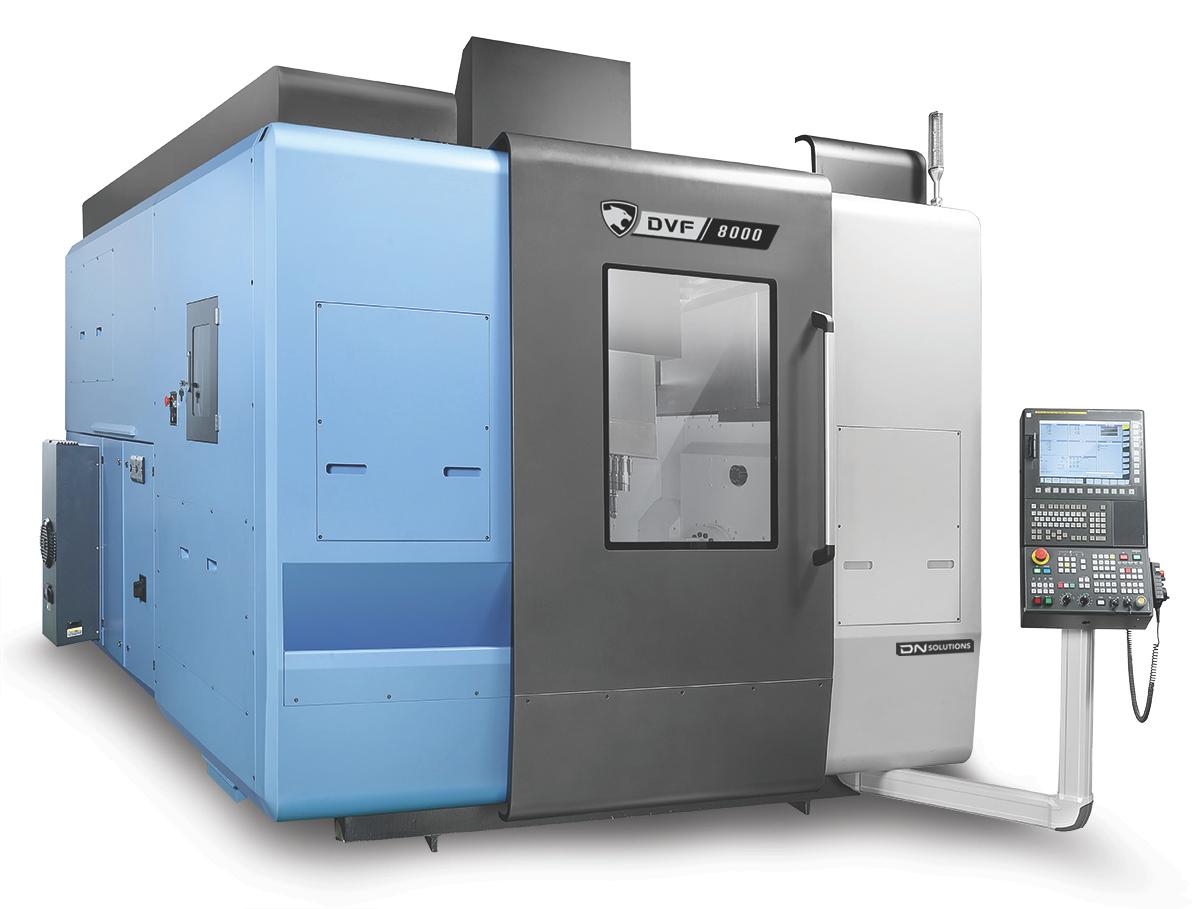

DVF 8000 Series
- High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
- Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
- Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.
Highlights
- Travels - X Axis Travel distance (mm): 1000
- Travels - Y Axis Travel distance (mm): 900
- Travels - Z Axis Travel distance (mm): 685
Control System
Series description
|
The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 900 |
| Travels - Z Axis Travel distance (mm) | 685 |
| Travels - Z Axis Rapid Traverse (m/min) | 45 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 45 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 45 |
Table
| Max. Workpiece weight (kg) | 1400 |
|---|
Workpiece capacity
| Max. Workpiece Diameter (mm) | 1000 |
|---|---|
| Max. Workpiece Height (mm) | 590 |
| Max. Workpiece weight (kg) | 1400 |
Tool storage capacity
| Machining center - No. of tool station | 40 |
|---|
Main spindle
| Main Spindle Max. Speed | 12000 |
|---|---|
| Main Spindle Max. Power | 22 |
| Main Spindle Max. Torque | 204 |
| Tool Taper (ISO) |
Turret
| Turret - No. of tool station | 40 |
|---|
Dimensions
| Length (mm) | 4097 |
|---|---|
| Height (mm) | 3670 |
| Width (mm) | 2950 |
| Weight (kg) | 14500 |
| Name | Download | File type | |
|---|---|---|---|
|
DVF_6500-8000-8000T.pdf | 6115 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
