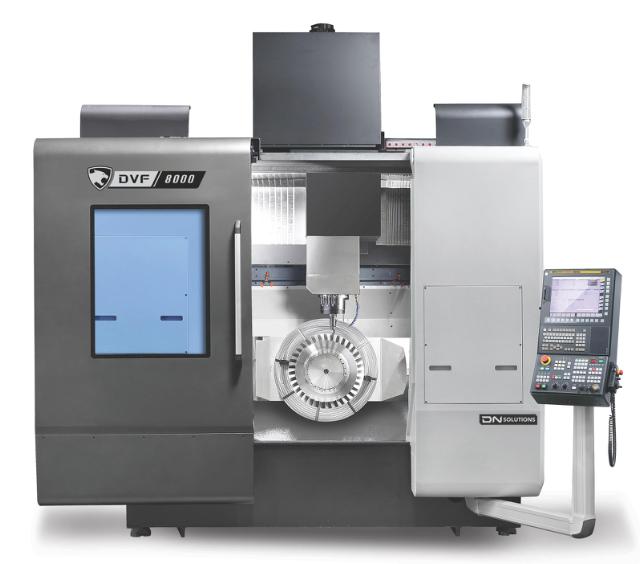

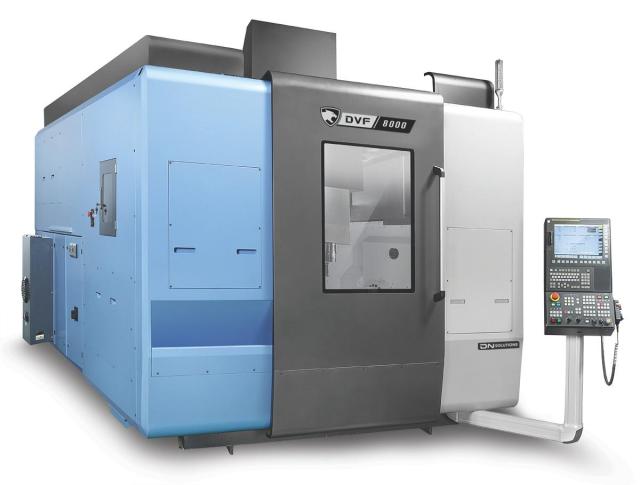

    DVF 8000

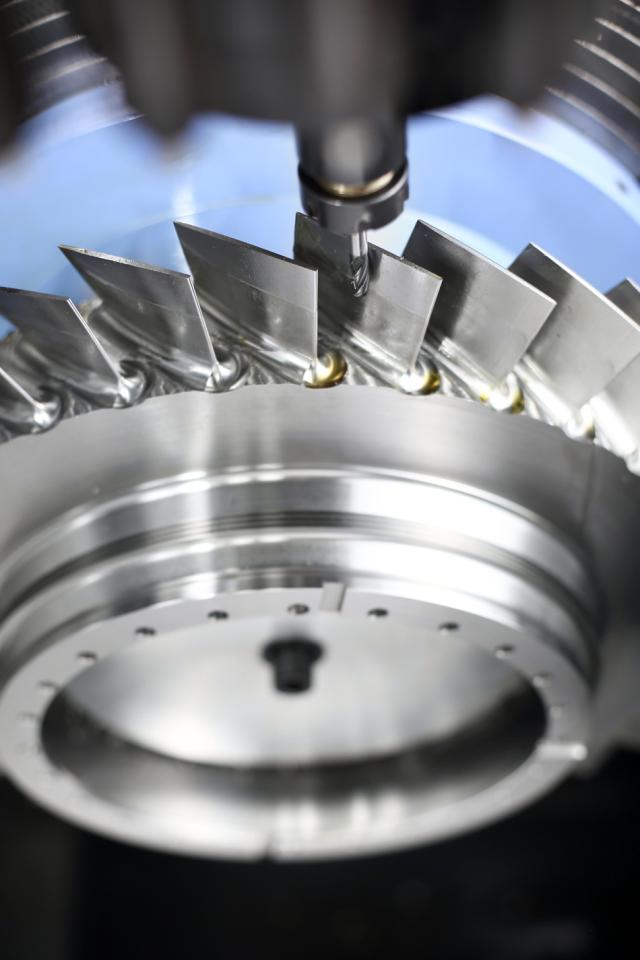

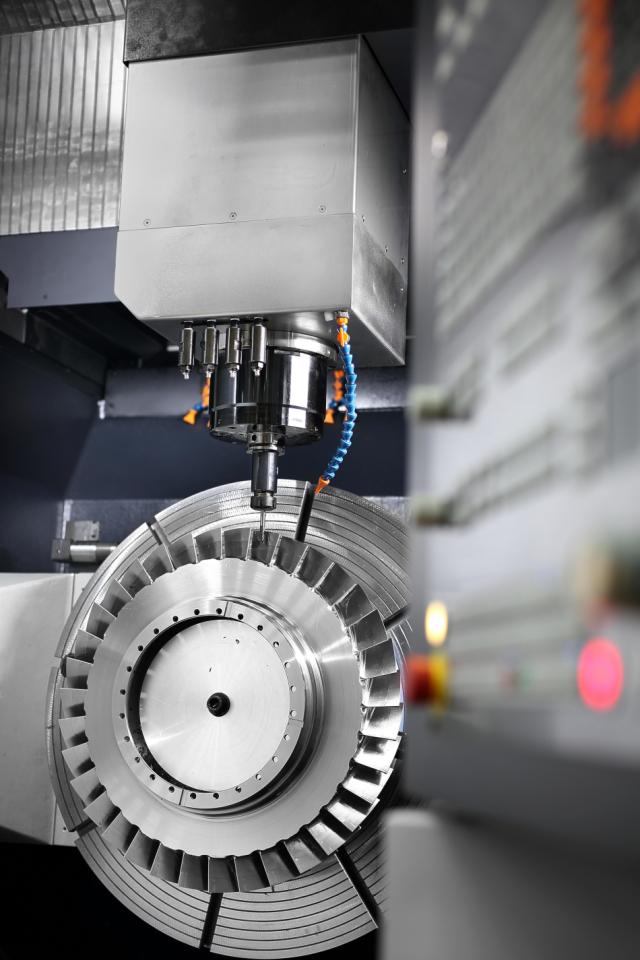

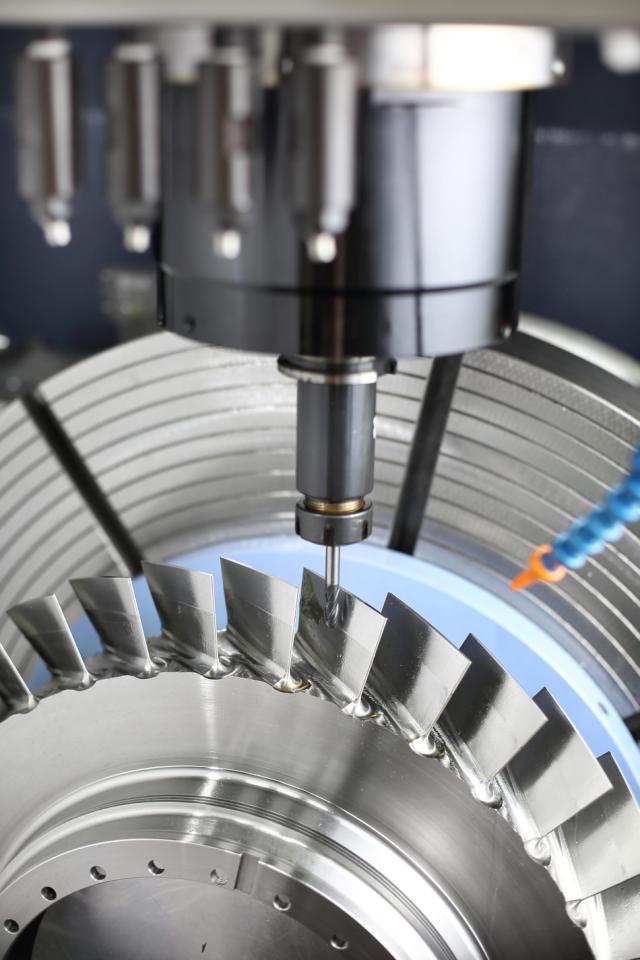

    • High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
    • Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
    • Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.

    Highlights

    • Travels - X Axis Travel distance (mm): 1000
    • Travels - Y Axis Travel distance (mm): 900
    • Travels - Z Axis Travel distance (mm): 685

    Control System

      Heidenhain

    Series description

    The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1000
    Travels - Y Axis Travel distance (mm) 900
    Travels - Z Axis Travel distance (mm) 685
    Travels - Z Axis Rapid Traverse (m/min) 45

    Feed rates

    Feed rate - X Axis Rapid Traverse 45
    Feed rate - Y Axis Rapid Traverse 45
    Feed rate - Z Axis Rapid Traverse 45

    Table

    Table Length (mm) dia 800
    Table Width (mm) dia 800
    Max. Workpiece weight (kg) 1400
    Pallet Size (mm) dia 800
    Rotary Table Diameter (mm) 800
    Max. Table weight (kg) 1400

    Workpiece capacity

    Max. Workpiece Diameter (mm) 1000
    Max. Workpiece Height (mm) 590
    Max. Workpiece weight (kg) 1400

    Tool storage capacity

    Machining center - No. of tool station 40/60/120

    Capacity

    Table to spindle nose 840

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 22
    Main Spindle Max. Torque 204
    Tool Taper (ISO) 40

    Turret

    Turret - No. of tool station 40

    Dimensions

    Length (mm) 4097
    Height (mm) 3670
    Width (mm) 2950
    Weight (kg) 25000
      Name Download File type
    DVF 8000
    		DVF_6500-8000-8000T.pdf 6115 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
