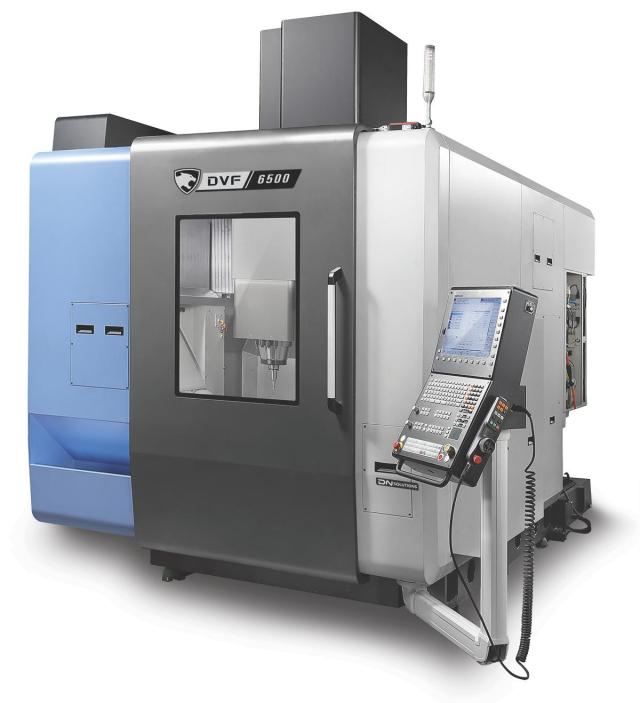

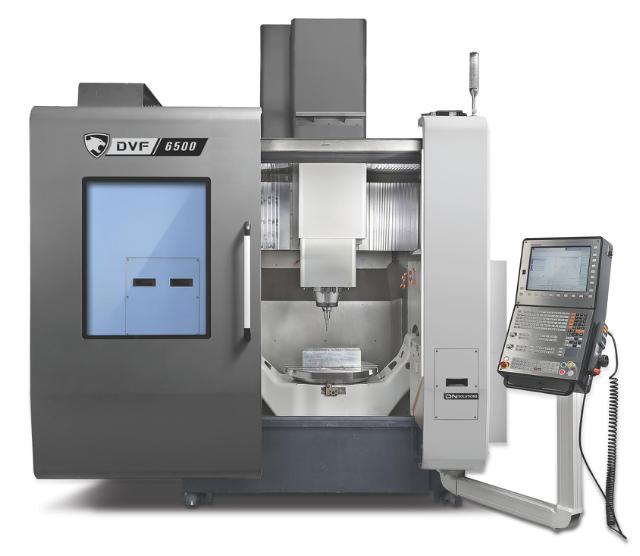

    DVF 6500

    • High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
    • Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
    • Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.

    Highlights

    • Travels - X Axis Travel distance (mm): 750
    • Travels - Y Axis Travel distance (mm): 785
    • Travels - Z Axis Travel distance (mm): 600

    Control System

      Heidenhain

    Series description

    The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 750
    Travels - Y Axis Travel distance (mm) 785
    Travels - Z Axis Travel distance (mm) 600
    Travels - Z Axis Rapid Traverse (m/min) 45

    Feed rates

    Feed rate - X Axis Rapid Traverse 45
    Feed rate - Y Axis Rapid Traverse 45
    Feed rate - Z Axis Rapid Traverse 45

    Table

    Table Length (mm) dia 650
    Table Width (mm) dia 650
    Max. Workpiece weight (kg) 600
    Pallet Size (mm) dia 650
    Rotary Table Diameter (mm) 650
    Max. Table weight (kg) 600

    Workpiece capacity

    Max. Workpiece Diameter (mm) 840
    Max. Workpiece Height (mm) 500
    Max. Workpiece weight (kg) 600

    Tool storage capacity

    Machining center - No. of tool station 40/60/90/120

    Capacity

    Table to spindle nose 710

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 30
    Main Spindle Max. Torque 155
    Tool Taper (ISO) 40

    Turret

    Turret - No. of tool station 40

    Dimensions

    Length (mm) 3700
    Height (mm) 3100
    Width (mm) 2450
    Weight (kg) 14500
      Name Download File type
    DVF 6500
    		DVF_6500-8000-8000T.pdf 6115 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
