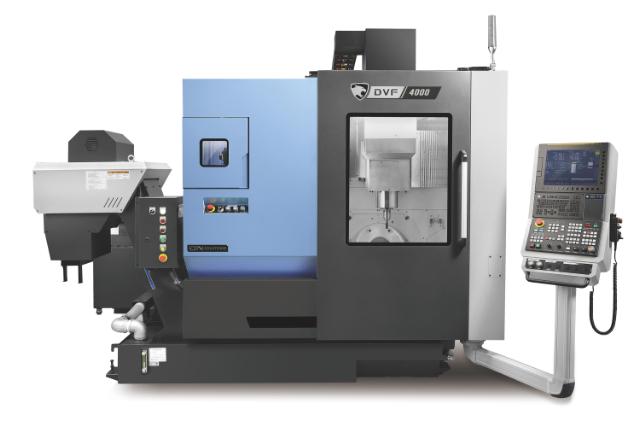

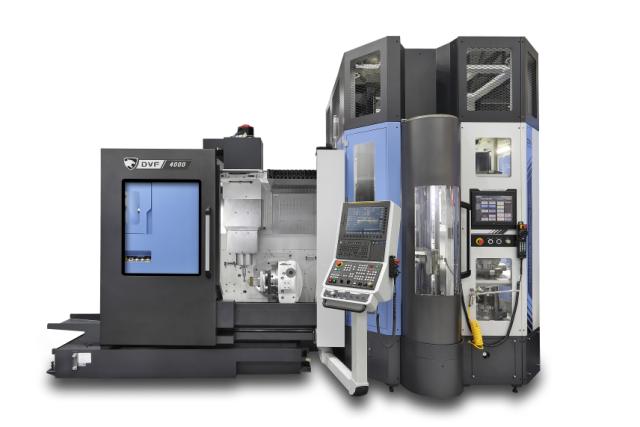

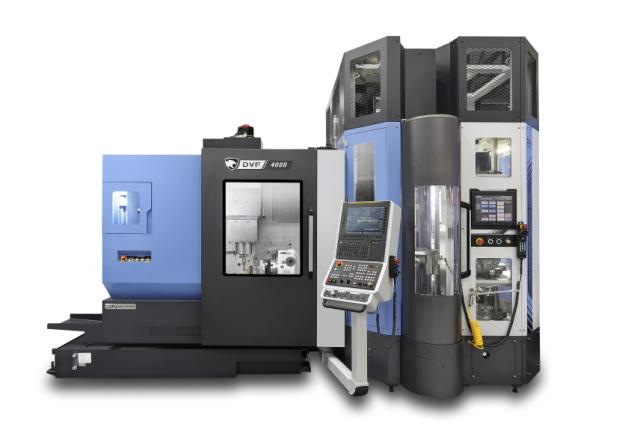

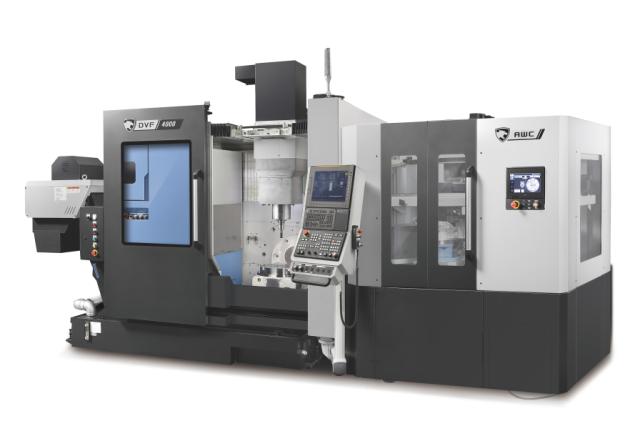

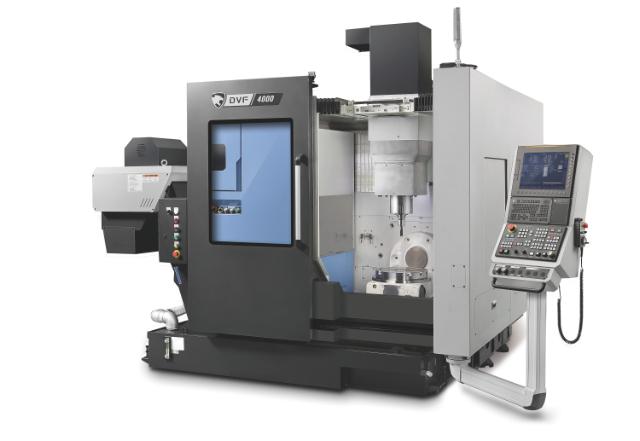

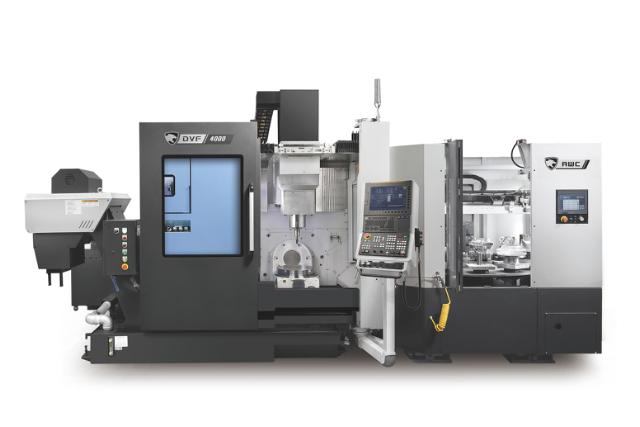

    DVF 4000

    • High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
    • Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
    • Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.

    Highlights

    • Travels - X Axis Travel distance (mm): 620
    • Travels - Y Axis Travel distance (mm): 440
    • Travels - Z Axis Travel distance (mm): 430

    Control System

      Siemens

    Series description

    The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 620
    Travels - Y Axis Travel distance (mm) 440
    Travels - Z Axis Travel distance (mm) 430

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36
    Feed rate - Z Axis Rapid Traverse 36

    Table

    Table Length (mm) dia 400
    Table Width (mm) dia 400
    Max. Workpiece weight (kg) 200
    Pallet Size (mm) dia 400
    Rotary Table Diameter (mm) 400
    Max. Table weight (kg) 200

    Workpiece capacity

    Max. Workpiece Diameter (mm) 500
    Max. Workpiece Height (mm) 480
    Max. Workpiece weight (kg) 200

    Tool storage capacity

    Machining center - No. of tool station 30/40/60/120

    Capacity

    Table to spindle nose 530

    Main spindle

    Tool Taper (ISO) 40

    Dimensions

    Length (mm) 2750
    Height (mm) 2760
    Width (mm) 2205
    Weight (kg) 7500
      Name Download File type
    DVF 4000
    		DVF_4000.pdf 3308 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
